In the position of convention-based machining business areas, stainless steel end mills are effective equipment that improves both the surface finish and the accuracy. This guide highlights the specific features and benefits of stainless steel end mills by discussing these tools’ materials, geometry, and industry applications. In reading this book, they will deeply understand the technical specifications, how to use them, and how machining processes, tool life, and production efficiency can be improved. No matter what strategy you are implementing for working in this field, if one employs any of the strategies afforded in this guide on using stainless steel end mills, one cannot go wrong.
What is an End Mill and How Does it Work?
Understanding the Basic Functions of an End Mill
An end mill is a tool incorporated into the milling processes to eliminate material in a workpiece. It consists of several flutes or cutting edges and works by rotating and cutting them as they turn through the workpiece. First, end cutters or mills fulfill the following primary internal and external operations, achieving reasonable precision by working with materials’ shapes and sizes – slotting, shaping, and contouring. Apart from cutting vertically like drill bits, a milling cutter can cut both horizontally and vertically in manufacturing. Further, some of their designs, such as high helix angles or tapered geometries, enhance better chip removal and surface finish quality. It is crucial to grasp such characteristics to choose an end mill suitable to the case.
Soorten eindfrezen en hun toepassingen
As we know, end mills can come in various designs from the perspective of the metal being cut to the task. Here are some of the most common types, along with their applications:
- Square End Mills: These are flat-ended mill cuts mostly employed in general milling operations, including, but not limited to, the production of slots and pockets and cutting to specific depths. They are usually used with a great number of machined materials, including steel, aluminum, and plastics.
- Ball-nose end Mills: These end mills are round-headed and very useful in 3-dimensional milling and surface finishing. They can form complex surfaces, such as those found in titanium and composite materials, often used for mold and die applications.
- Corner Radius End Mills: Square end mills with round corners have more abrasive resistance due to more tool engagement; hence, less chipping occurs. They are highly recommended for finishing operations and work on materials requiring stricter tolerances, such as hard steels.
- Tapered End Mills: These end mills are made in a tapered shape to help in cutting angled recesses and also function in cutting drafts in molds. They are usually used in the aerospace and automobile industries where unnecessary shapes exist.
- Roughing End Mills: These have been designed to offer stock removal capabilities where aggression is the key. Their special design ensures that material is removed as fast and as effectively as possible, making them ideal for the first cuts on hard materials, resulting in better overall machining performance.
Each type of end mill has a specific application in machining, which extends the options available to operators when they need to use a certain tool for a particular application to realize the best operational results. Even though each type has its defined role, knowledge of these types and their functions is essential for effective machining operations.
Hoe kiest u de juiste frees voor uw project?
Choosing the right end mill for your work should be done logically and with reasonable deliberation, considering things such as the shank type and cutter type. First of all, determine what material you will process because an end mill is designed to work efficiently with certain types of materials. For softening materials, you can use those made of high-speed steel (HSS), while for harder metals, use carbide tools. Then, consider the type of cut you need; for example, when sharp edges are not enough, and complex shapes need to be created, a ball nose end mill or a helical end mill would be the best. In addition, focus on the required finishing type; outer corners on radius end mills do better in terms of surface quality for tighter tolerance surfaces. In the final stage, consider the capabilities and recommended speeds for using the end mill; it is similar to the operational characteristics recommended for the milling machine with which the selected end mill operates. Careful consideration of these factors will significantly enhance machining efficiency and quality in your projects, especially when using high-performance end mills.
Why Use Stainless Steel in Machining?
Advantages of Using Stainless Steel
No wonder stainless steel has been considered remarkable due to its superior properties and is most significantly utilized in machine applications such as with high-performance end mills. First and foremost, its astonishing ability to withstand corrodents enables working components made out of resin to be protected even when exposed to moisture and corrosive elements, thereby improving the operational life of the machined parts. Further, stainless steel also has a high aluminum content, which provides needed parts that are unlikely to fail under high stress and pressure. These are critical in the aerospace and automotive industries.
In addition, machining stainless steel is not as complicated as machining other materials owing to its good machining characteristics, and thus, accurate machining of shapes is easy. Lastly, because of its clear and smooth surface after being machine-finished, stainless steel becomes one of the materials in products that have to be presentable, such as kitchen devices and surfaces or building materials. As a result, it is clear why stainless steel has been in the core of modern machining implants.
Challenges When Cutting Stainless Steel
When it comes to producing goods, there are not many domains that are as complicated as that of stainless steel cutting. Some challenges must be handled around precision and efficiency when cutting stainless steel. One major concern is that of tool wear; the toughness associated with cutting stainless steel can sometimes lead to more frequent tool wear than expected, thus requiring even better and more resistant materials like cobalt or carbide. As much as stainless steel things can be machined, their high thermal conductivity makes it possible for excess heat to be generated in the machining process. A situation like this is known as work hardening, making it even harder for machinists to do their work.
Also, both cutting speed and feed rate need to be contained; if, for example, these are not within the required range, then that is seen to worsen to wear and lift surface finish problems. In addition, and worsen the situation, cutting of austenitic stainless steel is prone to galling between the tool and the workpiece, and then the performance and accuracy of the work are compromised. Finally, the use of lubricants is aimed at preventing excessive friction and heat, which will improve the efficiency of cutting while extending the tool’s life. Addressing these issues requires significant time investment and targeted use of available tool variations and concepts to produce successful machining processes.
Tips for Effective Cutting of Stainless Steel
- Select the Right Cutting Tools: High-speed steel (HSS) tools or carbide tool inserts purposely used to cut stainless steel can greatly increase cutting efficiency. The tools used must be properly sharpened and maintained to reduce any forms of degradation and increase accuracy.
- Optimize Cutting Parameters: It is also vital to vary the feed rate and the cutting speed. In most cases, slower cutting speeds and higher feed rates are recommended when machining stainless steel to generate minimal heat, but an appreciable metal cutting rate is achieved.
- Utilize Adequate Lubrication and Cooling: Proper lubrication aids, such as cutting fluids or coolant, lower friction and remove heat generated in the cutting zone. Thus, cutting processes become effective, and the life of the tools is increased.
- Control Work Hardening: Machinists should always ensure that high cutting temperatures are avoided and adequate tool engagement is provided to counteract work hardening. This problem can be tackled with some ease by constantly examining tool wear and changing the approach angle as needed.
- Maintain Stable Machine Settings: Rigid and stable machining setups will reduce vibrations and, thus, inaccuracies, which can cause further tool wear. A proper clamping system that holds pieces of work firmly owing to the stresses induced is also requisite for accurate cuts.
Using these recommendations, machinists can be more efficient while processing stainless steel, prolong tool life, and create the highest-quality surface finishes.
How to Improve Cutting Performance with End Mills?
Optimizing Speed and Feed Rates
For end mills, both the cut speed and the feed rates must be optimized to enhance the cutting effectiveness and prolong the life of the tools in service. The following factors should be well attended to:
- Determination of Cutting Speed: This depends on the material, the diameter of the carbides, and the machine in use. Usually, stainless steel SFM has been determined to fall between 70 and 100 based on the diameter of a tool.
- Modification of Feed Rate: Metric measurements of the feed rate (IPM) in inches per minute should consider the flutes or number of teeth on the end mills and the strength of materials. The feed per cutter for stainless steel could be in the range of 0.002 to 0.006 inches per cutter, which enhances chip removal and does not increase heat.
- Cutting speed and feed combination: The combination of cutting speed and feed rate has to be considered keenly, striving to achieve the cutting operation’s effectiveness and the tool’s durability. Increasing cutting feed rates may assist in removing the chips and reducing heat generation, but cutting speed may have to be altered in relation to the cutting tool to avert tool vibration and wear.
- Monitoring Tool Performance: The end mill’s periodic inspection performance must also be duly noted. Excessive tool heating, excessive tool wear, and negligence of surface finish require reassessing established speed and feed rates, which may need slight adjustment to best operating conditions.
Adhering to these guidelines will, in turn, enable machinists to cut efficiently with end mills while prolonging the life of these tools and ensuring better quality of work, especially with helical endmills.
Importance of Coolant in Cutting Stainless
The use of coolant is indispensable while machining stainless steel as it influences the tool and the quality of the product manufactured. Primary functions include:
- Heat Reduction: As with other materials cut, stainless steels are expected to have a heat generation problem because of their delicate state and their capability of work hardening. A well-applied coolant removes heat from the cutting zone, which causes excessive wear and damages the accuracy of the material.
- Chip Removal: Coolants serve the following useful functions. In this case, they flush away chips and debris that accumulate in the cutting area so that vision on the cutting tool is not hindered. An efficient cutting technique is achieved since the chances for re-cutting chips, which may damage the cut surface and deplete cutter life, are reduced.
- Surface Finish Improvement: Coolant application improves surface finishes by relieving the workpiece of large amounts of thermal expansion and distortion. This is very critical in tight tolerance machining, where surface and cutting tool life are critical.
The right choice of coolant type and flow rates can maximize machining productivity and cut down tool consumption while achieving good surface finishing in stainless steel machining.
Choosing the Right Cutting Tool Coatings
Employing the correct cutting tool coating is necessary to enhance utility, prevent damage to the tool, and result in improved machining outcomes. This is not arbitrary, and there are some procedures for selecting the appropriate coating:
- Material Compatibility: This explains the determinism factor by coating. Titania is more appropriate when machining ferrous materials because of its hardness and wear properties, while titanocarbide is the coating of choice when machining nonferrous metals owing to its lower friction.
- Temperature Resistance: The most obnoxious conditions for coatings are high temperatures that occur during machining. CVD coatings have high thermal durability and allow good properties at high speeds of error cutting, while PVD coatings break restriction surface friction, causing many materials to be relatively soft.
- Application Environment: The application of structural steel in machining encompasses effective consideration of the working temperature. For instance, if machining activity uses high levels of coolant, it is likely that coatings that are less prone to oxidation, such as AlTiN, will work better.
In conclusion, Hence these factors enable the manufacturers, when juxtaposed with the particular needs of the machining operations, to choose the most appropriate cutting tool coating for efficiency and quality output.

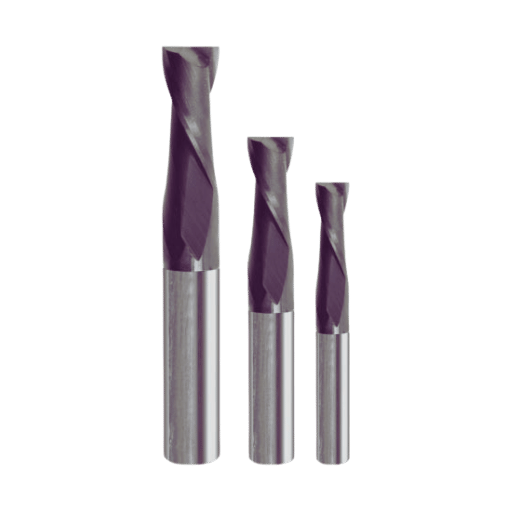

What Makes Solid Carbide End Mills Ideal for Stainless Steel?
Properties of Solid Carbide vs Other Materials
End mills made of solid carbide are widely recognized as the best tools for machining stainless steel since they hold many advantages over HSS and cobalt end mills. Initially, solid carbide has a hardness level rated up to 90 – 92 HRc, which makes it ideal for leveraging durability and accuracy when cutting hard stainless steel since the chances of wear and tear of the tools during the operation are low. Furthermore, the thermal conductivity of solid carbide turns out to be higher than that of HSS, which helps in the quick dissipation of heat during high-speed operations, hence reducing the chances of wearing out or breaking the tool.
Apart from that, solid carbide end mills are also stiffer than HSS and cobalt tools, which helps improve the process’s stability. This rigidity is in handy during delicate operations by reducing any potential motion and twiddling, enhancing the surface finishing and tolerances. In addition, manufacturers can use solid carbide tools that can be fabricated in complex shapes to help in the quick cutting action of waste materials. To sum it up, end mills made with solid carbides possess or have the combination of hardness, thermal stability, rigidity, and shape, making them the perfect tools for machining stainless steel and thus helping manufacturers achieve the best performance and perfect surface finishes.
Benefits of Using Carbide End Mills on Stainless Steel
Carbide end mills prove handy and beneficial when machining, which involves milling stainless steel. To begin with, the cutting performance is significantly improved due to the utilization of carbide end mills. As a result, higher feed rates and quicker removal of cut and pushed-off material without damaging the tool are possible. This improved performance translates into decreased cycle times and better optimization of large-scale productive operations. Another advantageous aspect of sic carbide tools is their good wear resistance, significantly when machining hardened grades of stainless steel that are pretty hostile to conventional tools.
In addition, the need to change tools and their maintenance is lower as more carbide end mills with cutting edges are employed for long tool life. This leads to an efficient production schedule cutting out unnecessary maintenance periods. Finally, one more critical advantage offered by carbide is its high resistance to thermal deformation, other than that allowed for effective thermals without damaging the tool, which makes thermals cutting strategy more rational and hence helps to save time. Together, these benefits lead to lower costs and better-finished products.
How to Maintain the Tool Life of Solid Carbide End Mills
Maximizing the tool life of solid carbide end mills is particularly important about the shank’s design in terms of both performance and cost management in any machining process. Here are some of the most critical recommendations:
- Proper Tool Use: Using the right end mill for the application and considering the type of material, cutting speed, and feed rate ensure that the tool is used within the manufacturer’s designed parameters, avoiding tool wear.
- Cooling and Lubricant application: One of the most unfortunate consequences of machining is the heat produced. Thus, techniques that will enhance the cooling of the workpiece, like using coolant or air mist, should be implemented. This will decrease friction at the tool’s cutting edge, enhancing its life span.
- Correct Feed and Speed Settings: Follow the specified feed rate and spindle speed to prevent the tool from undue load. In a similar vein, too-high spindle speeds risk overheating, which brings with it a high wear rate, while too-low speeds make a rather ineffective cut.
- Regular Inspection: Inspect the endmills periodically for wear and tear. Problems can be rectified at an early stage by changing or rejuvenating endmills before they progress further into deterioration.
- Receiving of a tool’s application: As sharpening is regarded as a radical method, the user should adopt such a procedure with caution. Here work must be done against the tool’s working principle.
Nevertheless, incorporating the practices reviewed can prolong the life span of solid carbide end mills, thereby improving production efficiency and reducing operating costs.
How do you troubleshoot common issues in end milling?
Signs of Tool Wear and How to Mitigate Them
Termination tool wear in end milling usually takes many forms, with detrimental effects on part quality and machining efficiency. Some common signs are as follows:
- Surface Finish Degradation: No affordable tool with cutting edges guarantees no wear. A tool wear visual inspection makes a suggestion of wear. If parts are showing roughness or tool scratches, it is probably time to change or check the end mill.
- Increased Cutting Forces: Cutting forces measured in an ongoing operation tend to increase. This cutting of the workpiece will not go easily and will lead to undue abrasive wear for both the cutting tool and the working piece.
- Dimensional Variability: Where it death by design occurs. Components manufactured within heading and heading dies are often poorly rectangularized. A consequence of excessive wear on the tool cutting edge profiles is producing parts that are out of geometrical tolerances.
- Chipping or Cracks: Worn cutting edges may also show damage in quite a mechanical way. Parts such as chips or cracks on the cutting edge are a clear indicator that either the wear of the tool has reached alarming levels or the tool has been abused.
To avoid these complications, control the performance of the tools by conducting an examination regularly, and schedule a replacement based on the usage patterns of the tools. Also, changing some machining parameters like the feed rates and the spindle speed can reduce sudden wear and tear and increase the tools’ lifespan. In addition to this, the use of quality cutting tools together with good cooling and lubrication practices also improves productivity and lessens the amount of wear.
Addressing Chip Formation and Removal Problems
The mechanics of the chip formation, and the mechanics of chip removal are critical factors in the end milling process as they have a direct impact on the tool wear as well as overall productivity levels in machining processes. To avert these problems, it is necessary to analyze the following aspects:
- Blade Tool Angle: The optimal angle of the blades of the tools achieves optimal and adequate chip size as well as assists in chip removal from the work pieces. The geometry of the tools, which has a broader flute shaped semi cylinder and certain rake angle, will improve the chip movement to prevent choke-up and therefore damage to the tool.
- Cutting Parameters: Changing the existing conditions of machining parameters adjusted in terms of cutting velocity, feed and depth of a cut can result in alteration in the geometry of the chips formed. A faster speed while cutting materials can cause smaller chips which are easier to handle and removing the feed rate will make sure chips are not accumulation around the cutting area.
- Appropriate Use of Cooling and Lubrication: Utilizing optimal cooling and lubrication methods prevents excessive heat from formation and allows for constant conditions during the cut. This, in turn, aids in tutorial chip removal and prolongs the life of a tool by reducing thermal cycles that can bring about wear to the tool.
- Mid-Task Management of Workpiece Orientation: Changing the orientation of the workpiece being machined may lead to better chip fall participation with gravity- assisted chip-removal mechanisms in those setups. This practice is also quite effective in minimizing recirculation of chips as it may lead to damage to the workpiece and even to the tool as well.
Chip formation and, accordingly, chip removal have arisen as a great obstacle to manufacturers. However, with the application of these authorities and, therefore, regular evaluation of the machining process, chip removal and hull formation in the machining process are addressed, and improvement in making operation and reducing tool life is established.
Dealing with Heat Generation and Managing Coolant Systems
Heat is a specific factor that requires forethought in machining operations in order to achieve the desired work performance and tool longevity. Excessively high temperatures that occur in the process of cutting can also result in thermal deformation of both the tool and the workpiece, which brings about the need for cutting degrees of accuracy and increases the rate of wear. Some of the possible solutions to these include:
- Coolant Application: An effective coolant system can remove heat generated at the cutting interface. The choice of oil- or water-soluble coolants should depend on the application and the composition of the workpiece. Flood cooling or mist cooling will increase heat removal.
- Enhanced Tool Materials: The use of carbide or even ceramic cutting tools will enable the machineries to reaching very high temperatures and maintaining cutting edges for prolonged periods thus controlling the thermal energy during the machining processes.
- Regular System Maintenance: Maintaining coolant systems will enhance effective heat management systems. This involves monitoring coolant contamination, correct coolant concentration, and even flow rates. Clean and non-contaminated flowing coolant will ultimately lead to better cooling performance with less push-up heat.
The heating problem with practical machining operations can also be handled effectively by manufacturers using these approaches, which ensure that performance is never reduced or tool life rationed.
Referentiebronnen
Veelgestelde vragen (FAQ's)
Q: What end-mills can be employed for the machining of steel?
A: Specific end mills for steel incorporating certain focus have been developed to cope with steel. These usually feature AlTiN high performance coating for edge protection, multiple flutes (usually 4 flute design) for efficient chips removal, and a considerable variation in the pitch angle to mitigate torsional oscillations. Such characteristics assist the machining process of stainless steel yielding a cleaner finish and enhancing the lifespan of the tools.
Q: In what ways do you see or notice end mills for stainless steel to be better than end mills made of other materials?
A: Tools consisting of end mills made from stainless steel are claimed to withstand lacuna wear, unlike other manufacturers’ tools that are common for applications of softer materials such as aluminum. They, in most cases, have specific coatings like AlTiN or Ti AlN that improve the life span of the end mill. Such improved wear resistance helps maintain the sharpness of the cutting edges for longer periods when cutting hard-to-machine parts such as stainless steel, nickel-based alloys, and titanium leading to enhanced tool life and reliability.
Q: Which type of tool is recommended for a stainless steel end mill’s cut speed (SFM)?
A: The SFM is defined according to the type of material and tool configuration with its composition in the stainless steel end mill, which is why it ranges differently. Generally, a range of 100-300 SFM will work for most grades of stainless steel. However, for harder alloys or high-performance coated end mills, SFM can be increased. However, always consult the tool manufacturer’s recommendations and modify the speeds depending on your CNC machine and workpiece requirements.
Q: Are stainless steel end mills limited to stainless steel only, or can other materials, in any case, accept end mills?
A. Yes. They can, in particular, cut other materials and operate on stainless steel end mills, not less than those equal to or lower in hardness than the steel. Alloy steel, carbon steel, and titanium cut well with these tools. However, cutting conditions should be carefully selected when cutting soft metals like aluminum or bronze. These types of end mills can cut large ranges of materials. However, there is generally, in practice, better finish and tool life when material-specific end mills are used over such multi-purpose tools.
Q: What is the basis difference between the up-cut and down-cut router bits in the case of stainless steel cutting?
A: The up-cut and down-cut router bits are distinct in how the stainless steel chips are removed and the finish type achieved after the machining work. Up-cut router devices remove the chips upward, cleaning the intra-cutting tool area, which is most required in deep slots or pockets machined in stainless steel and offers a better surface at the bottom polished. Still, in the case of down-cut bits, the chips are pushed towards the surface of the workpiece. This produces a clean edge on the top side, which is helpful for particular stainless steel fabrication. The decision of one over the other depends on the machining operation and the features of the respective component.
Q: How can I select the perfect number of flutes on the stainless steel end mills?
A: The number of flutes on an end mill doesn’t matter until machining stainless steel. A four-flute end mill is the most valuable tool for producing stainless steel. It offers reasonable engagement of the cutting edge while assisting with chip removal. In contrast, more tool clearance options are better for roughing and working on odious stainless steel alloys, hence the three flutes design for such scenarios. Similarly, a five or 6-flute would help attain a good surface finish when machining thin-walled components or during finishing operations.
Q: What benefits do those using coated end mills have when machining stainless steel?
A: When it comes to machining stainless steels, coated end mills come in handy in many ways, notably in reducing friction during plunge-cutting operations. Endmill coatings such as AlTiN and TiAlN significantly improve wear resistance, increasing cutting speeds and prolonging the endmill life. All these help enhance the surface quality of the machined materials by minimizing the thermal effects during the operations. It resulted in improved surface quality, reduced the cold working of the stainless steel, and allowed CNC cycles to be performed for excessively more extended periods until the endmills needed to change, which maximized productivity.
Q: What measures do I take to ensure no work hardening occurs during stainless steel end milling?
A: Here are a few work practices that you can do to prevent work hardening during stainless steel machining: Utilize sharp high-end coated end mills that are appropriate for the work. Engage in adequate and heavy chip loading to always engage the cutting edge. Do not make very shallow cuts, which may lead to light rubbing. Follow the suggested cutting speed and feeds meant for both the tool and stainless steel grade. Minimally restrict coolant to cool the heat generated by the tool. Use climb milling instead of conventional milling. Finally, try to prevent vibration and chatter by stiffening the mounts and using tools with spiral cutting edges. These measures assist in preserving the efficient cut of the stainless steel during the cutting operation.
