Everything You Need to Know About End Mill Collets

Everything You Need to Know About End Mill Collets

High-accuracy cutting tools are vital in machining and metal processing regarding the end results; wearing tools of such kind include, among others, end mill collets, which are necessary for holding end mills during operation. This paper examines some useful information related to the end mill collets, including their construction, types, and usage within the industry. By learning about these, machinists and engineers can improve their machining practices and achieve better outcomes. Suppose you are totally unfamiliar with this topic or wish to increase your technological skills. In that case, this detailed guide will explain why end mill collets are so crucial for today’s metalworking practices.

What is an End Mill Collet?

What is an End Mill Collet?

An end mill collet is a tool holder used to hold an end mill securely to perform the machining process; therefore, it is included in any mill holder kit. Collets have a clamping which is fixed onto the end mill shank, this ensures that the procedures of cutting are performed with a lot of precision. In addition, end mill collets are machined out of high-strength materials like hardened steel or carbide into different sizes and shapes based on the diameter of the end mill shank and machine. How accurate the end mill collet is and how much grip force is applied to the end mill collet is critical in minimizing tool deflection, also known as chatter, and in response, improving the quality and precision of machined components.

Understanding the Basics of Collets

In machining processes, collets perform the role of a precision tool holder that securely holds the shank of cylindrical tools, including the popular sizes of end mill shanks. As already stated, their primary aim structure is to support and center the tool as a result, increasing accuracy and minimizing deflection. Collets are held in a collet chuck and have a slotted cylindrical outer casing which snugly cups the tool to be tightened when fitted into the collet chuck. The apparatus that performs this function, usually a drawbar or nut, applies even pressure over the tool shank, causing a reduction in runout and improved accuracy. Collets are used in many machining processes such as drilling, milling, and grinding and thus serve a very significant role in metalworking.

Different Types of End Mill Collets

Different types of end mill collets are often used in machining. ER Collets are standard, versatile collet holders with a variety of applications. Their flexibility and parallelism often make them the first choice for several CNC equipment. R8 Collets, also found in older milling machines, are confined to specific machines while providing efficient utility in normal milling processes. TG Collets allow increased grip, which is ideal for tools made for rigorous usage. Every type of collet has its own benefits depending on the machining requirements. Thus, using the right collet system to gain feedback and accuracy is fundamental.

Applications of End Mill Collets in CNC Machines

End mill collets are indispensable parts of the operation of CNC machines for a number of reasons. As per the top experts, their main purpose is to hold cutting tools at high speed and precise machining, preventing them from running out as much as possible. They allow for fast tooling up that helps increase productivity and reduce idle time, as commented on in major turning and milling portals. Additionally, they have collets designed to receive various sizes of tool shanks, which enhances efficiency and usability in different machining processes with reliability, bringing out excellent outcomes.

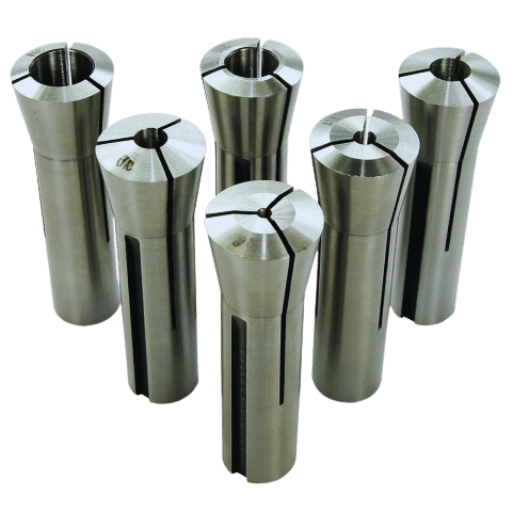

How to Choose the Right Collet for Your Milling Machine

How to Choose the Right Collet for Your Milling Machine

Factors to Consider When Selecting a Collet

It is very important to make the right choice regarding a collet for a milling machine. First of all, manufacturers of CNC equipment popularly recommend matching the size and type of tool shank with the collet specification as this minimizes runout and guarantees firm gripping of the tool. Two, the type of material and grip force needed for the application in question should Be Fit within the capability of the collet to prevent tool slippage and maintain operational accuracy under working conditions, as noted by industry practitioners. Finally, small and large changes in design flexibility of the collet system concerning different machine types and the ease with which tools are changed must be evaluated to improve the organization’s efficiency, according to some of the best machining resource websites. Adherence to these factors while selecting a collet enhances machine functionality, reduces the idle period of machines, and improves machining results.

Comparing ER Collets and R8 Collets

It is apparent that ER collets and R8 collet systems are not used interchangeably as they serve different functions during the machining processes, which can be seen in their merits. Due to their excellent clamping range and large degrees of freedom, they are appropriate for light to moderate applications in precision engineering. They afford very good concentricity fit many tool shank sizes, and offer several diameters with one collet, as discussed in major machining sites. On the other hand, R8 collets are mostly used in manual milling machines such as Bridgeports and, by far, are simpler and cheaper for smaller manual mills – in this case, not the entire milling system. They are very useful in cases where tools have to be changed quickly though these are of much lower clamping literature and range than ER systems. All in all, the most critical factors when it comes to deciding on either the ER or the R8 collets are the nature of the machining works, what the work holds, where the milling machine will be used, and for what purpose.

Choosing the Right Shank Size for Your End Mill

It is necessary to pay attention to machine spindle size, depth of cut, and other parameters of a specific milling operation to ensure the proper end mill shank size. It is also worth mentioning, according to the most recent top machining resources available on the web, that the improper selection of a shank size with regard to the spindle’s capacity may result in loss of vibration stability, especially with popular end mill shank sizes. Smaller shank sizes are appropriate for fine, detailed, and less challenging tasks, while larger ones bring additional strength and support for more difficult milling and deeper cuts. Additionally, insert the collet or tool holder system, e.g., milling machine collet, to guarantee better performance and prevent tool slippage during usage. The priority of these aspects will boost machining accuracy and efficiency, leading to improved manufacturing processes.

How to Maintain and Care for Your Mill Collets

How to Maintain and Care for Your Mill Collets

Proper Cleaning Methods for Collets

Proper care of milling collets is essential to their durability and functionality. Commonly, collets are checked for any signs of wear and tear, and appropriate action is taken. This process involves using a soft brush to remove the residues with an industrial non-abrasive cleaner. Ultra sonic cleaners can help very well in the cleaning of small particles. Allow the collets to air dry properly as excessive moisture can lead to rust. Pat the surface dry, and then apply a light film of oil. Their service life is also prolonged by adequate and proper storage in a clean and dry place. Filling these cleaning techniques will maintain the preservation and accuracy of the collets.

Storage Tips to Prolong the Life of Your Collets

Guarding the life span of my collets was necessary, and as such, their storage location should be free of dust, moisture, and heat changes. I keep them in a robust and orderly case or accessible rack without subjecting them to unintentional harm. Moreover, maintaining collets apart from other metal tools in the storage system also reduces wear and scratches; this is quite vital for collets from big daishowa. It is also quite valuable for protecting accountable personnel from undue risks to storage facilities’ pollution and climatic regulation. Following these storage tips, I can even prolong the service of my collets and their efficiency, quality, and operation accuracy.

Common Problems and How to Fix Them

According to trustworthy sources, runout, gripping, and cleaning leftovers are the most common problems with collets. In particular, concerning runout prevention, I check whether the collet is properly seated and whether both the spindle bearing and the drawbar are aligned. Mistakes that resulted in poor grip are corrected by checking whether the collet was overly worn or contained excessive dirt and changing it if needed. Regarding the residual debris, I use an ultrasonic cleaner in order to get the small particles off all the surfaces of the collet. Applying these preventive measures and troubleshooting procedures from time to time improves the precision and functionality of my collets.

What Are the Benefits of Using ER Collets?

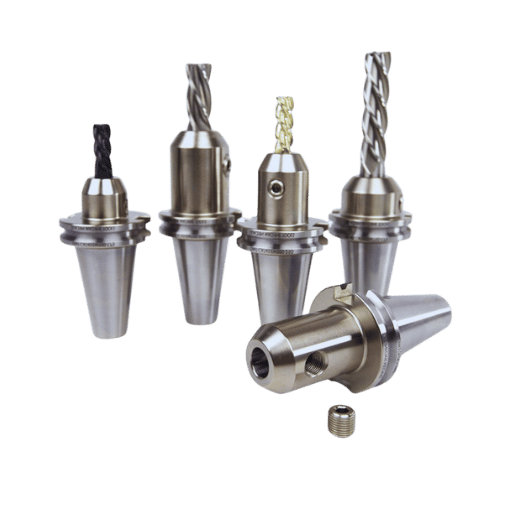

What Are the Benefits of Using ER Collets?

Enhanced Precision and Runout

The design of ER collets makes them infamous for their accuracy since they offer a constant hold of spindle bearings with little runout. The high accuracy obtained in machining processes makes ER collets perfect for operations that require high precision. Clamping action is also crucial in retaining the position of the tool and averting the production of defects in the final product. These qualities of ER collets especially help in areas that are detail oriented and require consistency.

Improved Grip and Rigidity

ER, collets are particularly advantageous as they provide better grip and stiffness, which are paramount to retaining tool position control, especially in popular end mill shank sizes during machining operations. The nature of ER collets allows for torque to be securely and uniformly applied on the tool, which helps limit the deflection of the tool due to orientation-induced torquing moments. This rigidity helps in situations where the tool is operating at fast speeds or used on solid objects; the tool remains positioned and improves the machining process efficiency and rate of accuracy. Because of this great grip, many more tools of different sizes can be contained in one collet, thus adding versatility and lessening the frequency of tool collet swapping. This steady performance forms what is known as the ER collet’s reliability and durability achieved in many engineering applications.

Compatibility with Various Tools

The ER collet types are adaptable with many different tools of various sizes and shapes. They have the same size dimensions, which makes them interchangeable with many machinery and equipment. This is possible because the collet is designed to move in and out to grip different-sized tools within a specific range. In this regard, they provide easier switching of tools for the users and thus low preparative time, which increases the operating efficiency. ER collets are distinguished by their universal character, enabling their application across various industries, including machine processing and engineering applications, and retaining productivity and precision.

How to Install and Use End Mill Collets

How to Install and Use End Mill Collets

Step-by-Step Guide to Installing Collets

  1. Make Sure the Collet is Suitable for the Machine – Ensure that the collet you are using is designed for your machine’s chuck dimensions.
  2. Wipe all Lubrications and Debris out from the Collet and Chuck to enhance the effectiveness and reduce the wear rate of the tools especially in dealing with collet for the commonest end mill shank sizes.: Wipe off greases, dusts and other substances from the body of the collet as well as the chuck to reduce the chances of slip.
  3. Fit the Collet in the Appropriate Manner: Do not exert the Collet by forcing it, especially if you are placing it within a mill collet.: Insert the collet into the collet nut and ensure that it has rattled to catch on the hooks.
  4. Position the Tool: Hold a suitable tool and ensure its straight alignment before inserting it into the collet.
  5. Tighten the Collet Nut: A tool such as a wrench is used to secure and strengthen the collet nut while holding the tools. Do not invoke undue pressure as this may result in destruction.
  6. Inspect the Setup: Make sure that the tool and the collet are correctly seated and locked within the chuck.
  7. Perform a Test Run: Take a low-speed test to confirm everything is stable before performing anything at full speed the first time it is sustained, especially an end mill holder.

Best Practices for Using End Mill Collets

  1. Regular Maintenance: Periodically check and wipe the collets and the chuck to remove debris or residue that may interfere with clamping. Appropriate cleaning solvents and other methods should be employed to avoid contaminating the parts.
  2. Proper Tool Selection: The cutters should be housed in appropriately sized collets. Failure to use a correctly sized collet, for example, can result in slippage and loss of machining accuracy. The tool holder collar’s specified range should match the specified tool’s dimensions to enhance grip.
  3. Avoid Excessive Tightening: Though it is critical to fasten the collet nut in place, a wire screw overly tightens the nut and may crush or fracture the collet before its life cycle is completed. Apply the manufacturer’s reasonable torque limits to tighten if some known prescription was given.

If these best practices are followed, an end mill collet’s users will enjoy longevity and reliability without losing the value of any efficient machining processes.

Safety Precautions During Installation

  1. Caution: Never perform any installation without first making sure that the power supply is switched off. Electrical shock is negated in this manner. Operation for isolating the machine should also incorporate procedures – procedures that limit or lockout energy, which will prevent one from troubleshooting with the power on.
  2. Wear Personal Protective Equipment (PPE)- : Wear necessary personal protective equipment, for example safety goggles, gloves and ear plugs. This reduces chances of injuries which may arise from falling objects, or from moving parts of the system during the installation process.
  3. Use Proper Lifting Techniques- : When carrying heavy machinery or parts, it is important to use correct lifting methods and use other lifting equipment, such as cranes, dollies, etc. so as to prevent back and other body injuries.
  4. Check Tools Usage for Compatibility, impressive performance with R8 collets together with other end mill holders: various tools and equipments used for the installation must be commensurate to the tasks at Hand. Non-appropriate tools pose a risk to both the equipment and the installed system.
  5. Steady Work Environment: Keep the working area free of any obstacles and provide good illumination and forward to wind. This ascertains that there are no slip risks and guarantees sight and comfort when doing the installation.

Performing these safety measures enables reduction of risks and supports safe installation when changing end mill collets or cutters, or setting up any machine cutting tool equipment.

Where to Buy High-Quality End Mill Collets

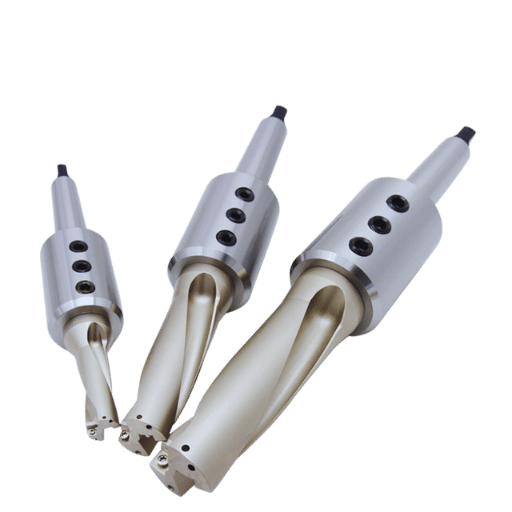

Where to Buy High-Quality End Mill Collets

Top Manufacturers and Suppliers

It is important to note that when sourcing end mill collets of high standards, one must look at credible, high-accuracy construction engineers and reputable manufacturers. As per the review of current top websites, here are three companies that stand out:

  1. MSC Industrial Supply Co. is one of those supportive companies within the machining business that provides all industrial tools and supplies. It is also one of the largest providers of end mill collets, providing excellent choices from brands with quality and precision.
  2. Grainger is a complete provider of machining tools, parts, and components, including end mill collets, which are quite good. They offer strong machining tool product support and logistics solutions, so facing many industrial parts would not be an issue.
  3. R.D. Barrett shares the same market with R.D. Barrett and deals with tools & cutters with accessories and provides end mill clamping devices for standard collet sizes. Barrett is regarded as professional in ensuring clients obtain the right type of end mill collets for their machining needs.

These companies are recognized in the market for their deep quality and customer support, which guarantees that the professionals in the field get the best tools for their operations.

Factors to Consider When Purchasing Collets

While procuring collets, a number of factors must be considered to achieve the desired performance and compatibility with the available equipment. The first one has to deal with the dimensional specification which has to match the requirements of the machine. The composition of the material is another factor; collets made of high-quality steel and other efficient materials improve durability. Further details would include the clamping force of the collet, which is of clear importance as it defines the accuracy of the operation being performed, plus the overall stability. One such consideration is the supplier’s reputation and after-sales support, as it considerably impacts user confidence and cost-effectiveness in maintenance over time. Finally, the number of sizes and types of the available supply should be analyzed to satisfy probable future requirements and promote the purpose’s safety.

Comparing Prices and Quality of Collet Sets

At present, there are many differences among the collet sets concerning their price and quality, and knowing these differences is important before making a buying decision. Several significant aspects can be outlined from a quick survey of the most reliable current materials available on the web. Firstly, material and manufacturing accuracy determines the price ranges. Premium-priced collet sets, made from high-carbon steel with strict tolerances, are often more costly owing to their better durability and accuracy. A middle ground is possible, and using materials of reasonable quality has advantages. However, the same levels of precision may not be upheld as the premium sets will.

Barriers to quality further point to the use of power and reliability over time. Recommendations very often underline the basic feature of every attached collet, which is the clamping force and how the collets withhold the load. At the same time, operating conditions determine the machining accuracy. All the best brands ensure detailed specifications and stress test results, thus giving the insight of confidence in the performance of the collet sets. It has been suggested that objective and subjective evaluation methods are necessary for assessing collet set varieties in terms of price and reliability.

Reference Sources

Collet

Milling (machining)

End mill

Frequently Asked Questions (FAQs)

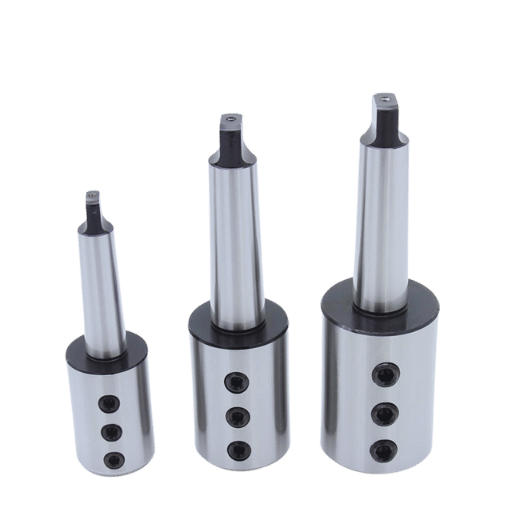

Frequently Asked Questions (FAQs)

Q: What is an ER collet?

A: An ER collet is used to fasten cutting tools onto a tool holder or a collet chuck. Thanks to its accuracy and interesting design, it is often utilized in Auto CNC machinery milling lathe tripod operations.

Q: How do I choose what collet chuck should be suited for a milling machine?

A: Several factors should be considered when choosing a collet chuck for the milling machine. These include the spindle size, the corresponding collet system installed on the machine, and the milling capabilities. Even though there is no end to the variety of optional collet systems, it is essential for ideas like compatibility of the existing tool holders and the collets.

Q. Where should the collet nut be applied?

A: The purpose of a collet nut is to retain the collet fitted in the collet chuck. With regard to the exponential often Ericson, this works by gripping against the cutting tool, using the clamping collar to position the spindle, thus ensuring that the positions are maintained firmly while performing machining processes.

Q: What is the distinction between an R8 and an ER collet?

A: R8 collets are designed for manual milling machines and are fitted on R8 spindles, while ER collets are more effective and applicable to both manual milling machines and CNC milling machines. ER collets offer a wider clamping range and better accuracy.

Q: Is it possible to use an ER32 collet for carbide endmills?

A: an ER32 collet is also expected to work for carbide endmills’ cutting applications. Carbide tools are often held with ER32 collets, essential tooling elements for enduring high precision and gripping solid force during the operation.

Q: Why is utilizing a collet chuck on a lathe advantageous?

A: Fitting a collet chuck in a lathe has many advantages, such as better accuracy, steady concentricity, and quicker tool changes. It also enables a tight grip of tiny and fragile parts in place when lathe cutting them.

Q: Why do you use the right collet system while performing CNC milling?

A: Using the correct collet system will increase the performance of the CNC milling operation in terms of how well the tool holds and positions the cutting tool. A properly designed collet system will help reduce tool runout and tool vibration, and ultimately, the more effective tool will wear longer and provide much better surface finishes.

Q: How do I look after my collet holders and a collet nut?

A: Collet holders and collet nuts maintenance mainly involve cleaning to get rid of any impurities that may be present. That is why cleaning is necessary. Examine and replace any items that are cracked and pose a hazard. Tightening the collet nut without lubrication and using incorrect imprisonment torque also will affect the use and durability of the R8 brand, or any other collection, towards collet nuts.

Q: Are there collets of both metric and inch sizes?

A: Certainly, collets of both metric and inch sizes are available to meet the requirements of a large number of tools and their various applications, including collets of the most common end mill shank types. The correct size must be used to ensure that the tool used is secure and that the requisite clamping strength is produced.

Q: Is it possible to use a grinder to sharpen endmills still held within the collet?

A: Using a grinder, it is technically feasible to sharpen the end mill while it is still clamped in the collet. However, best practices recommend unclamping the end mill in order to sharpen to better accuracy and prevent damage to the collet or collet chuck.
