The most important tool in every CNC machining project is the end mill router bit. Different types of components are classified as end mill router bits, and they probably influence the definition of any cutting tool. In this guide, the selection process is made easier by investigating the main characteristics and material principles of the CNC end mill selection. If you are machining metal, wood, or plastic, this resource will provide the practical understanding needed to make sound selections for tool geometry, coating, fluting, and dimensions. With this knowledge, users can eliminate compromises in the functioning of their CNC machines and considerably enhance their productivity and results.

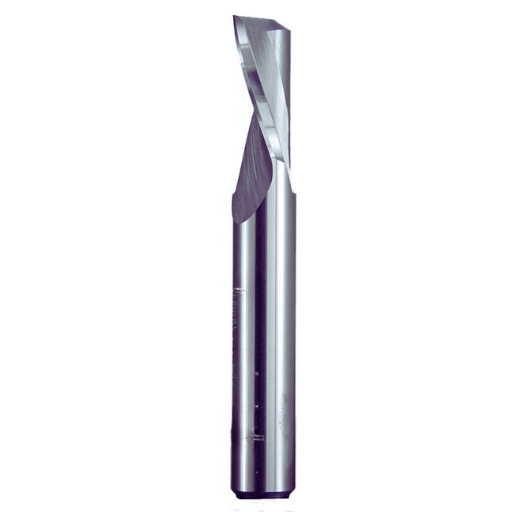

End Mill Router Bit – What is it?
How an End Mill Differs from a Router Bit
Even though End Mills and Router bits are considered CNC cutting tools and aim to perform the same operation within a CNC machine, their features and usage aspects are specially made for a particular task. End mills are mainly reserved for machining and have the distinct feature of cutting in all horizontal and vertical planes. They have specially designed helical flutes that enhance chip clearance while increasing the quality of the surface; 4 flute endmills are used for milling, slotting, and contouring. However, router bits, in contrast to the end, are built for the cutting of wood and plastics in which the vertical motion predominates and is used for edge and hollow shapes. End mills are usually cylindrical with a shaft, while router bits can take different forms like round, ogee, V-groove shapes, and the like with the purpose of applying varieties of ornamental shapes. Knowing these aspects is crucial in identifying the right tool that will correspond to your CNC project’s material and design needs.
Common Applications of End Mill Router Bits in Woodworking and Metalworking
End mill router bits are practically applicable in performing a number of operations in either wood or metalworking. Woodworking is most often acquired for the machining of narrow, deep features, channels, slots, and designs on timber or timber-based materials. These bits can also serve the purpose of finishing edges or decorating. In metalworking, the end mill router bits are primarily used to manufacture intricate contour shapes or 3-dimensional forms within any metal component, therefore important for operations such as die sinking and mold making. They are also used for making holes and pockets because they can drive straight into the workpiece, hence their many uses in artistic and engineering practices.
What is the Reason for Choosing Solid Carbide or Spiral CNC Bits?
For obvious reasons, especially for their ruggedness and cutting efficiency, solid carbide and spiral CNC bits are the most preferred. Of perfect note is solid carbide bits’ hardness and wear resistance, which enables cutting with precision even in hard materials and extension of the bit’s life. Spiral bits, on the other hand, are more advanced, thanks to their spiral shape, cut through the material, and lead to better chip evacuation and an even better surface at the end, leading to less heat and less chances of damaging the tool. All these advantages make both choices perfect for complex machining processes, allowing better quality and increased outputs both in woodworking and metalworking operations, especially on 3-inch bits.

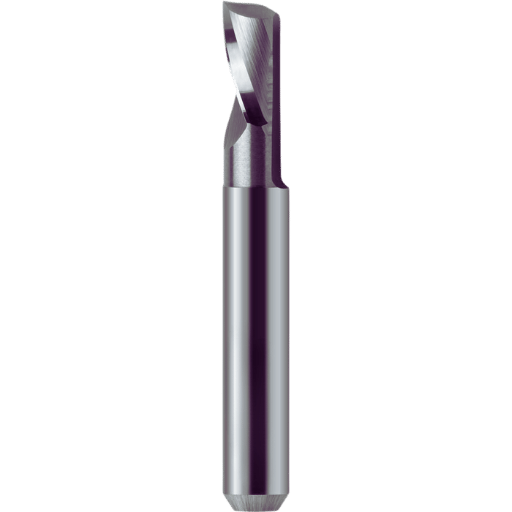

In CNC Routers, Which End Mill Selection is Perfect for the Task?
The Different Router Bits: Which is Best for This Job?
People often have difficulty finding the correct router bit for their task. The problem is usually related to understanding the aim of the task and the details of the material gently cutting. Birds and other decorations that require detailed work are best achieved using a straight or spiral bit simply because they are cleaner and tighter. Metal can be machined using end mill bits provided the hardness of the material and the desired finish are considered. Worthy solid carbide and high-speed steel bits are also recommended for metalworking. On the other hand, if the project has decorative edge treatments, some of the bits, including chamfer, ogle, or round bits, can be useful. In the end, all hinges on the type of cut the user hopes for, the type of materials used, and whether the tool is compatible with the CNC Router.
Factors to Create a Quality Endmill: Flute Count, Material, and Coating
It is crucial always to consider the flute count, the material, and the coating of the end mill while making a selection for a given task to guarantee efficiency. First, the flute count determines chip removal and the quality of the final surface; a higher number of flutes will give a better finish but can reduce chip flow, which is important in cutting metals. Generally, low numbers of flutes allow for better removal of chips, and this is applicable to soft materials. Second, the material of the bit, for example, bits made of carbide or high-speed steel, will dictate the job in question based on the hardness and resistance needed. Finally, coatings such as TiN or DLC help reduce heat and friction during the tool’s operation, thus prolonging the longevity of the tool, which is critical for high-speed machining operations. Once you have a proper understanding of these factors, you are able to choose an end mill that suits the needs of your end machining process.
Effects of Shank Diameter and Cutting Edge on Performance
It’s well-known that components such as the shank diameter as well as the cutting-edge design of end mills are very much responsible for certain parameters on an end mill including the specific function it serves. Higher shank diameters add more stiffness and reduce the amount of deflection that allowing for cleaner cuts and better tool performance, especially in roughing operations such as deep milling or high-speed cutting. In contrast, smaller shank diameters permit faster movements but are rather suited to fine detail work. The aspect of the cutting edge’s design, including its shape and sharpness, makes a certain level of difference in terms of the ease of cut and the quality of the cut. Sharper edges of material cutters are critical for the effective removal of material since distortion of the work-pieced and heating of the workpiece is minimized. These factors combined are imperative for the accuracy, effectiveness, and finished product of the machining process and suggest that careful consideration must be made of the machining process selected.

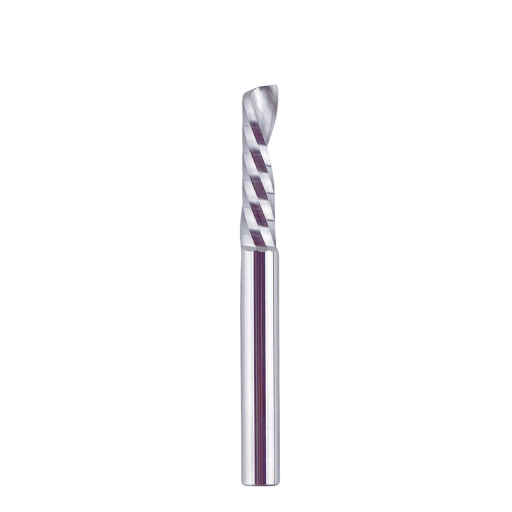

What exactly are the router bits for the CNC milling machine?
2-Flute, 4-Flute And Straight Flute Router Bits Overview
Primarily, 2-flute router bits can be used to cut softer materials such as wood and plastic because these tools effectively cut lots of material and leave the surface nicely behind. Their design allows them almost always to eject chips at a very low temperature, preventing cutter binding. 4-flute router bits, on the contrary, are usually much more appreciated when cutting harder materials. Rather, they are usually applied where finer finishes are required. The increase in the number of flutes results in high engagement of the cutting edges, thereby making the surfaces smooth. Only then is more heat produced, which calls for cooling and lubricants. The straight flute router bits will not only work quite well for plunge cutting but also offer wide flexibility for efficient upward and downward evacuation of the material. They are very rigid and quite effective when multihole drilling, slotting, and pocketing in a wide range of materials is used. Knowing these characteristics helps the user know the best router bit for the specific machining process to enhance performance and results.
Knowing the Differences Between Upcut, Downcut, and Compression Bits
The purpose of upcut bits is to remove the material chips from the working surface while milling. This provides a sharp cutting edge and is useful when cutting hard materials, especially in deep cuts. Such a configuration is even easy to use in situations where proper removal of chips is important. However, it is possible to pursue downcut bits, which always push chips down. These areas do not splinter, allowing the top surface to be clean, which is important in products where the ‘face’ is important, such as laminates or veneers. They may, however, lead to more space being needed to clear the chips. The upcut and downcut features are used in the compression bits but they have an alternating flute design that compresses the material on both sides. The inter-layer tensile stress produces little tear-out at the upper and lower surfaces, which is why they are effective in cutting through laminate and plywood. It is important to make the right selection among these types of bits so as to obtain the quality and finish of the cut and edge and the surface by the designed machining process and properties of the material.
Specialty router bits include ball, square, and extra-long routers.
Ball end router bits have a round shape end and are especially useful in contouring and 3D shaping activities. Such installations are widespread in the metal industry and for decorative carvings or patterns requiring curved cuts. In contrast, square-end router bits have straight-edged cutters, and these allow accurate square bottoms to be cut into pockets, slabs, and bottom grooves for the next layout step. There is much use of these bits since they are useful in creating sharp profile edges, defined ends, and other features. An extra-long router bit allows the standard bits to reach farther than they ordinarily do. It is way beyond the capabilities of most tools that can efficiently bore deep holes or penetrate thick and hard materials for cutting applications. They are very efficient when it comes to machining but have to factor in the stiffness and possible bending of the part. Each type is designed to fit a particular function, and therefore, it is important to select the right one to ensure successful results in complex and precise machining tasks.
What Materials Can An End Mill Router Bit Cut?
Woodworking: CNC router bits, from grooves to carving
CNC router bits can cut wood and manufactured boards such as plywood and MDF in addition to hardwood and softwood. These bips would unc helmet-patterned strings of bit shanks coordinate through a.. To optimize performance efficiency and cut fidelity, the router’s performance is also very much related to the type and size of the bit and the geometry of the wood being cut. With suitable parameters/examples, CNC machining with precise router bits can produce surfaces with good finish, sharp features, and complex geometries for both beauty and enhanced function timber.
Metalworking: Milling Stainless Steel and Other Metals: Turning
Several factors must be considered for proper operation and accuracy of the machining process of stainless steel and other metal parts using CNC router bits. Stainless steel can be cut with HSS or carbide-tipped router bits when some hardness and resistance to cutting are present. Cutting parameters like feed rate, spindle speed, depth of cut, and many others must be controlled and adequate to minimize the wear of the cutting tool while maximizing the cutting efficiency. Generally, cutting metals like stainless steel may pose a bit of a challenge in terms of spindle speed, where relatively low speeds of about 200-300 SFM are typical. In such cases, the feed rate should be rather low so as not to add too much heat and bend tools, usually over 0.002-0.005 inches on teeth per revolution. Cutting fluid is very important during any turning operation because it cools and lubricates the tool and workpiece due to oil staining, which transfers unnecessary heat and makes the tool ineffective. All these parameters must be optimized based on the particular metal being worked on and the intricacies of the machining operations performed to produce the required quality and accuracy of surface finish.
Plastic and Composite Materials: Best Practices and Bit Selection
Choosing the suitable router bit and setting the appropriate parameters when it comes to CNC machining plastic and composite materials is extremely important for the quality of work. A common problem when cutting plastic is the heat that builds up in the material, causing it to become deformed. Router bits that have been manufactured specifically for plastics with a single flute or O as well as many sharp and undelaying cooling possibilities, manage to reduce this problem. Well-built tools of either carbide or diamond-coated bits are advised for composite cutting as they withstand wear and leave clean edges even in often delaminating and abrasive composites that get cut. The optimum cutting tool parameters are known to depend to a great extent on the material properties exhibited by the materials. In most cases, fast turning of the spindle is favored with long linear feeds to reduce heat retention in a deteriorating situation where bending or breaking of the material may occur. Substantially compressed air or mist coolant can also be used for cutting temperature control and also for cleaning purposes in order to increase the accuracy and life of the tool.

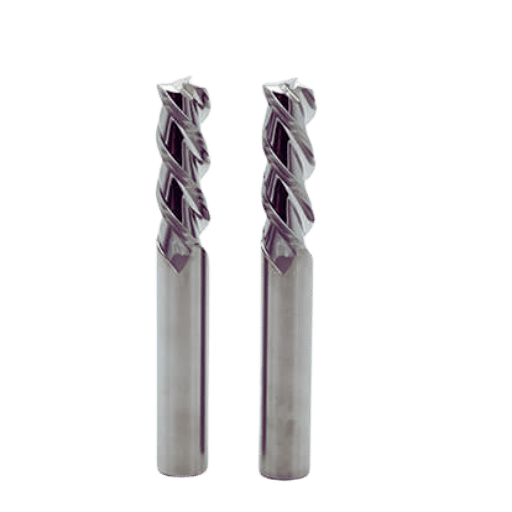

How to Keep and Increase Your Router Bits Efficiency?
Cleaning and Storing of Router Bits Effectively
Routine cleaning and maintaining of the router bits are important in preventing tool wear. To achieve this, the router bits remove friction after usage by wiping them off with a cloth to remove resin and particles. A router bit cleaner or cleaner made up of a combination of mildly soapy water and hot water can be employed to improve this. However, one should make sure that the bits are completely dried before storage to avoid oxidization of the Yonico tools. In the storage phase, router bits storage has to be done in a holder or a rack in such a way that the tips are not less than other bits of the tools so as not to crush their edges. Dry and regulated temperature conditions should be provided to the storage area to create zero rust or damage. These practices will help ensure that your router bits stay sharp and cut more efficiently, thus making them ready for precision machining.
How To Sharpen and When to Sharpening Your CNC Bits
Bits for CNC are to be sharpened not when they become rough but whenever one notices cutting efficiency is lacking. Excessive vibrations can determine this during operation or rough surface finishes. Sharpening bits after set operational hours is typically recommended, depending on how much they have been used and the material they have been used on. An actual or diamond sharpening stone or a specialized tool or blade sharpener for carbide or high-speed steel tools is required for CNC bit sharpening. Firstly, the bit needs to be placed into a holding fixture to ensure its stability. If the edges of the tool become dull, it is tempting to grind back the dullness at any desired angle, but this damages the original tool’s geometry. This is important because, due to proper deflection, sharpening restores the cutting edge without making the bit concentric. This extends the life of the bit and improves measures of its accuracy.
Taking Care of Full Performance: Periodic Inspection and Regular Maintenance
The performance of CNC bits cannot be undermined, so periodical inspection and maintenance of them is important. Always perform a visual inspection quickly before fitting the bits to note any damage, like chips or rounded corners. Inspect for accumulation of debris on the bit surfaces, as this will prevent effective cutting and encourage overheating. Clean the bits as appropriate with the right cleaning materials. In addition to sight examination, the balance and alignment of the bits should be periodically checked, as misalignment can cause improper machining, causing damage to both the bits and the workpiece. Create a log of the cut hours from the usage of each tool along with the materials that they cut to manage the maintenance and determine when they need deeper inspections or re-sharpening. If these routine and systematic care measures are adhered to, the lifetimes of CNC bits will likely greatly increase, and the quality of machining will not be compromised.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is the difference between an up-cut router bit and a downcut spiral bit?
A: An up-cut router bit works by pulling the chips up, allowing an easier cleaning, topping, and doling a minimum nozzle blow; most suited for engravings and cutting across. Down engages in spinning laterally aimed downwards and thus jam packs the dirt team and better defines the surface. Perfect for scenarios where the edges might chip mothers cutting edges with better breakage-safe supports, thin wood.
Q: Does the cutting diameter and cutting length have any bearing effect on the end mill cutting performance?
A: The cutting diameter establishes the measurement across the cut, whereas the cutting length specifies how far one can reach in a single pass. This allows quicker stock removal but can also be detrimental as it reduces the accuracy in cutting finer details. The other way around is the route picture. The longer the cut, the deeper, and the more cutting, the more it will be exerted. Note this is relatively less grammar, depending on the desire for cut quality and cut strength for your project.
Q: Why would you want to use substantial diameter carbide milling cutters, say with coatings of ZrN or AlTiN?
A: The milling cutters made of carbide with ZrN (Zirconium Nitride) or AlTiN (Aluminum Titanium Nitride) coatings provide additional hardness, thereby impeding wear and tear. These types of coatings help lower friction and enhance the lifetime of tools while enabling the tools to operate at much higher cutting speeds. It is especially useful while dealing with more demanding hard plastics, alloys, and other materials, ensuring top-of-the-range results with affordability in terms of burrs.
Q: To what criteria does a CNC user most carefully choose each of the 2-flute or 4-flute end mills?
A: A Two flute cutting end mill (also known as double flute end mill) is recommended mostly on soft materials such as wood and plastic, this low dimensional feed rate would achieve quickly by using high feed rate and better chip exiting. A 4-flute end mill is used to machine metals and other hard materials and produces a better surface finish due to its increased stability. For assorted do it your self woodworking works, i do find a double flute option quite fantastic but as for metal works and intricate works, 4-flute bits become the order of the day.
Q: What does it mean to use a compression spiral router bit and why should I engage it?
A: A compression spiral router bit consists of an up-cut and a down cut flute spiral. The low portion is a down cut spiral and the upper portion is a down cut spiral. Due to such designs, the material is compressed during the cutting process as opposed to other cutting tools. This is best for internal cutting of sheet goods such as plywood or MDF to avoid splintering or tear-out on both edges of the material.
Q: Overall length and shank diameter are essential in selecting an end mill.
A: Overall length and shank diameter are significant factors in determining proper tool holding and sheer stability. With a longer overall length, it becomes possible to take deeper cuts, but this comes at the risk of introducing vibrations. Even the shank diameter (like shank x 2 for double-ended bits) does have to conform to the collet size of your CNC machine. Thus, the majority of the router units have 1/4 inch shank. Since shank diameter and overall length are compatible with your machine, performance will be optimal with lesser chances of accidents.
Q: What are the advantages of these end mills-SiAlON- or nano-coating and TiCN coating?
A: Nano-coated and titanium carbo-nitride-coated end mills belong to the higher class and have a higher wear resistance and longevity. These add-ons give these cutting tools higher and faster cutting speeds than the uncoated ones, as well as better surface finishes. They are more beneficial when dealing with hard abrasives or high-speed machining. Initially expensive, the longevity and better performance of these types of tooling usually surpass that for bare tools in the long term.
Q: What are the main features of end mills for cutting Aluminum or other non-ferrous metals?
A: For cutting aluminum or any other non-ferrous soft metals, toothed end mills with 2 or 3 flutes that have a high helix angle of about 35 – 45 degrees are appropriate. These tool characteristics enhance chip removal and minimize clogging of the tool. Carbide end mills coated with AlTiN or ZrN for routine work with aluminum provide good performance. First remove the most of the material with a roughing end mill, it would be best to use serrated blade or corn cob or fish tail design and then do the final cut with an end mill.
