Keyway end mills are vital tools in precision machining since they are the primary means of creating precise keyways and slots into various materials. This tutorial will focus on the advanced technology of keyway end mills. It will help professionals who want to comprehend these tools further or improve their machining practices. In total, in detail on discrimination of the various types and geometries of keyway end mills as well as specific applications of suitable materials and their performance characteristics, this article is intended to assist the readers adequately to enhance their utilization of keyway end mills in the industry. In doing so, it serves its purpose of translating knowledge into action. Hence, users can make the right choices regarding these tools’ types and use.

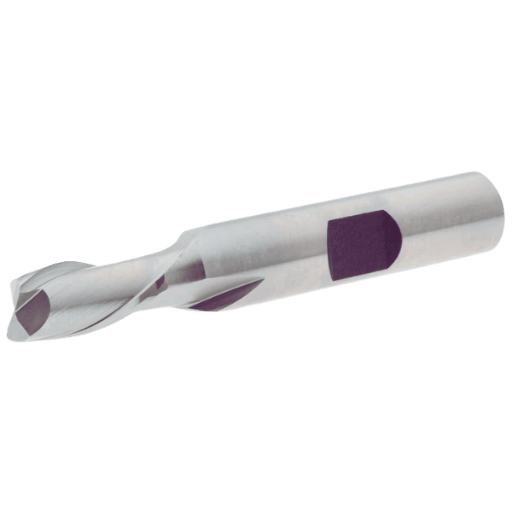

What is an End Mill and How Does It Work?
Sometimes, mills are not full of odd, full-faced cutters or grinders; they are just end mills. Colin W Griffith has put it very well when noting the cutting tools of industrial mills: End mills are multi-directional milling cutters. End mills are cutting tools designed for industrial milling applications, capable of cutting in other directions apart from the axial direction where conventional drill bits cut. Most are made of durable high-speed steel or carbide material and are available in different shapes and sizes for various cutting processes, including contouring, slitting, and profiling. The end mill has a helical cutting edge that facilitates smoother material cutting. The combined effect of the tool’s rotation and feed speed, as well as the configuration of the flutes, allows precision machining by lateral or plunge cutting of complex and delicate features.
What are the essential components of an end mill?
An end mill consists of several crucial components that serve a functional purpose regarding machining operations. The principal components comprise the following:
- Flutes: These are spiral grooves running along the tool’s length, intended to evacuate the chips effectively during cutting.
- Shank: This is the cylindrical section of the end mill, which fits into the spindle and thus provides support during operations.
- Cutting Edge: The end of a tool where the cutting is done, usually configured for various cuts according to the design of that particular tool.
- Helix Angle: This angle measures the flute surface relative to the tool axis and affects both cutting and finish machining.
- Coating: A layer applied for efficiency purposes, TiN or TiAlN coating will be utilized for wear resistance or friction reduction.
Comprehending the different elements is crucial in making a decision about which end mill to use for given milling purposes in terms of productivity and accuracy.
How is a keyway end mill different from other milling tools?
The distinguishing factor that sets a keyway end mill apart from the other milling tools is its configuration and application area. Most end mills are designed with angled profiled blades. In contrast, the profile of a keyway end mill has a small diameter and a flat cutting edge, making it possible to cut keyways and slots in shafts and other parts, demonstrating the distinct qualities of keyway cutting end mills. This tool’s shape has been developed to cut out straight vertical grooves, which are great for holding keys and stopping the components of the machinery from sliding around. Further, keyway end mills are even more rigid and have a length for improved cutting stability and accuracy for the other critical functions that require such attachments and cutting.
What types of materials can be machined using an end mill?
End mills can be used for quite a variety of materials. Most commonly, they are applied to strong and hard metals such as steel, aluminum, copper, and titanium. In addition, they are quite favorable to machining ABS and acrylic polymers, composites, and some ceramics. The material, coating, and shape of the end mills should be considered for the workpiece material in order to enhance the cutting efficiency and cutting tool lifetime.

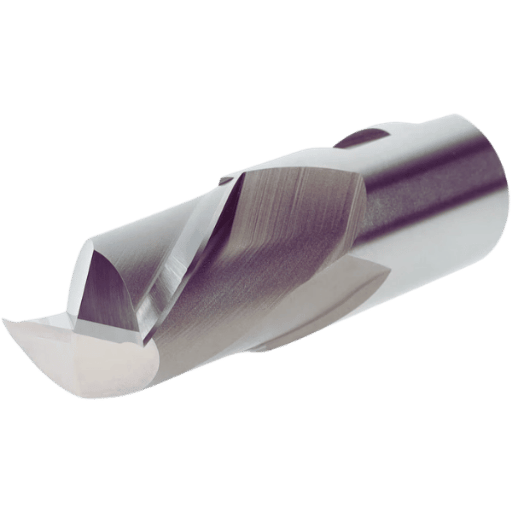

How to Choose the Right Keyway End Mill for Your Projects?
What are the key factors to consider when selecting an end mill?
Several vital factors must be considered when choosing an end milling cutter so that effective results are achieved during machining operations. Firstly, the material of the end mill is of great importance, be it high-speed steel, which is expected, or cobalt or carbide; each one suits different material types and cutting conditions. Secondly, the blade construction, the flute number, helix angle, and length affect chip flow, finish, and tool strength. Finally, special end mill coatings may add some tool lifespan and profitability through wear resistance and reduced friction, such as titanium nitride or diamond-like carbon coatings. It would be recommended, therefore, that the end mill selection is based on the material to be machined, as well as the quality of finish aimed for appropriate outcomes.
What are the differences between HSS and carbide keyway end mills?
More than just the material used to fabricate the tools and their performance accuracy, the high-speed steel (HSS) and carbide keyway end mills also vary in cost. HSS end mills are manufactured from materials with high toughness and wear resistance parameters and hence can be used on many metals and softer, less rigid workpieces. These tools are less expensive, as they are generally much more accessible for regrinding and prolonging the tool’s lifespan. On the other hand, producing a carbide end mill involves a combination of tungsten carbide particles and cobalt, which yields a tough and brittle tool. The composition of tungsten and cobalt makes it possible for carbide end mills to retain sharp edges even at increased temperatures. With these high-speed cutting tips, rigid materials are cut, and high cutting speeds are realized. Carbides, however, are costly and more challenging to use as they tend to chip and break more easily than HSS tools. Ultimately, the decision between HSS and carbide keyway end mills will depend on the machining process, the machining material, the target quality, and budget limits.
How does flute count affect the performance of an end mill?
The number of flutes equipped on an end mill is, in great measure, the one that determines how effective the tool will be as far as taking away the extra material and handling the flowing chips is concerned. End mills with fewer flutes, like the two flute types, are, in most cases, used for softer materials or when better clearance of chips is required. Due to wider flute valleys, the cutters do not fill up quickly, and therefore, this feature is essential for smooth cutting and preventing clogging. In particular, more flutes engaging four or more end mills are also used for an even better quality of the workpiece surface finish and productivity as they help to efficiently spread cutting forces over longer cutting edges in heavier duty. These are employed on more complex materials with close tolerance and fine finish, though they are not very good when removing large chips. In this respect, the concentration of flutes should be appropriate to the material being machined, and the intended results, speed, and accuracy in combination with surface standards should be achieved.

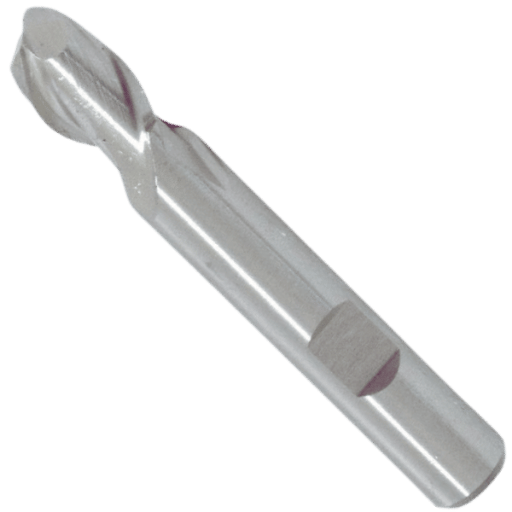

What Are The Best Practices in Keyway Milling?
How do you set up a milling machine for keyway cutting?
The first step in preparing a milling machine for keyway cutting is to ensure the machine is calibrated correctly and all the safety procedures are completed. I start by choosing the correct end mill, depending on the type of material and finish required. I also ensure the workpiece is firmly on the machine table and properly aligned with an edge finder. I then position the machine spindle over the center of the keyway location, primarily using digital readouts or dial indicators. It is clear that adjusting the milling machine speed and feed rate is very important; therefore, I selected settings that suit the material and specifications of the given end mill. I cut into a sample material, which has properties close to the actual material, to ascertain that the setup is right and make any changes to the depth and width of the keyway as required. Lastly, now that the cutter is on, I more or less maintain rigidity to the tool to be less deflected and, at the same time, make a good surface finish.
What are the common mistakes to avoid during keyway milling?
The improper alignment of the workpiece is one of the most common errors in keyway milling. This often results in cuts that cannot be accurately made and a finish that is not satisfactory. Edge finders, as well as digital readouts, should be used for careful alignment here. Another common fault is the selection of the wrong end mill type or size for the material, which can lead to dulling or breaking of the tool. It is worth noting that end mill specifications should always be compatible to the material properties and tolerance requirements. Other tool attributes such as feed and speed must be reliable to avoid bending the tool and, therefore, poor outcomes; hence, they need to be placed correctly given the milling head conditions. Chip clearance should also not be ignored since it may slow down the milling operations, thus careful planning in terms of working fluids and followers should be considered to prevent overheating and dulling of the tools and maintain the standard of the finish respectively.
How do you maintain and care for your keyway end mills?
To preserve and maintain my keyway end mills, I clean them thoroughly when the operation is finished to eliminate any debris or cutting fluid that could cause oxidation since the properties of the end are fundamental. Moreover, there are situations when this type of tool should be implemented mechanically to enhance the detail of the cut. In case of dullness, I do not wait until the end mill becomes wholly useless and use appropriate apparatus and techniques to get the geometry of the cutting edges back. The right storage is also part of this maintenance; they are usually in a dry and orderly configuration to prevent incidental damage and wetness. In addition, I also comply with the instruction manual on machine oiling of my end mills and keyway cutting machines, including their lubrication period, to ensure they can be used for a long time and mostly at their excellent capacity.

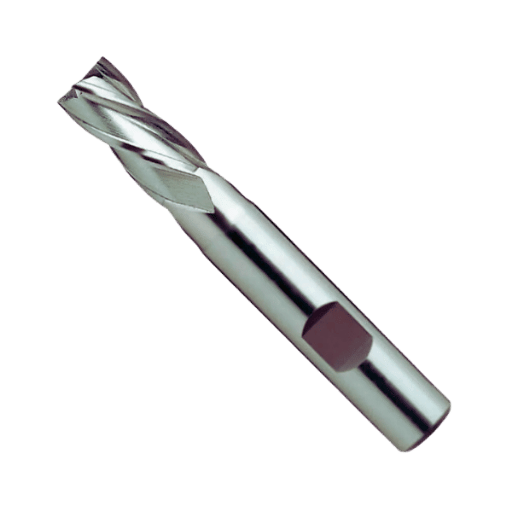

What Are the Different Types of Keyway End Mills Available?
What are the characteristics of a single-end versus a double-end mill?
Single-end mills are made by having the cutting surfaces at only one end, which enables cutting deeper and further out but usually necessitates a change of the tool when it’s dull; however, knowing the distinction of end mills can assist in choosing a suitable tool. Due to their singular structure, these mills will likely be cheaper initially. Double-end mills, on the other hand, provide cutting surfaces on the two ends of the tool; thus, it is cost-effective since the equal size of the tool allows the usage of both ends, thereby postponing the need to buy a replacement. So, they are sometimes limited by the requirement of tool holders for such types of two-end cutting tools. Also, the cutting length of certain types can be shorter than that of single-end mills. Each type has its merits and is suited to a particular machining condition and user.
What is the difference between square-end and ball-end mills?
The square-end mills have a flat end, which aids in Raymond machining, making sharp corners and flat-bottomed pockets when doing some material fabrication. They can perform slot mills, Pocket mills, and other axial cuts in lateral and plunge milling. Some of these can produce definition edges in poorly detailed parts, and this is why they are normally employed when the finished edge and control of depth are required to a certain extent.
Ball-end mills are axial cutting tools with curvilinear cylindrical projections. Thus, these types of mills can be used to machine molded parts with complex forms and smooth surfaces. These Mills are used for 3D surface contouring because they can move over and cut badly formed features without leaving sharp internal corners on the feature surface. The milled geometry of ball-end mills makes them less radical even though there are some mill angles of square-end mills; therefore, they are suited for finish cuts where the spots of surfaces and design features are the main focus.
How do four flute and two flute mills compare?
Four-flute mills are most commonly employed in operations that entail cutting harder materials since they have more cutting surfaces and enable a better finish and higher feed rates since it has more contact area with the material. The extra flutes also imply a tougher tool that is less likely to deflect and shake while being used for milling. This is important since high DC options might be used because very accurate dimensional tolerances are needed.
On the other hand, two-flute mills are considered to give better results, especially when machining soft materials or when the milling operation may include cuts that will create very many small chips. Better chip removal is also possible because of the wider interfluve distances, which help avoid clogging and harming the tool or the workpiece. They are also useful in plunge milling operations where fewer flutes reduce resistance and make it possible to stab the material efficiently. Whether using a four-flute mill or a two-flute mill depends on the material to be machined and the purpose of the milling.

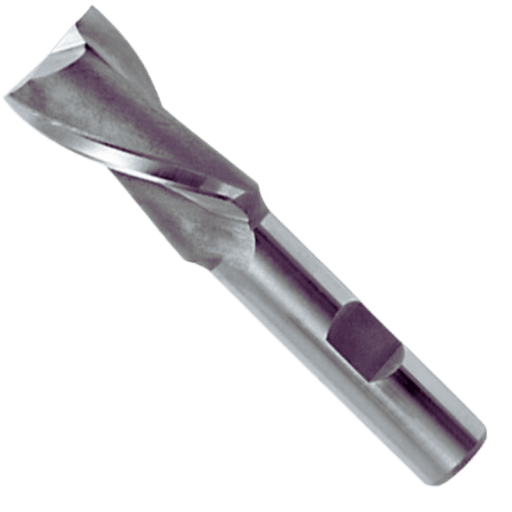

How do you calculate the proper cutting parameters for Keyway End Mills?
What is the significance of cutting width and depth?
The width and depth of cut are important operation parameters in the machining of keyway end mills, as these affect the cutting efficiency, accuracy, and quality of the operation. Cutting width means the extent of how much material is removed in a single pass, which matters in terms of how much load will be put on the tool and the machine. I had to say that a wider cut would probably increase the machining productivity, but such an operation will require more power and will likely end up with a shorter tool life. To move to the next point, cutting depth is also known as the vertical distance from which an end mill goes into the material; this affects the axial load and can affect the deflection or heat generated. Improving these control limits considers the efficiency of material removal and wear of tools and workpiece surface quality concerning practical and economical manufacturing standards.
How do you determine the ideal helix angle for your project?
Choosing the right helix angle for the end mill is essential so the cutting action can be efficient and the chip disposal mechanism can work out properly. The helix angle affects cutting forces, surface quality, and heat generation. Generally, when the helix angle is close to 45 degrees, it gives an average definition cut and surface quality on the end of the cutters. This is because of increased shearing and better chip removal, but more power may be needed. On the other hand, when it is about 30 degrees, it improves toughness and ductile vibration as it is excellent for use in complex or unstable materials. The material properties, machine capacity, and cut surface roughness should always be factored into when determining the helix design to ensure the effectiveness of the tool and cutting action.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What primary products are offered in this keyway end mills category?
A: Primary products in this category include single-end, square-end, 2-flute, and 4-flute keyway end mills. These tools are of varying sizes and shapes and are suitable for different milling works. Other variations include center-cutting, straight-flute, and high-speed steel end mills.
Q: How do 2-flute and 4-flute End Mills differ in their features?
A: A two-flute end mill has two cutters and is purposely designed to work only on softer materials or when removing a large quantity of chips is needed. A four-flute end mill has four cutters, which help in the stability and surface finish of the workpiece, making it applicable to hard materials. The decision between a two-flute and a four-flute end mill depends on the workpiece material and finish.
Q: For what purposes are single-end center cutting end mills employed?
A: Single-end center-cutting end mills are made for performing plunging motions and cutting with the end of the tool into the workpiece, making it possible to perform both drilling and milling with the same tool. They cut deeply into the workpiece, allowing for cutting keyways, slots, and pockets within the workpiece both axially and radially.
Q: Which type of end mill is most suitable for keyway cutting operations?
A: When choosing end mills for keyway cutting, workpiece material, keyway dimensions, and machining conditions should be considered. As a rule, a square end mill whose diameter is the same size as the keyway width is employed. Such work may require using a keyway milling cutter made for that purpose.
Q: Why is the degree helix essential in end mills?
A: The helix angle of an end mill is responsible for cutting effectiveness and chip removal. End mills larger than the standard helix angle are regarded as more efficient since they have a smooth action on cut materials and excellent chip removal, but a low angle gives more cutting action. For cutting a keyway, the elderly’s preferred type of flute cut geometry will be straight or low-angle flutes to improve accuracy and control.
Q: Are uncoated or coated end mills better for keyway cutting?
A: Coated or uncoated end mills for cutting keyways have their proper application and material as well. While uncoated high-speed steel end mills may be used for general keyway cutting on softer materials, higher-speed steel end mills with a larger-than-normal helix angle are more suitable for hard materials or high-productivity environments.
Q: What are the advantages of using indexable end mills for keyway cutting?
A: Indexable end mills come with replaceable cutting inserts that are sometimes cheaper for bulk mass production. They permit the fast exchange of cutting-edge tools without discarding the whole tool. Also, with such a configuration, different insert geometries can be mounted on the same tool body for various cutting operations.
Q: How can I ensure that the accuracy of my Keyway end mills is not compromised throughout their use?
A: In the above case, accuracy is lost mainly due to improper storage and handling of the end mills. Periodically assess the cutting edges for wear, damage, or cracks. Use cutting speeds and feeds that do not cause short life to the cutting tools. Maintain the tools by cleaning after use; rust will be avoided by covering the tools with a bit of oil. This measurement should be conducted on a mill and its cutting edge for essential applications periodically to confirm it conforms to the prescribed diameter tolerance limit.
