Due to the unreasonable economic factors attributed to aluminum, it is essential to use an end mill that is right for these materials. This guide seeks to help machinists with essential knowledge and technical details regarding end mills for aluminum. Factors such as end mill material, end mill geometry, end mill coatings and end mill cutting techniques are presented in this article so that the readers can appreciate the article and increase effectiveness and efficiency in the machining tasks. You will learn what kinds of end mill geometry and other features masks, when being employed, can and will affect the surface finish and tool life as well as productivity in aluminum machining. This article will be helpful to one whether he is a veteran practitioner or a novice in the machining world.

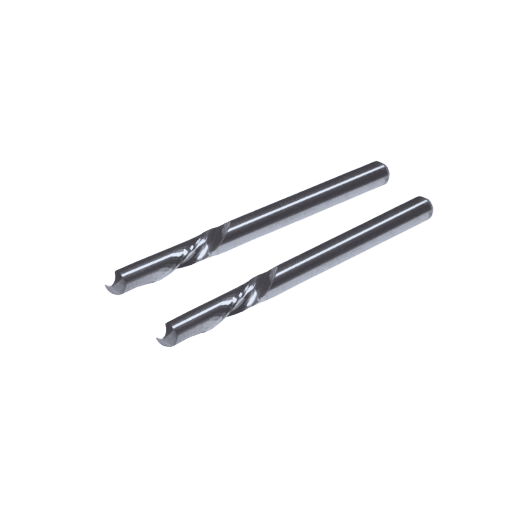

What is an End Mill, and How is it Used for Aluminum?
An end mill is a cutting tool typically used in many milling applications with spiral cutting edges located on the cylindrical or end surfaces or both. For example, when machining aluminum, end mills are used for cutting, slotting, and shaping the components into intricate designs. Such tools are made to work in relation to aluminum’s characteristics when being machined, namely malleable, and produce long, messy chips that are suitable for CNC. Using a high-speed steel end mill or cobalt or carbide end bits designed for aluminum, with the right cutting angles and flutes, will improve the cutting performance on the surface. When doing aluminum machining, an end mill is quite important, and by appropriate selection, all joints together with chips are properly removed with minimum tool wearing, and satisfactory ruggedness and geometry are achieved.
Understanding End Mill for Aluminum
Aluminum end mills are designed and developed for various applications so that their performance can be optimized. For instance, material choice in carbide or high-speed steel such as HSS is made, which helps in a cutting process that is effective in CNC applications. These tools generally have smooth flutes for chip removal to prevent high clogging of the tools and heat production. Regarding geometry, a simple preference for the helical angle will be that of a higher angle because of the ease of cutting and reduced vibrations. Special wear-resistant coatings such as TiN or ZrN are applied to the tool for even greater endurance. Close consideration and application of end mill specifications to aluminum machining cases enhances precision, shortens cycle duration, and improves surface finishes on machined components.
Types of End Mills for Aluminum Machining
When it comes to aluminum machining, there are a few classifications of end mills with distinctive utility: Roughing End Mills—These milling instruments are necessary in the machining processes because they enable the completion of set goals in worthy timeframes and within the area designed for machining since they are designed for extremely roughening cuts.
- Finishing End Mills: These end mills have relatively smooth edges and operatives to facilitate high-quality finishes on the surface at the final stage.
- Ball Nose End Mills help machine three-dimensional surfaces by providing the appropriate geometry of the tool. The tool’s rounded cutting edge is appropriate for pocketing and profiling.
- Single-Flute End Mills: They are associated with greater chip removal, so they are the most efficient when cutting softer aluminum alloys.
- High Helix End Mills: Because of higher helix angles, they promote easier cutting and less chattering making them appropriate for final touches.
End milling tools fall under critical components in framework design, it can make or break the entire effort put forth in aluminum part manufacturing.
Advantages of Using End Mills for Aluminum
I believe that operations on aluminum using end mills can best be done in the following ways. First, end mills can yield much better surface finish and accurate cuts, which are essential in the manufacturing of parts with close tolerances. Their use is associated with fast machining, which lowers production time and costs. The exact end mill tools designed for aluminum also possess coatings that help cut aluminum, which causes longer life of the tools and fewer changes, leading to reduced operational costs. These benefits help make the whole process more efficient and improve the quality of the final products in aluminum work.

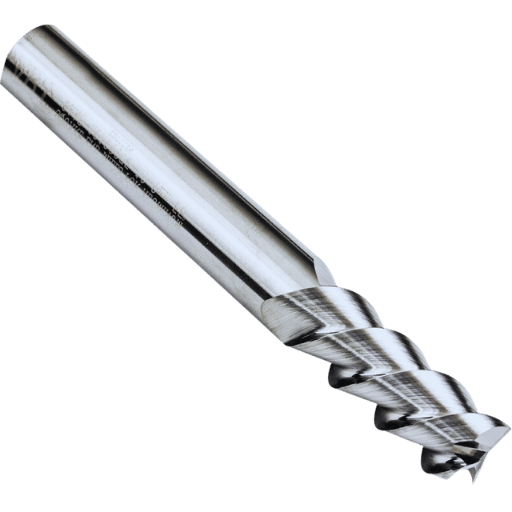

How to Select the Best End Mill for Aluminum Machining?
Considerations for Flute Count: 2 and 3 Flute End Mills
It is important to know why each of the two and 3-flute end mills used for machining aluminum has its own benefits. Due to the larger flute spaces of a 2-flute end mill, more efficient chip removal will occur, which is advantageous when softer aluminum alloys are machining quickly. This lowers the cutting forces and the chances of chipping. However, a 3-flute end mill is a halfway compromise between chip clearance and surface finish. It performs better than the 2-flute end mill on rigidity and surface finishing, thereby being suitable for high-precision processes. All in all, my decision would depend upon the project specifics, such as surface requirements and material removal rate.
Importance of Geometry and Helix Angle
End mill geometry and helix angle are among the variables that have a direct effect on machining performance and the resultant surface of aluminum workpieces. The average range of the helix angle is from 35-450, and it influences chip clearance and form-cutting efficiency. Clearer cuts and better finishes are achieved with an increased angle of attack owing to decreased cutting force and efficient removal of the remnants. Attributing it to the geometry, often the rake angle and relief angle, which determines the cutting kinematics, this standpoint is sensible. Sharp tool edges and correct relief angles help reduce tool strike work hardening containment while providing sufficient strength for high-speed aluminum machining. It has been noted that accurate geometry and appropriate helix angle selection within the milling tools are the keys to enhancing the output and accuracy of the final product.
Benefits of Solid Carbide End Mills
Solid end mills are primarily used in aluminum and similar materials mainly because of their hardness and resistance to wear. Solid tungsten carbide end mill cutters in the USA allow high-speed cutting while retaining excellent tool strength and longevity. The better performance of the solid carbide end mills with regards to rigidity means that vibrations are reduced so these tools are more accurate and have a better surface finish. It also makes them suitable for demanding jobs since they can withstand much heat or stress without deformation and can be depended upon to be effective under duress. Moreover, the fact that solid carbide end mills can retain their cutting edges also enhances the efficacy of these tools in terms of precision, which is critical in machining.
What are the Key Features of High-Performance Aluminum End Mills?
Role of Coatings in Aluminum Cutting
Applying coatings on high-performance aluminum end mills is vital to improve their performance in cutting operations and wear resistance. Among the available coatings, Titanium Aluminum Nitride (TiAlN) and Diamond-Like Carbon (DLC) stand out when performing aluminum machining, primarily due to their high hardness, which ensures thermal stability and low sliding friction. TiAlN coat imparts durability to the tool in extreme conditions of wear and heat so that the tool can be used at high cutting speeds and within higher temperature conditions without failing. DLC coatings, which are specially designed with very low friction characteristics, reduce the cohesive force between aluminum material and the tool surface, which helps to mitigate BUE, and thus, better surface quality is achieved. The choice of the coating(s) is an important factor that can positively affect the tool’s performance, owing to increased tool life and better productivity in machining operations of high-speed aluminum milling.
Significance of Cutting Diameter and Overall Length
The end mills made of aluminum and fabricated for high performance have their cutting diameter and overall length deemed critical parameters affecting tool functionalities and efficiency. The cutting diameter determines how much material the tool can remove, how much volume can be changed, and how the quality of the surface being worked on will be. The larger diameters will result to high material removal rates all which improve efficiency and decrease the required machining time. On the other hand, smaller diameters are used for fine and detailed work with very high accuracy.
Another reason for considering the overall length of the end mill in its design is the fact that it also has to be structural on the sides between reach and rigidity. Longer end mills facilitate much-needed reach for deep cavities and places that are hard to access but are accompanied by high deflection and vibration, therefore causing damage to the surface finish and accuracy. Like any other cutting tool, the shape of end mills also governs how stiff or how much deflection should be expected. When there is rim design information may be present, short-end mills should be used to achieve the required rim design information, preferably where rigidity and less deflection are necessary, more so under high-speed efforts to attain accuracy. In order to avoid suboptimal performance, damage, and incorrect operationality of the end mill for the specified technological tasks, it is possible to choose the best cutting diameter and overall length.
High-Feed vs. Roughing End Mills
It is noted that high-feed end mills and roughing end mills have different uses in milling operations, but both emphasize improving efficacy regarding the material removal processes. High-feed end mills work at an efficient rate of material removal and heat preservation by employing shallow depth-of-cut and high feed rates for a short period. They are especially recommended in bulk production settings that have some urgency to complete tasks quickly and/or minimize cycle times, most commonly found in mold and die applications or other processes requiring the machining of deep cavities with less possible vibrations.
Roughing end mills, often referred to as hoggers, are specifically made to take away large amounts of material at the very first phases of a machining cycle. This kind of end mill is usually designed with lumps on its cutting tips, that is, serrated edges, which help to cut down the forces involved and generate heat; thus, more efficient roughing can be conducted without high tool wear. In tough materials or prior to finishing operations, roughing end mills are great for removing large amounts of stock. The decision on whether to use high-feed end mills or roughing end mills is ultimately dictated by the type and amount of machining to be done, the material to be machined, and what is to be achieved in terms of time, accuracy and quality of surface finish.

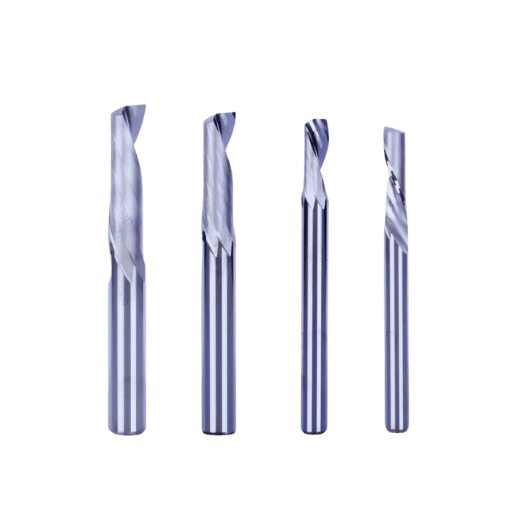

How to Optimize Aluminum Machining with End Mills?
Choosing the Right Tool for Specific Aluminum Applications
Selecting the right end mill that is appropriate for aluminum applications is a multi-faceted issue that entails considering a number of criteria, including tool geometry, tool material coating, and cutting conditions. Cross-section end-mills with high helix angles should be used since they analyze chips that make the likelihood of chip welding when cutting softer aluminum alloys quite rare. For milling aluminum, plain uncoated carbide end mills are often picked because they possess very well-defined cutting edges and are less prone to aluminum accumulation. Also, some tools designed with a coating can improve the surface quality and tool life in cutting operations, particularly for CNC machining of abrasive types of aluminum. More importantly, setting up cutting speed and feed rate in CNC machining is also essential, with higher speeds being found to be better because material removal is effective and chip adhesion is reduced. Coolant or air blast can contribute to run decay’s optimum temperature and clogging of chips. Lastly, in this section, the choice of tool should meet the particular operation requirements with increased emphasis on the efficiency of the process, the surface roughness, and the tool’s life.
Impact of Speed and Feed Rates on Performance
The end mill performance in extruding aluminum is highly dependent on influencing factors such as the speed and the feed rates. In milling, appropriate cutting speeds are important to enhance the material removal rate and avoid problems such as chip sticking and excessive tool wear. The type of machining where one uses high cutting speeds, such as aluminum machining, results in lowered cutting force and better surface finish. This must be mitigated by using appropriate feed rates so that the tool is not subjected to excessive load. Increasing the feed rate cuts the cycle time and increases productivity, but the factors should not compromise the required surface finish. Combining the parameters of dear feed rate and speed for particular aluminum alloys requires knowledge of the alloys’ composition and the tool’s configuration. Proper MPB settings, Fine Tuning, and active monitoring of all parameters and controls enhance performance, tool, and surface finish. It is also advisable to activate monitoring and routines to adjust specific parameters based on real-time machining conditions.
Common Issues and Troubleshooting
When working with aluminum during machining, factors such as chip formation, wear and tear of the tool, and superficial quality of the end product present persistent challenges that can be addressed with the correct choice of cutters to avoid the effect of chip welding, the cutting speed must be adequate. If necessary, a coolant or air blow must be used to lower the temperature so that there are no deposits. Tool wear can occur if the wrong material or design is picked for the equipment or incorrect feeding currents are applied. Incorrect speed, feed, or tool conditions could account for poor surface finishes; machining aspects could be improved to improve finishing. These problems can be tackled adequately, including better machining performance by the use of routine checks and servicing, including sharpening and changing tools.
What are the Differences Between Carbide and Solid Carbide End Mills?
Comparing Carbide End Mills and Solid Carbide End Mills
Carbide end mills and solid carbide end mills are both used during machining, however they differ in terms of the composition and their applications. Typically, carbide end mills comprise a rotating carbide cutter and a steel shank which allows for flexibility in the scope of application. They are also covered in various coatings, especially when the working conditions are severe, and they need protection during use. Solid carbide end mills, however, are made from tungsten carbide only, thus increased stiffness or reduction in flexibility is expected. With this type of end mills, it is possible to work with high rates of rotation and heating of the working parts – in other words, the speed work of such equipment is accelerated several times in comparison with other end milling cutters, which assures high accuracy machining with tighter tolerances and better surface finish. At last, the distinction between the two is based on the operation requirements such as the material to be machined, surface finish to be achieved and volumes of production.
Durability and Performance in Aluminum Milling
Aluminum milling is dependent particularly on the end mill type; therefore, the correct use of the tool is the key element of both performance and tool life. Solid carbide end mills are the most common since they do not bend or lose their cutting edges even under high thermal stress, which translates to better surface quality and productivity. Given the fast speeds needed for aluminum, these tools offer accuracy because they are made entirely out of carbide. Coated carbide end mills are next in line since their traditional wear-resistant coatings make the end mills cut faster, better, and more efficiently in hard aluminum alloys. Tool choice optimization combined with optimizing the correct machining parameters allows for better durability of tools, therefore reducing the frequency of tool replacement and finally making milling processes cheaper.
Cost-Effectiveness and Applications
When carrying out a cost analysis on carbide end mills, the functional cost, i.e., purchasing of the tool and the total tool life, should be analyzed concerning the milling applications. Solid carbide end mills are thicker and last longer. This justifies the initial high cost by saving many costs for frequent replacements in such applications, which are potentially high volume and precision and require tight tolerances. They are also more efficient in terms of time because they can be used at faster spindle speeds and hence shorten machining time. On the other hand, coated carbide end mills are initially cheaper due to the low cost of inputs and efficiency of operation in applications where moderate precision and wear-resistive qualities are required, making them cheaper on the initial costs yet optimum in a less stressful operational situation. The application guides tool selection by considering such elements as materials used and the expected end products, thereby making it possible to enhance performance and still be economical.

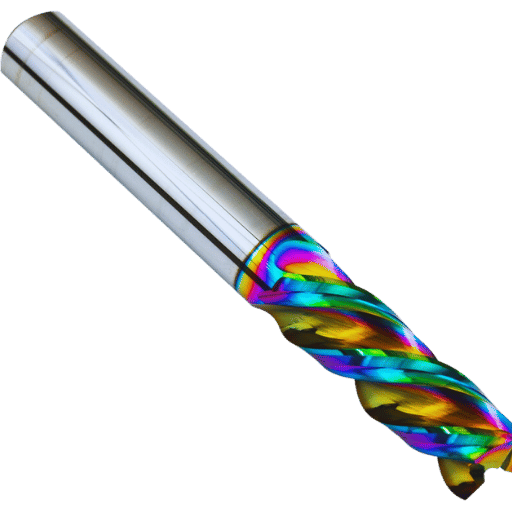

Why Use Specialized End Mills for Non-Ferrous Materials Like Aluminum?
Importance of Using Non-Ferrous Specific Tools
Specialized end mills for cutting non-ferrous materials such as aluminum, for example, are of great importance because these materials are soft and pliable. Non-ferrous specific tools are made in such a way to make the cutting more efficient by controlling the buildups edges, which is a common problem of the normal tools used in Aluminium machining. Such tools have specific designs, including sharper edges and large flutes for chip evacuation. They also avoid heat generation, resulting in smooth finishes and better wear resistance. Using the correct types of milling cutter effectively accomplishes the tasks at hand with the minimum amount of energetics directed towards making the required mechanical parts, thereby eliminating ‘over-killed’ operations of the tools.
Advantages of Single Flute and Square End Mills
Single flute end mills are very useful when machining materials such as aluminum since they improve chip removal, reduce the risks of chip packing, and decrease the amount of heat generated in the process. This type of end mill ensures great surface finishes and higher feeds, enabling productivity. Square-end mills, on the other hand, have sharp corners that aid in cutting operations and are thus specifically suitable for slotting and contour cutting. These types of end mills have a flat bottom so prominent features in more complex geometry can be relieved. The use of these end mills enhances the effectiveness and accuracy of particular machining processes so that both productivity and tool life are improved.
Specialized Coatings for Enhancing Tool Life
Coating techniques are mainly used to improve the life span of cutting tools for non-ferrous materials used in machining. Titanium nitride (TiN), titanium carbonitride (TiCN), Aluminum Titanium Nitride (AlTiN), etc. Being rigid and having low friction, these coatings help reduce wear and heat generation on the tool during operation. Some coatings properly reinforced the cutting edges and improved the heat resistance, which is essential in high-speed or continuous cutting. By utilizing the appropriate coating while manufacturing the device components, the effectiveness of the tools will be improved, the tools will facilitate low change over time, and the achievement of high quality and accuracy of machined parts will become a reality.
Reference Sources

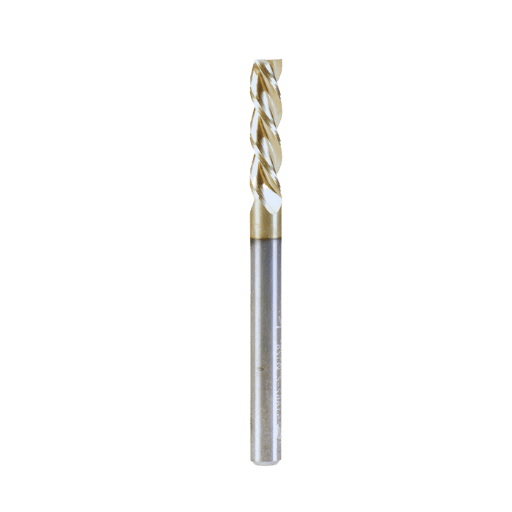

Frequently Asked Questions (FAQs)
Q: Is there any factor I should consider when picking an aluminum cutting end mill?
A: When picking an end mill for aluminum cutting, factors such as end mill material, number of flutes, which is usually 2 flutes for aluminum, the diameter of the shank, length of the cut, and whether the end mill is Zrn coated or uncoated also need to be considered. Such end mills wear out, and a high removal rate of material becomes inefficient.
Q: Why Would Anyone Use A 2 Flute End Mill to Cut Aluminium?
A: A 2-flute end mill is advisable with aluminum because it features the widest gullet for fast chip clearance, hence less risk of clogging and better cuts. This is more so targeted to aluminum milling and other non-ferrous metal milling, which need more respect.
Q: What advantages can a zrn coated end mill bring for cutting aluminum alloy?
A: Zrn-coated end mills designed for aluminum alloy exhibit benefits such as enduring high temperatures, therefore promoting better outfit durability and lower friction while cutting. Many multi-carbide-coated tools that are difficult to wear off can make them more difficult to maintain and cause problems when it is time to use such tools again.
Q: How does the shank diameter affect end mill performance?
A: The shank diameter affects the rigidity and stability of an end mill’s operation. A larger shank diameter might minimize tool deflection, increasing performance with high-speed operations and precision cuts.
Q: Why is the length of cut significant in an end mill?
A: The length of the cut is the measurement that determines the maximum height the end mill can dig into the workpiece. It is also important to select the appropriate length of cut that will be effective in removing a huge amount of material while ensuring the stability of the tool is not undermined, increasing the chances of tool breakage.
Q: Are there end mills whose design allows for cutting both rough and final aluminum surfaces?
A: Yes, there are multi-functional end mills built for profiling and contouring end mills, which are used for the operations’ rough cutting and finishing processes. These end mills typically contain technologies that are effective in all two processes for better use and performance of the end mill: Deposition used in the roughing process and a smooth surface finish deposition in the finishing process.
Q: What are the disadvantages of using ordinary end mills in aluminum machining?
A: High-speed end mills, as they are often called, are very useful, especially with aluminum and other nonferrous metals.
Q: How does the radius size on the end mill’s corner affect aluminum’s end-milling performance?
A: Corner radii on an end mill can affect the cutting edge strength and the finish of the end product. A more prominent corner radius helps lessen the tool’s wear and tear and allows higher feeds and speeds.
Q: Why is using a high-feed U-type end mill in aluminum milling wise?
A: High-feed u-type end mills can remove more material in a given period of time than high-rheological materials. Because they improve chip removal and lower cutting forces, they are well suited for heavy machining of aluminum and even other light metals.
Q: Do end mills manufactured in the USA perform better when used for milling aluminum?
A: Many end mills produced in the US tend to be of high standards, hence performing as expected. When milling aluminum, changing tools to use high-range end mills will enhance surface finish, tool life span, and general productivity.
