Coated Double Flute Square End Mill
Coated Double Flute Square End Mill
Coated Double Flute Square End Mill
Coated Double Flute Square End Mill

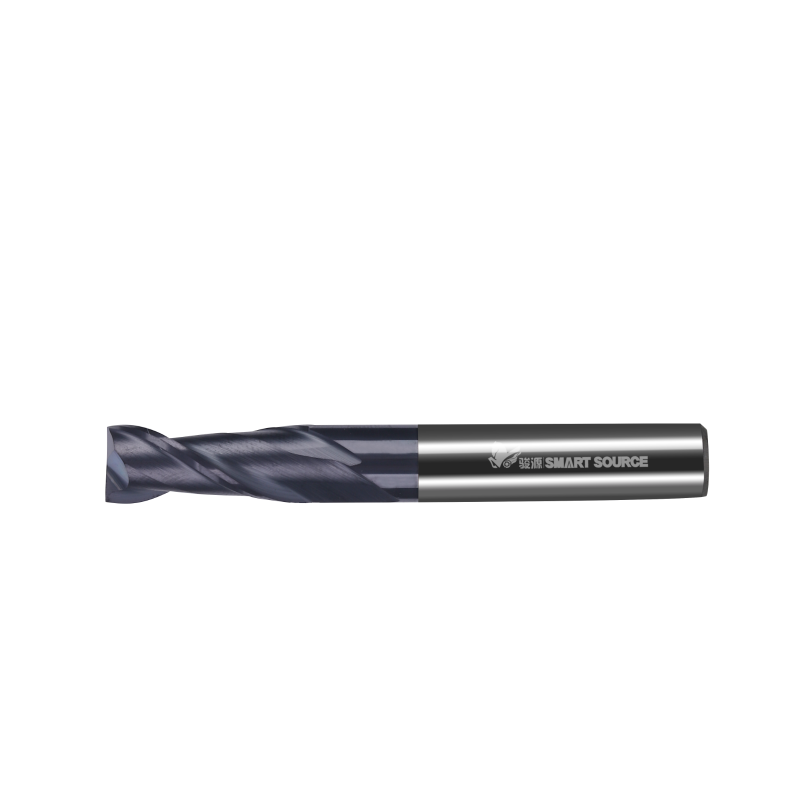

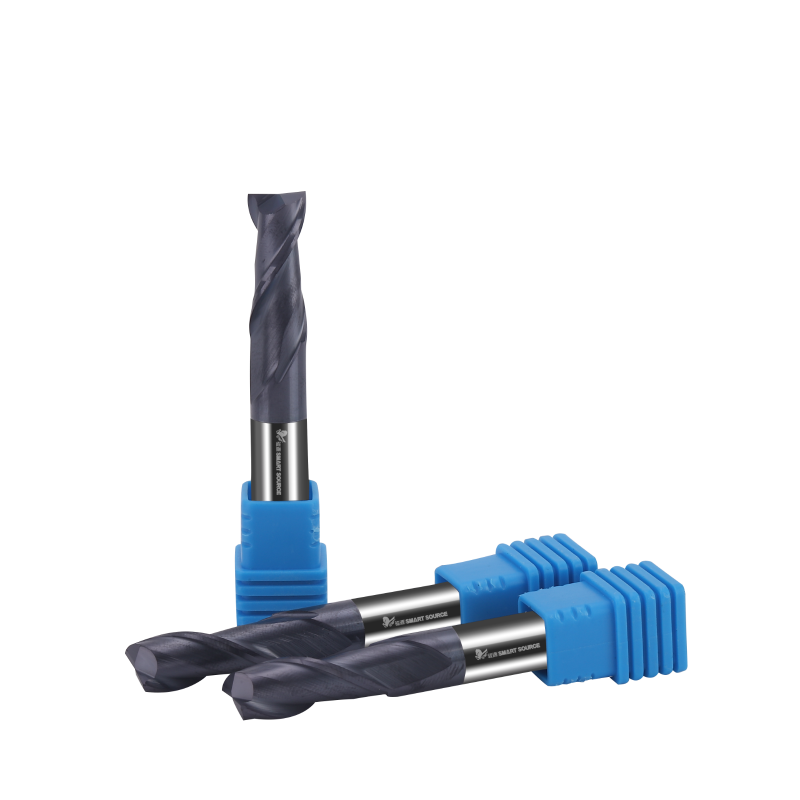

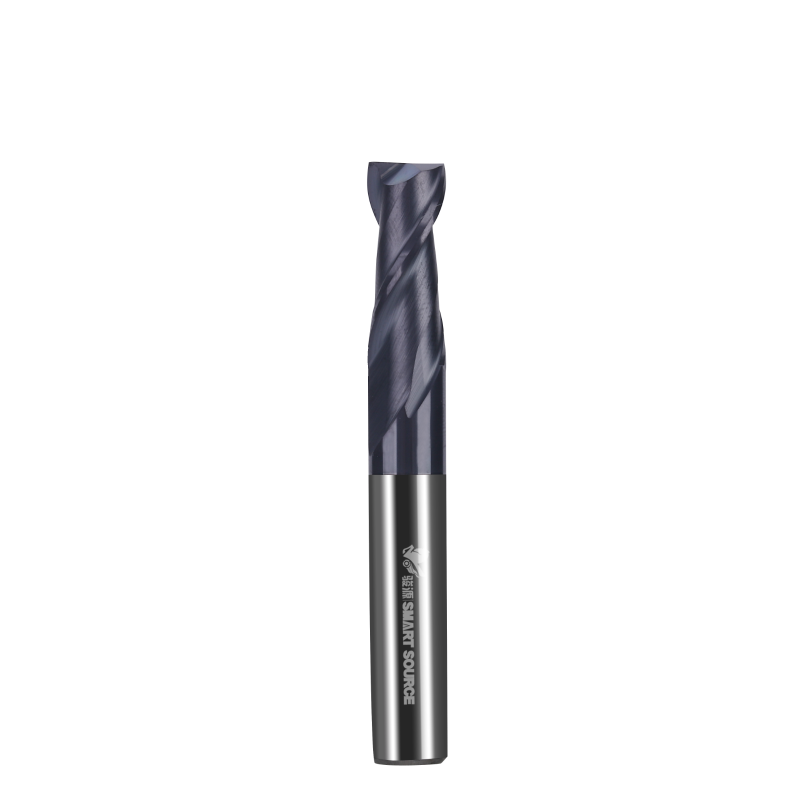

Coated Double Flute End Mill

A coated double flute end mill is a cutting tool with two spiral flutes designed for fast and efficient material removal with a coating applied to the surface to help protect the tool and improve cutting performance. The coating can be made from various materials, including titanium nitride (TiN), titanium carbon nitride (TiCN), or diamond-like carbon (DLC), and helps to reduce friction and heat while increasing tool life and cutting speeds. Coated double flute end mills are commonly used for drilling, slotting, and profiling operations in harder materials such as stainless steel or alloys.

Materials Suitable for Machining

Steel and other ferrous metals

Main Features

  • High-quality surface finishes
  • Smaller chip loads and extra cutting edges
  • Micro grain solid carbide
  • PVD ALTiN coating
Inquiry Now

Our company produces high-quality coated double flute end mill designed to deliver excellent performance even in the toughest machining applications. These end mills feature two spiral flutes and a coating applied to the surface to increase tool life, cutting speeds, and machining accuracy. Our coated double flute end mill is available in various configurations and sizes, making them suitable for a range of materials, including hard alloys and stainless steel. We use premium materials and advanced technology to manufacture our products, ensuring excellent consistency, durability, and quality control. Our coated double flute end mills are an essential tool for precise cuts and smooth finishes in demanding machining operations.



Other products you may be interested in：

Single Flute End Mill

Double Flute End Mill

Coated Four Flute End Mill

Sizes

柄径
Shank Dia. (mm)		 刃径
Cutting Dia. (mm)		 刃长
Cutting Length (mm)		 总长
Total Length (mm)
3.175 3.175 12 38
3.175 3.175 15 38
3.175 3.175 17 38
3.175 3.175 22 45
3.175 3.175 28 45
3.175 3.175 32 55
3.175 1 4 38
3.175 1.5 7 38
3.175 2 8 38
3.175 2 12 38
3.175 2 17 38
3.175 2 22 45
3.175 2.5 8 38
3.175 2.5 12 38
3.175 2.5 17 38
3.175 2.5 22 45
4 4 12 45
4 4 17 45
4 4 22 45
4 4 25 45
4 4 28 50
4 4 32 55
6 6 12 50
6 6 17 50
6 6 22 50
6 6 25 50
6 6 28 60
6 6 32 60
8 8 25 60
8 8 32 60
8 8 42 75
8 8 52 90
10 10 32 75
10 10 42 80
10 10 52 100
10 10 62 110
