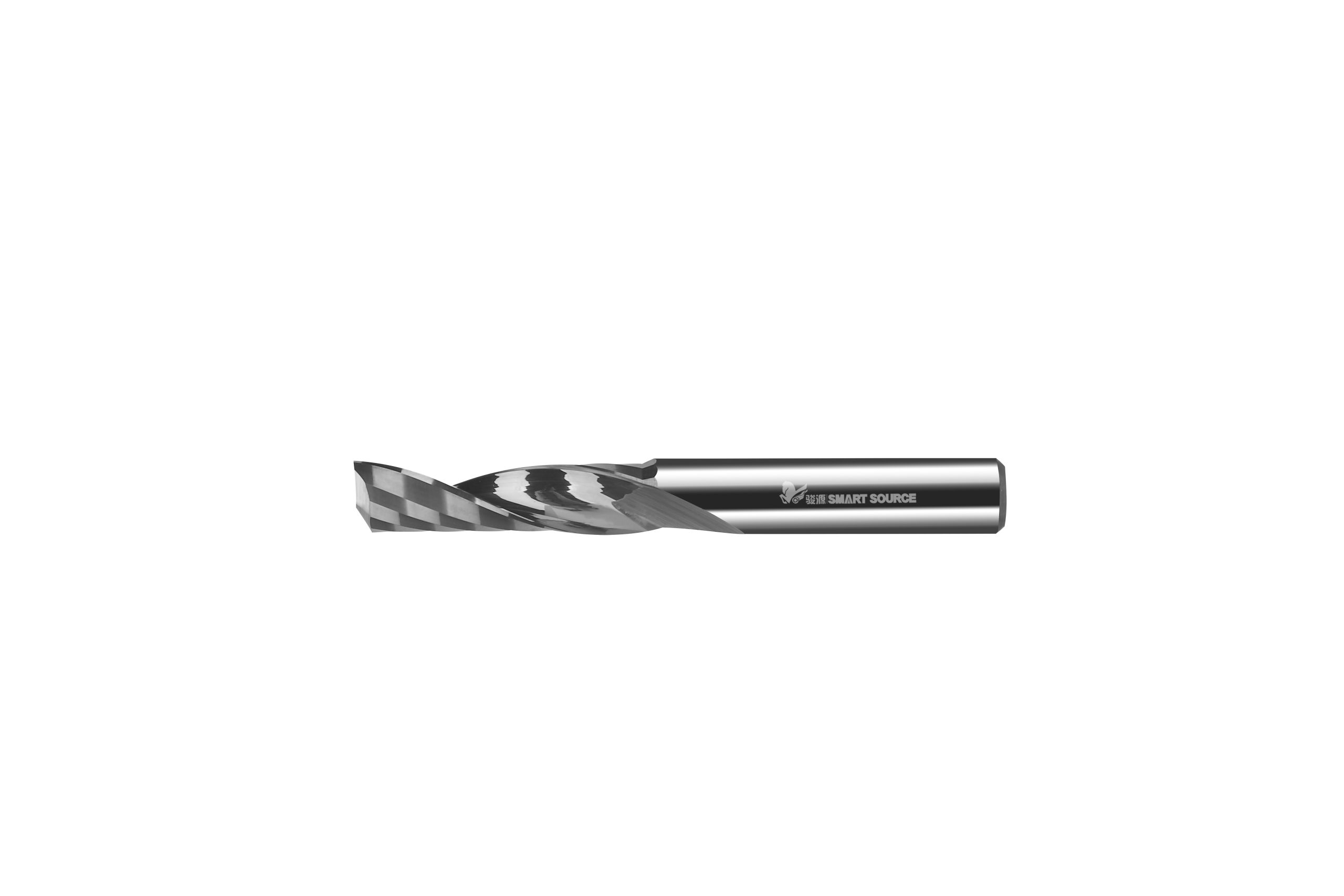

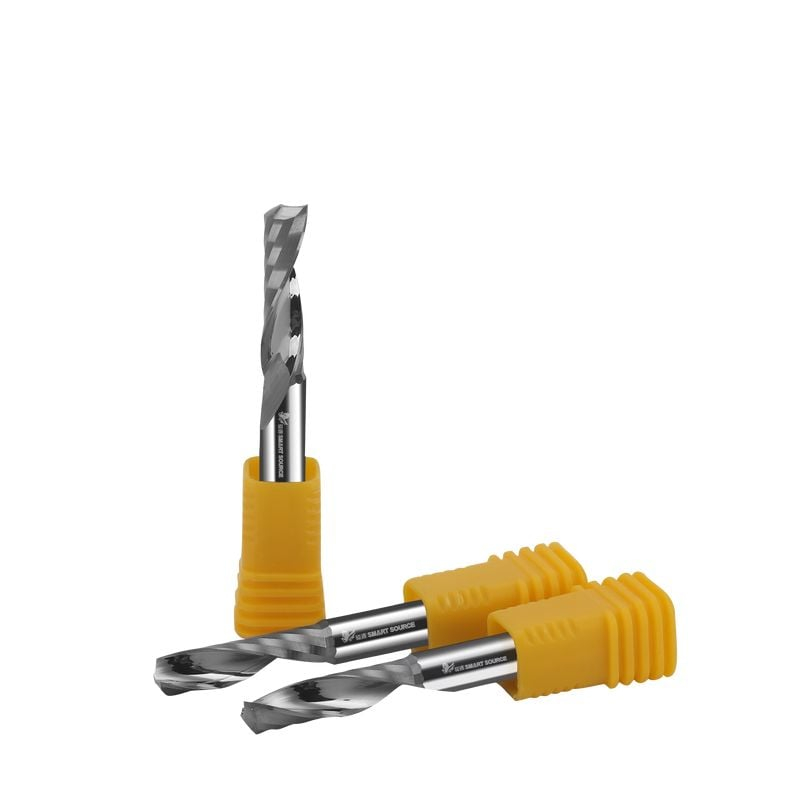

Our company offers high-quality single flute end mill for acrylic. Our tools feature a unique flute design that enables efficient chip evacuation, while reducing the risk of chipping or melting the material, ensuring precision and smooth cuts with minimal roughness.
In additional, our single flute end mill for acrylic is made from high-grade materials to ensure their long service life and superior performance. With our commitment to quality and precision, you can trust our products to meet your most demanding machining needs. Contact us to learn more about how our single flute end mills can improve your acrylic machining process today.
Other products you may be interested in：
Single Flute Compression End Mill
Sizes
| 柄径 Shank Dia. (mm) |
刃径 Cutting Dia. (mm) |
刃长 Cutting Length (mm) |
总长 Total Length (mm) |
| 3.175 | 1 | 3 | 38 |
| 3.175 | 1 | 4 | 38 |
| 3.175 | 1.5 | 4 | 38 |
| 3.175 | 1.5 | 7 | 38 |
| 3.175 | 1.5 | 12 | 38 |
| 3.175 | 2 | 4 | 38 |
| 3.175 | 2 | 6 | 38 |
| 3.175 | 2 | 8 | 38 |
| 3.175 | 2 | 10 | 38 |
| 3.175 | 2 | 12 | 38 |
| 3.175 | 2 | 15 | 38 |
| 3.175 | 2 | 17 | 38 |
| 3.175 | 2 | 22 | 45 |
| 3.175 | 2.5 | 4 | 38 |
| 3.175 | 2.5 | 6 | 38 |
| 3.175 | 2.5 | 8 | 38 |
| 3.175 | 2.5 | 10 | 38 |
| 3.175 | 2.5 | 12 | 38 |
| 3.175 | 2.5 | 15 | 38 |
| 3.175 | 2.5 | 17 | 38 |
| 3.175 | 2.5 | 22 | 45 |
| 3.175 | 3.175 | 6 | 38 |
| 3.175 | 3.175 | 8 | 38 |
| 3.175 | 3.175 | 10 | 38 |
| 3.175 | 3.175 | 12 | 38 |
| 3.175 | 3.175 | 15 | 38 |
| 3.175 | 3.175 | 17 | 38 |
| 3.175 | 3.175 | 22 | 45 |
| 3.175 | 3.175 | 25 | 50 |
| 3.175 | 3.175 | 28 | 50 |
| 3.175 | 3.175 | 32 | 55 |
| 3.175 | 3.175 | 42 | 70 |
| 4 | 4 | 8 | 45 |
| 4 | 4 | 12 | 45 |
| 4 | 4 | 15 | 45 |
| 4 | 4 | 17 | 45 |
| 4 | 4 | 22 | 45 |
| 4 | 4 | 25 | 45 |
| 4 | 4 | 28 | 50 |
| 4 | 4 | 32 | 55 |
| 4 | 4 | 42 | 65 |
| 5 | 5 | 22 | 50 |
| 5 | 5 | 25 | 50 |
| 5 | 5 | 28 | 55 |
| 5 | 5 | 32 | 60 |
| 6 | 6 | 12 | 50 |
| 6 | 6 | 17 | 50 |
| 6 | 6 | 22 | 50 |
| 6 | 6 | 25 | 50 |
| 6 | 6 | 28 | 55 |
| 6 | 6 | 32 | 60 |
| 6 | 6 | 42 | 70 |
| 6 | 6 | 52 | 80 |
| 6.35 | 6.35 | 22 | 50 |
| 6.35 | 6.35 | 25 | 50 |
| 6.35 | 6.35 | 28 | 60 |
| 6.35 | 6.35 | 32 | 60 |
| 8 | 8 | 25 | 60 |
| 8 | 8 | 32 | 70 |
| 8 | 8 | 42 | 80 |
| 8 | 8 | 52 | 90 |
| 10 | 10 | 32 | 75 |
| 10 | 10 | 42 | 80 |
| 10 | 10 | 52 | 100 |
| 12 | 12 | 32 | 75 |
| 12 | 12 | 42 | 85 |
| 12 | 12 | 52 | 100 |
