Choosing the correct 1/4 inch end mill for your CNC router is essential as far as the expected results of your machining projects are concerned – optimally, this shall be the right guide! However, this document is formatted to address the crucial points for end mill selection, including material, cutting speed, and tool geometry, among others. Most importantly, understanding the bits on selecting the end mill enables the CNC operators to optimize the machine performance center, prolong the life of tools mounted in it, and enhance the quality of the machined. The current article aims at such aims, namely at the quantity and quality of usage, type, and parameters of end mills, as well as details of parameters to be controlled to attain the effective operation of CNC.

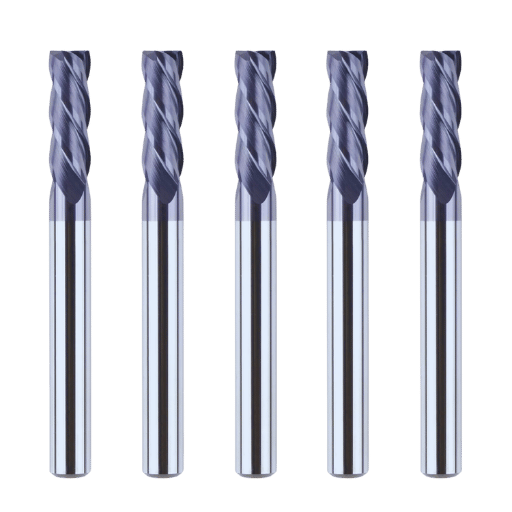

What is an End Mill, and How Does it Work?
An end mill is a unique tool used for cutting operations in CNC machining of a workpiece to facilitate shape formation. While a drill bit specializes in vertical cutting, which is only one aspect of the power of an end mill, it also enables lateral cutting or profiling as well as vertical cuts or slotting. It consists of a round-shaped main body containing complex tooling at its periphery and faces with blades of different designs. The cut geometrical forms of an end mill, the other grade of materials, and even tool coatings determine their adoption level on various machining conditions. It is important to know its structure and work principle if efficiency in making processes is to be sought.
Understanding the Basics of an End Mill
To understand the different aspects of an end mill, it’s imperative to examine the various factors that make up the device and how it functions. End mill grinds and cuts the material primarily by the shank, cutting edge, and flutes, which dictates its cutting motion. The construction of an end mill usually incorporates HSS, carbide, and cobalt, which all have different degrees of endurance and effectiveness when applied to a workpiece material.
Differences in the design of end mills are classified into different types, including the number of flutes whose primary concern is chip removal and the resultant surface quality. Tools with fewer flutes usually handle chips better, whereas more flutes improve the final appearance of the work. Wear-resistant coatings such as titanium nitride (TiN) increase the tool life. Correct end mills that fit such machining are geometric in nature, and the material content is essential in determining both elapsed time and the chances of high-quality results.
The Different Parts of an End Mill: Shank, Flute, and Cutting Diameter
In most modern references, the end mill can be broken up into several components. As such, I will mention these components in detail as follows: The shank is a cylindrical portion of the tool, which is held into the machine tool holder, and affects the rigidity of the tool during the cutting operation. The flute is the region that encompasses the longitudinal grooves of the cutter used for removing chips and determining the surface quality achieved more pronounced by the number and shape of these grooves. The outer diameter of the cutter is the length measured across the cutting edges, which is essential in establishing the extent of the material to be cut. Every one of these constituents is of utmost importance in enhancing the performance of an end mill and its applicability on certain machining operations.
End Mills vs. Router Bits: What’s the Difference?
Although end mills and router bits appear similar and perform similar functions, they serve different purposes and work with different materials. End mills are most common in metalworking, including profile… slotting…. and contouring operations of milling machines or CNC equipment. They are made to cut metals and are usually made of high-speed steel or carbide. Conversely, router bits are employed with wood or plastic applications for cutting, shaping, and grooving. These contract all these heads, swaths of convolutional geometry for routers, which are dedicated for such operations with wood routing machines, thus diverse profiles are there for many decorations and joining works. This difference is the type of materials they work on and the type of machines they are meant for, where end mills are metals and routers woods or other soft materials, respectively.

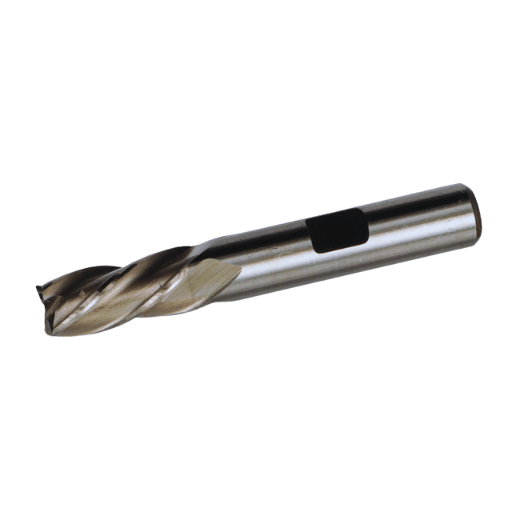

How to Select the Right 1/4-Inch End Mill for Your Needs
Choosing Between 2 Flute, 3 Flute, and 4 Flute End Mills
The working material and application requirements must be considered when selecting tools such as a two flute discover, 3 flute discover, and 4 flute discover. A 2-flute end mill is intended for nonferrous materials like aluminum as it requires little chip clearance for clogging. This provides the opportunity for increased feed, which is an advantage of roughing. On the other hand, using a 4-flute end mill is appropriate for hard materials such as steel, which require a smooth surface finish. The increased number of flutes enables finer cutting and strengthening of the tool used in discharge and contouring. Of the three options, 3 flute end mill blades are regarded as the best. They pluck the disadvantages of both devices, delivering the scoop of the 2 flutes and the clean up of 4 flutes, making it usable on several materials and processes. In any case, there is no blanket solution that an evaluation is unnecessary once it has seen all the options available; instead, just avoid breaking new grounds if it can be helped by cutting tool materials.
Why Choose a Solid Carbide End Mill?
Solid carbide end mills are regarded at the top of the hierarchy in terms of durability and efficiency for cutting operations. Carbide remains in an edge for longer than high-speed steel and can be subjected to higher speeds than steel due to the hardness of the material. This guarantees tighter cuts with less fracturing and, therefore, prolongs the life of both the tool excel and the surfaces of the parts being machined. Solid carbide is highly useful in mass production enterprises where resilience and productivity of the tools is necessary, therefore it is a great investment for such processes where accuracy and constancy is required.
How to Determine the Correct Shank Diameter and Overall Length
There are many factors to consider when defining the proper shank diameter and overall length of the end mill so that these could be efficient in the desired machining operations. The shank diameter should match with the collet or tool holder used to ensure that there will be no shaking to affect precision. The stability and rigidity can improve if a larger shank diameter is adopted, which is useful in heavy machining. The entire length also depends on how deep the cut is and how well you can reach the body part being cut. If the length is too long, deflection will occur, and accuracy will be adversely affected. Such dimensions must be adequately balanced, considering the available machine tool and the particular application’s requirements to perform efficiently and avoid premature tool wear.
What Are the Benefits of Using a 1/4 Inch End Mill?
Precision and Versatility in Cutting
As an expert in machining operations, a 1/4 inch end mill is one of my most estimable tools for its accuracy and effectiveness. This size can give room for intricate work while maintaining a good amount of strength and flexibility which is necessary for making precise cuts. It is instrumental when cutting surfaces with the same angle constructed from materials with different hardness in that it still guarantees a good finish even at high speeds. Besides, due to the capacity of a 1/4 inch end mill to rotate both laterally and axially, this tool is also effective on complicated shapes and profiles. This tool proves its worth through the consistent quality results across its different application modes.
Durability and Tool Life
The durability of a 1/4 inch end mill is improved by inscribing a carbide or hi-speed steel into its body, which is wear and heat-resistant. Such strength enables a longer running of the tool over cutting heads, minimizing the need for frequent replacements, which greatly minimizes overhead expenses. An additional performance of tools employing such well designed coatings as titanium nitride and aluminum titanium nitrate will be to cut down on friction and heat. Regular maintenance schedules making provision for sharpening and other factors are equally essential in prolonging the usefulness of the end mills. For all these reasons, a 1/4 inch end mill is trustable and able to deliver outstanding performance on a wide range of machining processes that one will find very useful in the area of precision manufacturing.
Speed and Efficiency in CNC Applications
In CNC applications, the turnaround of a 1/4 inch end mill and its productivity is of utmost importance for reducing production lead times and sustaining accuracy. This end mill can maintain a high feed rate while reducing the cycle time due to its ideal cutting shape and overall structure. Its level of productivity is also improved by providing fast orientation and speed changes necessary for complicated working processes. Due to efficient management of deflection and vibrations when in use, a 1/4-inch end mill ensures repeatability, which is crucial in high-volume manufacturing halls that combine accuracy with speed.

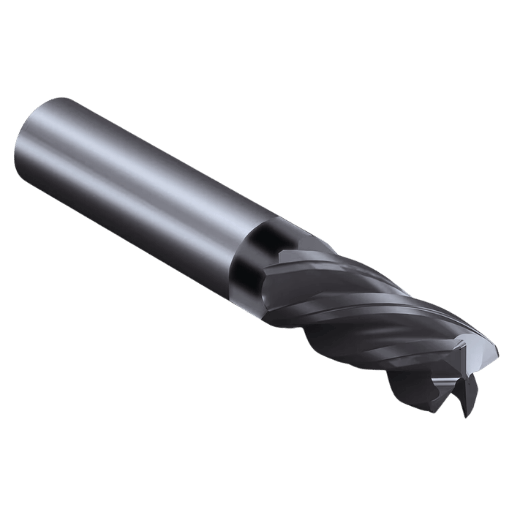

How to Properly Maintain and Store Your End Mills
Best Practices for Cleaning and Coating
Appropriate procedures, such as cleaning and applying coatings, should be adopted to maintain the end mills for their optimal use and long-term purposes. The habit of cleaning and reconditioning the end mill at the end of use of every end mill should be prioritized, where one runs a mild bristle against the end mill to remove any debris or coolant stuck on the end mill. Get rid of any harsh materials that could scrape the curves of the tools. It is equally essential to prevent vandalism of the end mill by applying a protective cover that prevents rusting. Failing to replace it on time wastes a lot of productive effort, hence the need for constant wear & tear checks. To ensure longer tool life collapse, the end mill storage should be in safe, dry, and dirtless conditions so that the performance properties are not exposed to any factors.
Storage Tips to Prevent Damage and Prolong Tool Life
An organization system and a dry place are necessary when storing end mills to prevent them from getting corroded due to moisture. It is suggested that they be kept in proper tool holders or racks to prevent any form of abuse and avoid layers of end-mills on each other’s heads. Keep them in a place that will not be hot or damp excessively; some materials may deteriorate in such conditions. Moreover, ensure that the storage area does not contain contaminants such as dust or oil that could affect the tool in any way. Achieving these storage procedures will help with the end mills’ accuracy and the tools’ durability.
Common Mistakes to Avoid
When maintaining end mills, several general principles are essential to observe to avoid making mistakes that can even shorten the tool’s lifespan and affect its performance. The first of all is cleaning one or another tool in the wrong way; this is a common mistake. For instance, using inappropriate tools for cleaning ends up damaging the surface or forgetting to clean the tool thoroughly, leading to residue build-up that alters the ability to cut. Second, lack of care in checking tools can lead to a scenario where worn out and damaged tools are used to finish the job bringing down the quality of work done at hand and aggravating other tools. Lastly, inadequate storage practices are also bad; too much moisture, heat in the storage room, or poorly stacked end mills can lead to rusting, melting, or breaking of the end mills, making them ineffective and inefficient. If these mistakes are avoided, further enhancements can be made to the lifespan and the end mills’ performance.

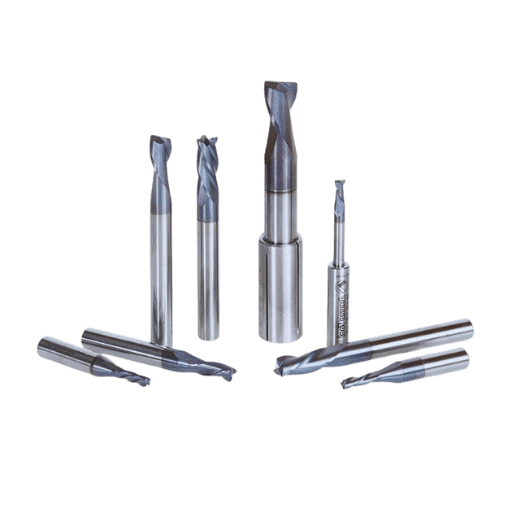

FAQs About 1/4 Inch End Mills
What Materials Can I Cut with a 1/4 Inch End Mill?
The size of a 1/4 inch end mill is also applicable to machining or cutting, whether it is nonmetal or metal. Also, it is widely used in cutting and machining aluminum, steel, and stainless steel because it can process both soft and hard metals efficiently. Most importantly, it will shape nonmetals such as plastic, wood, and composites, making it beneficial for various industrial and non-industrial uses. The end mill’s substrate or coating frequently determines the material selection, which enhances both cutting efficiency and abrasion resistance for optimal use over multiple materials.
How Do I Know When to Replace My End Mill?
In order to establish the specific instant your end mill needs to be replaced, several patterns of wear have to be analyzed. Some apparent deterioration in cutting performance is the most obvious indicator of reaching this point. Cutting performance decrease may also translate into vibration and chatter, which increases during the operation. In addition to this, physical damage becomes apparent since the cutting edges start showing signs of chips, cracks, or profile changes. Consider the finished part quality; if deterioration occurs, it is due to worn-out cutting edges. Also, handling the end mill with respect cannot be sufficient, as peculiar sounds during machining can highlight that the end mill has done its job. Periodic assessment of the condition of end mills and watching out for these symptoms will help uphold better cutting tool performance and protect the workpiece from damage.
Can I Use a 1/4 Inch End Mill for Both Roughing and Finishing?
Yes, a 1/4-inch end mill helps rough and finish, but selecting the correct type of end mill for each operation is critical to attaining the best results. When roughing, it is best to use an end mill with more giant flutes and a solid body to help cut the material faster and take more significant cuts. On the other hand, finishing requires end mills to have more flutes and be sharper cutting to enable a finer finish. There will be additional improvements in both applications as operating conditions like feed rate and speed are changed for each type of end mill and material.
Reference Sources

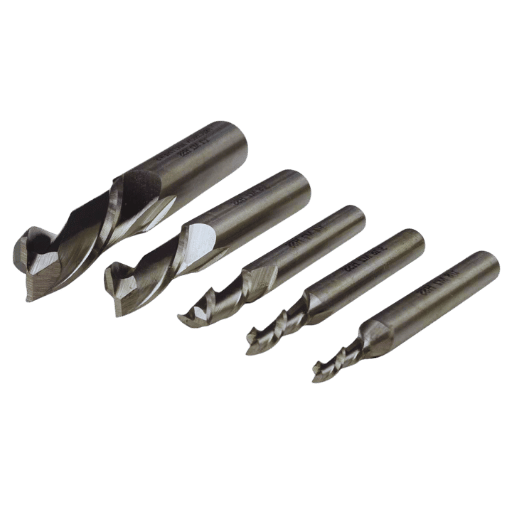

Frequently Asked Questions (FAQs)
Q: In what way does a single-end and double-end 1/4-inch end mill differ?
A: With cutting flutes on one end, the single end 1/4 inch end mill differs from the double-end mill in that the latter has cutting edges on both ends. More often than not, single-end mills are used with CNC routers, and they are superior in rigidity. At the same time, double-end mills offer greater flexibility in that they can be used upside down and rotated if the cutting edge of one end is used up.
Q: What are the criteria for pursuing either steel or aluminum end mills for my CNC router?
A: Steel end mills are quite tough, so they last long periods and are ideal for cutting tough materials. On the other hand, aluminum end mills are lightweight and cut soft materials well. However, carbide end mills are recommended for most CNC router applications as they are strong enough but not too brittle to withstand such drawings, particularly aluminum and steel.
Q: What’s the significance of the cut length in a 1/4-inch end mill?
A: The length of cut, also called cutting length, refers to the measure of how considerably the depth will be cut by the end mill. It is understood that with longer cutting lengths, cuts will be made deeper, but there is a risk of losing rigidity. Consider an end mill with a cutting length that satisfies the depth requirements of your project but also ensures even stability of the instrument.
Q: What advantages does a ball nose end mill have?
A: Ball nose end mills are perfect for 3D contouring and modeling, requiring rounded and smooth surfaces. They are incredibly efficient in the finishing process and complex geometry design. The bulge allows fluid to pass easily and provides a finer surface finish than flat-end mills.
Q: What are the advantages of TiAlN-coated end mills?
A: Effective and appropriate use of TiAlN (Titanium Aluminum Nitride) end mills improves their hardness, heat resistance, and wear resistance compared to uncoated tools. This makes it possible to utilize greater tool speeds and longer operational lifetimes, especially with the increasing hardness of the workpiece material. Other such coatings, like TiCN or AlTiN, are also used for the benefits of such applications.
Q: How do I calculate the feed rate for my 1/4-inch end mill properly?
A: The feed rate requirement depends on the material being cut, the specifications of the end mill, and the particular CNC router you have. Feed rates should be in accordance with the manufacturer’s recommendation, and adjustments should be made based on the cutting results. Heavier materials should be fed slowly, while lighter ones should be fed fast.
Q: How do an upcut and a compression spiral router bit differ?
A: An upcut spiral router bit, also regarded as an upcut endmill, Attaches the woodchip generated at the lower portions of the router and blows it up; therefore, it is used for good chip removal. However, it tends to ruin the upper surface. The compression spiral bit combines upcut and downcut spiral bits, relieving upper and lower surface tearing. It is, therefore, best used in cutting sheet materials, such as plywood.
Q: What corner radius is suitable for my 1/4-inch end mill?
A: This is related to the strength of the tool and the aesthetics of the machined part. However, cutting sharp internal corners could be a challenge with the larger corner radius. A smaller corner radius will fit those features more exactly, while a larger corner radius will achieve a better surface finish and improve the tool life.
Q: When searching for a 1/4-inch end mill for long-reach applications, what should I be careful about?
A: In long-reach applications, use end mills with an overall length and appropriate flute length greater than the standard length. Use tools specifically made for long reach, and they will most likely have reinforced shanks designed with geometries to minimize vibration. It should be noted that longer tools will also require lower cutting speeds and feeds to keep the tool stable while machining.
