Face and end milling are essential in the precision metalworking processes known as CNC machining. Each method allows the processing of a metal part but has its assignment and applications inside the manufacturing process. Knowing the difference between face and end milling is essential regarding efficiency and cost-effectiveness. The article comprehensively examines two prominent machining techniques, face and end milling. These two approaches are typical of metal-cutting services, but here are common factors, together with care, that influence selection. Milling operations are a concept that every industrial worker should understand to achieve higher production levels and better machining practices.

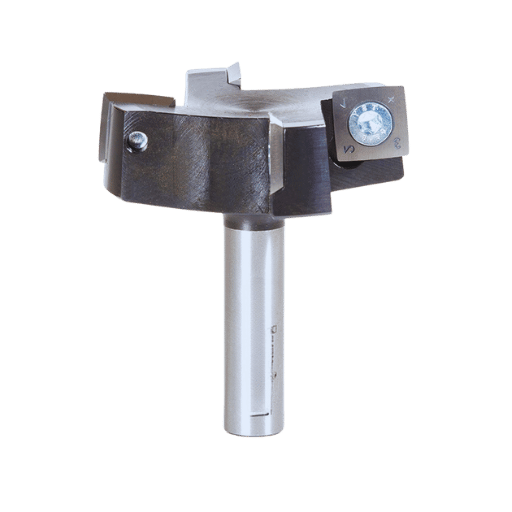

What is a Face Mill and How Does it Work?
A face mill is an element of a machine tool head used to produce flat surface areas with great accuracy. The head consists of a revolving body encircled by numerous rotatable or stationary sharp edges that can, in a single pass, remove large quantities of material. Usually, face mills are attached to the spindle of a milling machine and are more comprehensive than their diameter. The cutting blades of a rotating face mill intrude into the work, slicing the material from it until a flat surface is achieved. This makes face milling operations ideal, where good surface finish and accuracies in the dimensional tolerances are obtained, especially during the machining of surfaces over a large area.
Understanding the Basics of a Face Mill
Before explaining a face mill’s operation principles, it is necessary to consider the main structural elements and the working process. One of the most recognizable structural components of a face mill is a cylindrical body affixed to the spindle of a milling machine. This body carries several rotating heads or carbides, described as inserts or cutting edges that cut the material. The face mill can cut in a rotation so that during the milling process, the cutting edges cut into the surface of the workpiece cyclically, and thus, the material is removed. The shape of the face mills promotes easy cutting of large areas across a broad, flat face while maintaining precision and quality surface finish. They are capable of heavy-duty work and are also very important in the initial stages of a part’s production, where bulk material is needed to create the right geometry and tolerance for the surface of the part.
How a Face Mill Tool Removes Material
A face mill tool cuts away surfaces predominantly by high-speed cutting and rotating. Face mills are equipped with teeth that revolve at a given speed depending on the workpiece characteristics and the required surface finish quality. The rotating tool is fitted with cutting inserts that come into contact with the workpiece at the periphery of the tool’s arc of revolution. Excess material is cut off as well, and the surface finish is improved. The cutting inserts are often placed on the face mill in layers in the form of a spiral aiming at achieving an even cut over the materials. Gentle adjustment of the utmost rotational velocity and feed speed is important in improved surface quality and material dimensional precision during the face milling procedure.
Types of Face Milling Cutters
All cutters designed for face milling can be divided into specific categories depending on factors such as design and application sectors. The main types include:
- Shell Mills for face milling: Shell style face milling cutter consists of a mounted block used for heavy milling operations.Suitable for roughing jobs where more metal is to be removed in minimum time.”
- Hogging End Mills: With a coarse design, these mills are intended for the most aggressive removal of materials during processing operations. They are used when great Stock cutting is done in a very limited amount of time, and speed is more important than the quality of the finish.
- Indexable Face Mills—Also known as bull nose face mill cutters, these cutters support indexable, replaceable inserts that can be repositioned and replaced without changing to a new tool. This type is prevalent in the industrial field because of its low cost and various structures and configurations for the same working conditions.
All types have unique functions and advantages, such as choosing the material and determining the degree of accuracy and productivity. Thus, selecting a face mill cutter is very important as it will help improve the machining operations.

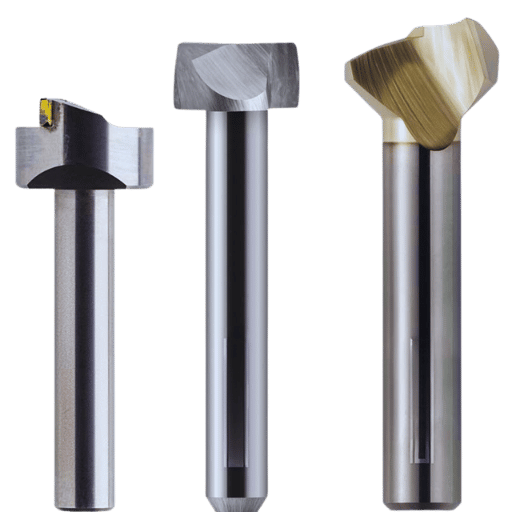

What is an End Mill, and What is it Used for?
End Mill Basics: What You Need to Know
End mills are milling tools”, tool cutters used in milling machines to do drilling, slotting, and contouring. End mills can cut not only in the axial direction as a drill bit does but laterally and axial as well because end mills can be used for shaping and contouring the workpieces. End mills are usually made of high-speed steel or of carbide. End mills have one or more twisting flutes wrapped around the rotational axis of the shaft so that they can cut material. Sizes and shapes vary considerably, ranging from end mills that are able to engrave complex pictures using the CNC machine to end mills that engage in aggressive roughing.
Common Applications of End Mills
End mills are remarkable tools that are used in various industries for different milling tasks. In manufacturing, using end mill cutters is critical for contouring, profiles, and plunging for complex shapes and features on parts. The end mills are important in these two industries as they manufacture various complex components. They also find a wide application in the manufacture of molds and stamping dies, thereby enabling the formation of accurate molds and stamping dies. Besides, end mills heeled down assist machinists in making prototypes as the designers are allowed to fine-tune and redesign product ideas before mass utilization. What separates end mills from other devices or attachments for cutting is their more complete use as they are applied for roughing and fine contouring the surface of materials.
Types of End Mill Cutters
- Square End Mills: Types of milling tools well adapted for many different purposes: Square end mills are considered the most dominant category of end mill cutters and are utilized for numerous milling operations, including slotting, facing, and profiling. All these mills, including the square-end mills, have a sharp square edge, which efficiently cuts through bulk material. End mills have round shapes on the cross-section.
- Ball Nose End Mills: This type of end mill uses a rounded cutting tip to achieve a fine finish and for 3D machining processes such as sculpting and contouring. It is extensively applicable to producing prototypes of three logarithmic shapes and three bending surfaces.
- Corner Radius End Mills. A corner radius end mill compromises between a standard square end mill and a radius end mill cutter. Its design helps mitigate chipping and extends its operational life, making it ideal for use during roughing cycles and increasing the tool’s lifespan.
These three common types of milling end mills each have particular functions, extending the capabilities and precision that can be attained in fourth milling operations in various industries.

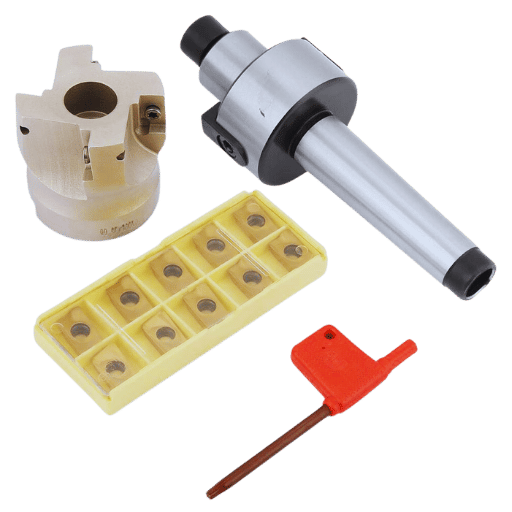

Face Milling vs. End Milling: What’s the Difference?
Key Differences Between Face Milling and End Milling
Face and end cutting differ fundamentally in their methodology and, therefore, their usefulness to the application. In face milling, a workpiece is cut using the available surface on the head of the cutter (usually in a position perpendicular to the plane of the workpiece). This method is most appropriate for machining flat horizontal surfaces, and speed is also considered high in metal removal. Conversely, in end milling, the cutter is positioned sideways or with its end vertical to the workpiece. End milling is usually adopted for profiling, contouring, and slotting exercises. End milling primarily cuts downwards and elaborately fine-tunes the workpiece about shape and form. In contrast, face milling does not cut through considerably into the workpiece except for flattening the surface.
Advantages of Face Milling vs. End Milling
However, this method appears to have shortcomings in terms of poor surface finish, which can be brought about by the increasing cutting forces over the plain surface. This reason accounts for many machinists’ preference towards face milling as it quickly removes machining or excess material. Another factor that always brings the machining time down is the fact that there is a considerable saving on coding wastage, primarily when working on large pieces of work that need a flat surface. Besides, end milling is designed to perform several cutting operations exclusively in a vertical direction by nose for specific purposes, facilitating similar jaw and all other structures. Both techniques are essential to the manufacturing process as each one has situational advantages regarding the milling applications and the desired outcomes.
When to Use Face Milling vs. End Milling
The decision of face milling or end milling is determined by the specifics of the task, including the kind of milling you plan to undertake. Employ face milling when you want to fix flat surfaces quickly, mainly flat surfaces in quite a large area. This technique is best suited for jobs with large volumes of materials to remove, but intricate details are not an issue. In contrast, choose end milling when you want to make specific cuts, such as shapes or patterns that require shapes and slots in combination with precise cutting. This technique is preferable for customizing projects requiring broad-based cuts and detailed trimming. When you appreciate the material requirements aimed for and the results expected, you can easily identify the most effective method to use in pursuit of quality attainment.

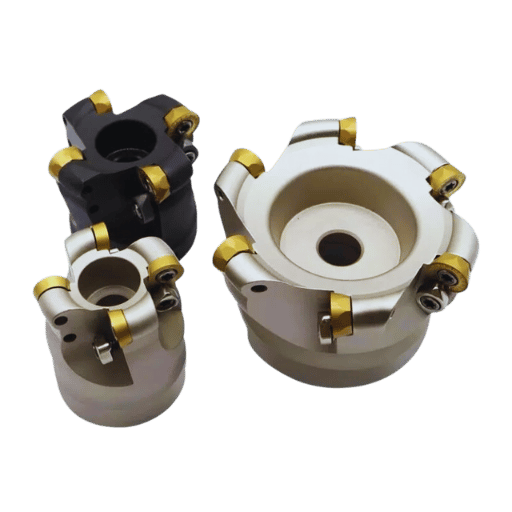

How to Choose the Right Milling Tool for Your Machine
Factors to Consider When Selecting Milling Tools
Milling tools come with different specifications, and when you are going to choose the right one for your machine, several factors warrant attention. This is especially true for factors such as the kind of milling that is going to be done.
- Material to be Machined: The workpiece material affects the type of milling tool used in any machining operation. Cutting harder materials necessitates the use of more advanced tools made of tougher materials like carbide or high-speed steel. Softer materials are worked on using tools with other coatings that improve the efficiency and longevity of the cutting edges.
- Tool Coating and Material: When utilizing an end mill, be mindful of the coating and construction of your milling cutter. Some coatings, like TiAlN and TiCN, can extend tool life and help tool resistance. The type of the tool, carbide or HSS, determines how durable, speedy, and effective the tool will be under the operating conditions of the milling.
- Machine Power and RPM are critical parameters that a machinist has to know when handling a machine tool.: The capacity of your machine as in the horse power and as in the speed at the spindle also determines the selection of the tool. It is critical that very high speed tools handle very high RPM tools and the pre hammer effect on most machine tools. Make sure that the specifications of the tool are compatible with those of the machine in order to avoid overstressing the tool or performing suboptimal operations.
After carrying out detailed analysis of the intercourse parameters, you are in a position to choose the most suitable milling tools for your particular machining process and thereby optimizing the efficiency and accuracy in your manufacturing activities.
Comparing Indexable End Mills and Milling Cutters
Both indexable end mills and milling cutters have their unique benefits that will serve different purposes of machining. Indexable end mills have primary features of the cutter with cutting edge made up of interchangeable tips that will be useful continuously without the need for regrinding, therefore cutting down on time and money, especially in mass production or large material removal operations. Flexible inserts are usually preferred because these cutters can rapidly and efficiently adapt to different cutting conditions.
On the other hand, even if milling cutters, such as solid end mills, are relatively small tools among cutting tools, they provide rigid precision unusual for most tools. The edges of rigid end mills’ solid emulsion can be ground to angles, rendering correctness in discouraging highly devised spinning milling activities. Concentration while milling solid end mills promote high speeds and high productivity while maintaining the quality of finish and absolute tool accuracy. As a result, all these costs add to the exhaustion of tools, which are becoming expensive at the end of their life cycle as they require tool changes and end mill resharpening.
However, deciding on which indexable end mills and milling cutters to use is reduced to considerations of the work to be performed, the kind of material, amount to be produced, and the precision required. These parameters are manufactured and yet most manufacturers tend to optimize how productive yet cost ineffectiveness is achieved in their processes.
Understanding Shank Types and Compatibility
In the categories of shank types, the options are almost always straight, tapered rather than threaded. Straight shanks are widely accepted, considering their essential nature appropriate for performing with quite a wide variety of machine spindles. Tapered shanks like the Morse taper have advantages over other shankstheir ability to remain concentric while providing a strong connection. Threaded shanks, which are mostly used with collets, enable fast firing and hold the tool in place well enough for use in CNC machines. The only limitation is on the shape of the machine spindles and what the machining process entails, which calls for taking into account both the tool-holding capabilities and the operational requirements to achieve effective performance as well as precision.

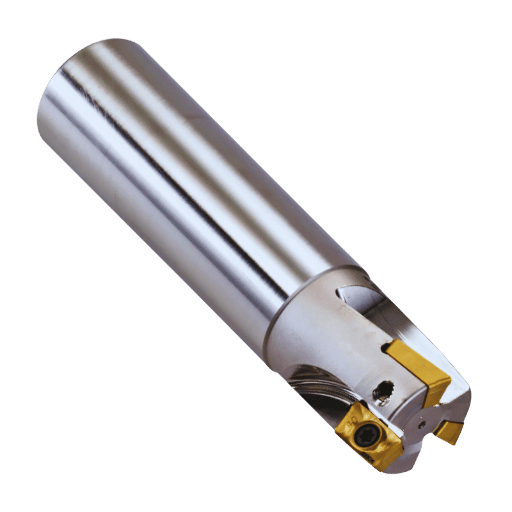

Tips for Optimizing Face Milling and End Milling Operations
Best Practices for Using Face Milling Tools
To summarize, it should be noted that to increase the efficiency and accuracy of face milling practices, some important aspects need to be addressed. To begin with, detailed consideration of the cutting tool material and its geometrical parameters is of paramount importance since they govern the machining operation’s tool life and the quality of the surface finish. High-feed face mills, in particular, work very well and are very efficient when there is a lot of material to be removed quickly and accurately, eliminating rough blank machining time. The speed, feed rate, and depth of cut should be changed depending on the type of material being machined so as to reduce tool wear and enhance the finish. Additionally, improper tool and machine maintenance, such as inadequate alignment, poor tool retention, and ignored unclamping of the toolholder, may cause unnecessary vibrations during operation and instability. Further, adopting the cooling effect or a cutting fluid or lubricating fluid on the machine works wonders in increasing the tool life, evacuating the chip easily and effectively, as well as temperature regulation, and enhancing efficiency in face milling.
Optimizing Feed Rate and Depth of Cut
It is crucial to properly fix the feed rate as well as the depth of cut since the desired machining efficiency and tool life span have to be achieved. Therefore, the feed rate has to be varied regarding material properties, cutting tool specifications, and the power units of the machining machines. Productivity can be enhanced by increasing the feed rate; however, if higher rates are recommended without balancing them appropriately, it will lead to increased tool wear and low-quality surface finish. Over and above this, the depth of cut determines the material removal capability and the overall machining cycle duration. It is important to appreciate that good depth selection depends on the rigidity of the workpiece and the fixturing. Increasing the depth too much would cause deflection and chatter. In rebuilding the engineer’s understanding of these matters, efforts to alter these factors should be based on machine trials and past behavior records of some coordinated endeavors to meet stated tolerances together with the quality levels of finish required. Maintaining the accuracy of the product and the integrity of the tools calls for regular adjustments and monitoring.
Maintaining Surface Finish Quality
It has become necessary to adopt the various process parameters to achieve desirable cutting surface quality during machining. First, tool selection is vital as employing cutters with the desirable coatings and shapes lowers the friction and enhances the surface. Also, it is essential to keep the tools sharp and change them when worn out to prevent damaging or deforming the surface. Controlling cyclical movements of the machined parts should be done by vibration-damping fixtures to avoid negative factors in the final result. Using the right volume, cooling, or lubrication materials not only serves the purpose of making cutting operations efficient but also decreases the curling deformation of the part being machined. Finally, This information can prevent problems or allow corrective measures to be carried out at the right time, especially in the production process, by controlling the process parameters in real time.
Reference Sources

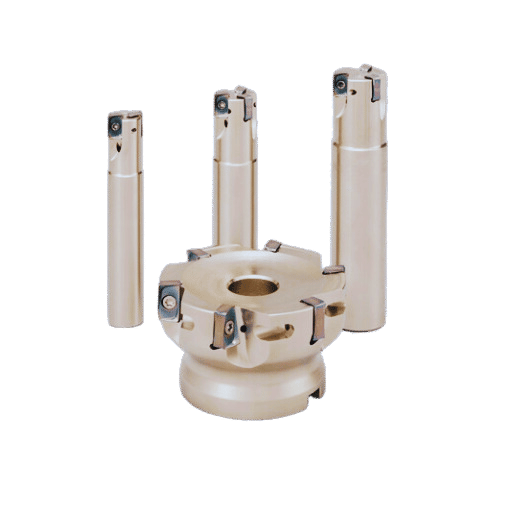

Frequently Asked Questions (FAQs)
Q: What feature provides the primary distinction between face milling and end milling?
A: Face milling and end milling are two different milling processes. For instance, face milling employs a cutter with teeth around the circumference and a flat surface to generate flat surfaces, usually at right angles to the tool axle. An end mill is a mill with cutting teeth on the end (bottom) and the sides, allowing it to perform various cutting operations, including slots, pockets, and contours. Bank milling is a movement for relatively big flat planes, whereas radius end milling makes a movement more delicate towards the exit, that is, for more complex jobs.
Q: List the types of cutting tools utilized in face milling operations.
A: In face milling, cutting tools of relatively large diameters are usually encountered: indexable face mills, shell mills, and fly cutters. These tools usually have various cutting edges/inserts that enhance material removal. Typical milling equipment includes face-indexed mills with wear-resistant, partially replaceable tips, which bring economic efficiency to operations. Cored plough cutting devices or tools are still widely used for face milling applications due to their efficiency in heavy cuts and operational flexibility.
Q: What is the principal distinction between an indexable face mill and an end mill that is solid in nature?
A: An indexable face mill employs cutting edges in the form of replaceable inserts, while a solid end mill comprises a solid piece of a tool comprising the cutting edges. Usually, indexable face mills of a larger diameter range are mainly utilized for face milling applications on flat areas with predominantly regular cylindrical mills. Unlike the central milling cutter, they allow various worn scissors without changing the device. On the contrary, solid-end mills are relatively compact and multi-use in nature, and they can be used for profiling, slotting, plunging, and other types of milling.
Q: Why would I use a square shoulder indexable end mill?
A: A square shoulder indexable end mill is relevant in both categories of tools or operators’ work, similar to a face plate mill and an end mill. 90-degree square shoulders and face milling operations can be easily created. The replacement cutting edges for the indexable inserts have reduced the cost targeted at attaining optimized cutting angles. These tools are helpful for machining, featuring both face and square shoulder milling in one setup, enhancing productivity and precision.
Q: What is the relationship between the number of flutes and the milling performance?
A: The number of flutes on a milling cutter influences cutting and chip removal efficiency. In principle, the reduced number of flutes makes it easier to remove the swarf. It is employed in rough milling operations or in the milling of materials that tend to generate long swarf. More flutes give finer finishes and are used in finishing operations. In face milling, the surface is sanded down using inserts or tools having a larger number of flutes for a smooth finish, whereas end mills are made in various numbers of flutes depending on the part and the material it is made out of.
Q: Could you define the term R8 shank and elaborate on its application in the milling machinery?
A: R8 shank is a tool holder applied to many kinds of vertical milling machines. It is a shank with a taper that goes into a milling machine’s spindle and enables optimum cutter mounting. R8 shanks are mostly used with the face milling tools, as well as the end milling tools. For face milling, an R8 shank indexable face mill may be employed for large horizontal surfaces, while an R8 shank end mill holder is used for less rough cutting applications. The R8 system provides both ease and speed of tool change and reasonably efficient runout control.
Q: Which method employs higher cutting speeds between face and end milling?
A: Milling operations cutting speeds are determined by many factors, including the tool that is employed in the process, the material of the workpiece, and the finish desired. In terms of cutting speeds, face milling is generally a more productive operation than end milling because of the increased diameter of face milling cutters and better heat distribution capability. However, the numerical value of the cutting speed will depend a lot upon such parameters as the tool being used (such as high-speed steel or carbide inserts), the material of the workpiece, and whether it is a roughing or a finishing operation. There is also some consideration of the fact that when the CNC milling machine is being programmed and controlled by feed directions and such parameters of cut velocities, the computer will do its best cut speeds based on the programmed parameters.
Q: What are the APKT1604 carbide inserts and their applications?
A: The APKT1604 carbide inserts are one type of many replacing cutting edges used on milling indexable tools. The first two letters of APKT are related to the configuration and features of the insert, while the last two numbers, 1604, detail the dimensions. They are remarkably broad-based with applications for face milling, some end milling too, indexable face mills, and square shoulder indexable end mills. They are appreciated for their universal application engagement because they can undertake rough and fine machining to a great variety of materials. The composition of such blades is based on cemented tungsten carbide, which ensures substantial cutting efficiency and wear protection.
