High helix end mills are one of the most essential cutting tools in contemporary machining, and they offer superiority in many aspects of tool applications. These end mills have been built with steep helix angles for better chip removal or cutting action, especially at high speeds. At this stage, one should appreciate the concept of helix angles and their relevance in choosing designs suited to particular materials and processes to enhance productivity and surface finish. This guide will focus on high helix end mills’ complex geometry, areas of usage in various industries, and the correct way of using them to equip the readers with tools for better choices during machining processes.
What is a High Helix End Mill?
Understanding the Basic Design of Helix End Mills
At high helix end mills, spiral geometrical flutes are used where the cutting edge angle is more than the usual 30 degrees, say 40 – 45 degrees. This particular design is crucial, especially when removing material, as it helps to have an acute angle, which in turn allows for the easier removal of the chips that are cut out. Furthermore, the spiral shape of cutting tools improves their rigidity and decreases vibration, increasing stability and accuracy. The outline of the flute is also critical because, with a few, there is better chip removal; on the other hand, more retouch cuts yield a better surface when more teeth are present. It is essential to select an end mill when machining, one that has an optimal angle of the helix and an optimal flute configuration for the machined material for efficient work in machining processes.
The Role of Helix Angles in End Mill Performance
The impact of helix angles, in particular, is immense when it comes to the performance of end mills as they relate to cutting efficiency, chip removal, and stability during various machining operations. End mills with higher helix angles tend to be greater than thirty degrees and encourage better flow of the chips and reduced cutting forces, resulting in smoother finishes and longer tool life. If, on the other hand, the helix angles are low, there are specific situations in which they are preferred, for instance, while machining hard materials. In such cases, it helps to increase control over the vibration of the cutting tool. In other words, it is essential to choose an angle that corresponds with the dog bone material and the preferred machining process to enhance the performance and precision of the machining process.
Advantages of Using High Helix End Mills
There are several advantages of high helix end mills that improve machining performance drastically. Firstly, the design allows an effective chip evacuation and minimizes the chance of chip recirculation, contributing to the tool’s thermal generation and damage. This causes longer tool life and finishes since the chips are not conserved in the cutting zone. There are also advantages since high helix angles reduce cutting forces, thereby minimizing the load applied to the cutting tool and the machined part, resulting in better accuracy. This characteristic comes in handy when there is a need to machine softer metals that require smooth surfaces. Upgraded rigidity and damping have also been associated with high helix end mills that enhance stability during machining, allowing for higher feed and improved productivity.
How Does the Helix Angle Affect Cutting Performance?
The Impact on Chip Evacuation and Cutting Force
Combining the spindle blade helix angle and the rpm is necessary for machining because it dictates the rate at which chips leave the cutting area and the level of cutting forces produced. Increasing the helix angle increases the aggressiveness of the cutting action, which, in turn, promotes the flow of chips. This favor mitigates the build-up of chips within the cutter zone, therefore minimizing the likelihood of the tool becoming blocked and stress that is thermally induced on the cutter. On the other hand, low-angled cutters could work on more complex materials and aid in removing the chips pinned on the workpiece, more effectively stabilizing cutting forces and thus eliminating vibration. In light of the above, it is critical to note that too many or unfavorable helix angles lead to wasteful machining practices, which directly entail a waste of tools and potentially jeopardize the accuracy of parts machined due to undesirable deflections of the cutting tool during operation.
High Helix Angles vs. Low Helix Angles
When it comes to machining, tools with high and low helix angles significantly influence the cutting efficiency and the handling of the tool. Most clearing angles of the helical edge remain within 30-45 degrees due to the ease of force experienced in the process, proper chip removal, and the difficulty of the material building up on the tooltips. Furthermore, because they are made of solid materials, these tiny structures also cause less wear on the tools due to their cut contact areas and improve surface quality.
On the other hand, a helix angle between 20 and 30 degrees is more effective when dealing with more rigid materials. When such low angles are used, the radial forces acting on the tool increase, thereby increasing the tool’s stability and preventing tool vibration and deflection. This stability is essential in maintaining accurate dimensional limits to avoid tool breakage. The regions encompassing low helix angles contribute to a slower cutting rate, which might make chip removal difficult and lead to overheating of the tool, which may lead to tool wear, necessitating proper planning. Hence, what determines which angle to use must be the material in question, the results expected after the machining, and the machine parameters.
Choosing the Right Helix Angle for Your Machining Application
The choice of a suitable helix angle for a machining application is based on the machining material, the finish required, and the application of use. It is a common finding in industry and expert advice that in softer materials that require machining, high helix angles (30 to 45 degrees) should be used in most cases due to the improved efficiency and smoother finishes achieved. For more complex materials, however, low helix angles (20 to 30 degrees) have the advantage of stability, lower cutting forces, and vibrational reductions essential for precision. Parameters such as feed rates, cutting speeds, and tool geometry regarding the helix angle selection must be mutually considered to maximize performance and enhance the tool’s life. In this respect, machining specialists should analyze the peculiarities of practical tasks as they were material benchmarks for choosing helix angles, including their sources.

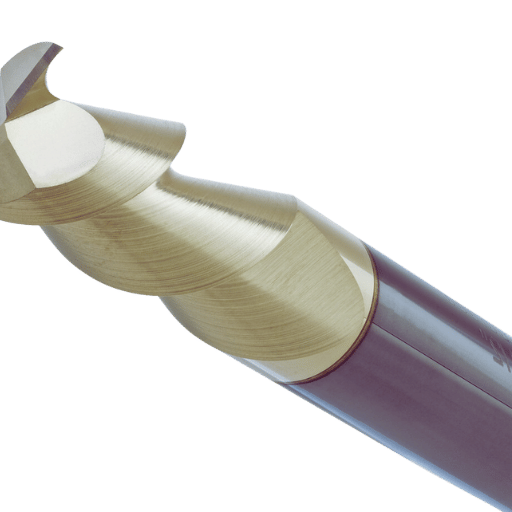

What Materials Are Suitable for High Helix End Mills?
Working with Aluminum Alloys
Due to the low density and good machinability of aluminum alloys, they are ideally suited for high helix end milling. The high helix angle improves the process of removing chips during cutting with aluminum tools to prevent the formation of a built-up edge and enhance the quality of the surface. Most practitioners, for instance, use high-speed machining with high helix end mills, as such techniques produce the desired surface quality measurable on aluminum since the tools efficiently control the softness of the material. One must be very careful in applying the various cutting parameters such as feed and speed so as not to exceed threshold values, which in turn would cause overheating and bluntness of the tool, thus affecting the efficiency and durability of the tool, respectively.
Using High Helix End Mills on Steel and Other Alloys
High helix end mills can also work on steel and other alloys, but with caution, as the material properties must be considered. The greater the number of radial cutting edges, the better the chip can be removed from the workpiece when machining it with more rigid materials like stainless steel. This design helps use tools more effectively because of the reduced cutting force and machining load, which results in higher feed rates attaining better precision. Nevertheless, the right helix angle, especially steel, should be selected between 30 and 45 degrees for chip evacuation and edge strength needs. Also, cutting parameters, such as speed, feed rate, and cooling methods, must be considered to prevent overheating, which can cause tool loss or destruction. Tools like these will perform best with a good surface finish with regular feed and low cutting speed, thus lowering the wear of the cutting tool.
How to Optimize Tool Life for High Helix End Mills?
Best Practices to Reduce Tool Deflection
The importance of reducing tool deflection to uphold precision and maximize the lifespan of high helix end mills machined cannot be emphasized more. Based on the best available industry data, there are several best practices as listed below:
- Use Shorter Tool Lengths: Avoid long cutting tools; instead, use short cutting blades where possible because decreasing the tool height minimizes the moment arm and, thus, the deflection caused by undercutting loads. End Mill tools designed for minimal overhang maximize the tool’s rigidity and stability during operations.
- Optimize Tool Path: The efficient paths of the tool go a long way in decreasing the cutting forces. Engaging in techniques that include adaptive tool paths and climb milling can help reduce how much of the tool engages with the material, reducing the tool load and, thus, the deflection.
- Material and Tool Selection: The suitable tool material, geometry, and grade must withstand and efficiently perform work above the given threshold on complex material. Use tool grades with high rigidity and wear resistance to eliminate flexural stresses during cutting.
- Optimize Clamping and Setup: Different methods, such as providing an appropriate clamping pressure, are essential to prevent shock and motion within the workpiece. The proper arrangement of the fixtures can significantly affect the stability of the workpiece and the cutting tool, improving accuracy.
- Adjusting Cutting Parameters: Optimal cutting speeds and feeds should be determined to lessen any undue forces on the tool and maintain productivity. Using slower feed rates combined with the optimum spindle speeds may help reduce deflection.
By adopting such techniques, operators will be able to achieve higher machining efficiency and precision and, at the same time, extend the service life of high helix end mills.
Techniques to Minimize Chatter and Vibration
- Incorporation of Damping Solutions: Introducing damping materials or components in the machine setup can help prevent vibrations and reduce chatter. Such might include viscoelastic materials or energy-absorbing vibration isolation mounts.
- Tool Geometry Optimization: Altering the corner radii and flute shapes of tools, for example, has a softening effect on load distribution. This alteration enhances cutting action while minimizing the chances of inducing vibration.
- Machine Tool Rigidity: If measures are implemented to ensure the machine tool structure is stiff and intact, vibration will be considerably reduced. Regular checking of machine tool wear and tear and stiffer machine tool constructions will be used to enhance stability.
- Dynamic Balancing: Workplace procedures encompass pre-use dynamic balancing of the tools to avoid vibrations during use. An unbalanced tool induces excessive vibrations during operations. Thus, regular checks and rectifications are necessary for the tool to function correctly.
In that way, manufacturers can reduce a lot of chatter and vibrations, improving the machining outcome, tool life, and surface quality.
Maintaining Cutting Edge Integrity for Extended Tool Life
Paying attention to cutting-edge integrity is critical to ensure that the cutting tools last long and are effective. Some of the key ones include:
- Proper Tool Selection: Enhancing cutting-edge performance depends on selecting suitable tool material and coating relative to the machining application. Such tools may be made of high-speed steel or carbide and can be coated with high-performance TiN or TiAlN, both resist heat and wear.
- Optimal Cutting Parameters: Finding the cutting speeds, feed rates, and cut depths for a given machining scenario is imperative. Keeping all the working variables within agreed limits prevents overheating and undue loading of cutting edges, thus preventing chipping or drawing.
- Regular Tool Inspection: This helps one to determine the amount of wear of the tool and possible edge damage that is not yet critical to the operational performance of the tool. Preventive maintenance can thus avoid preventing tool failure at unplanned times and further loss of production due to machine breakdown.
- Cooling and Lubrication: Appropriate systems of flooding and lubrication on the cutting can bring down the ambient temperature and the heat-induced friction on the cutting edge. This aids sharp edges and reduces oxidation or heat-related fatigue.
By following such practices, manufacturers can ensure long cutting edges, increased tool life, and increased productivity in machining operations.

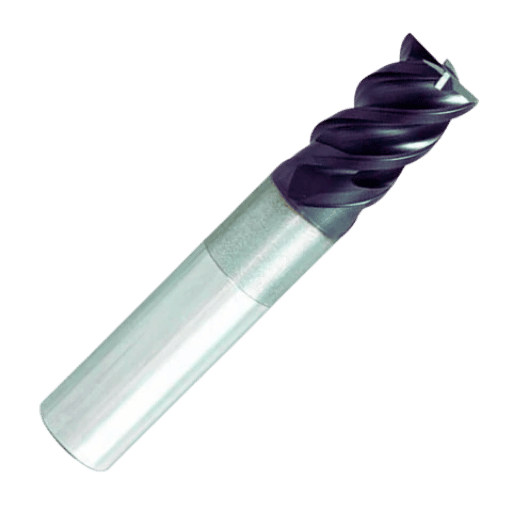

When should we use carbide end mills over other materials?
Advantages of Carbide End Mills in High Helix Applications
In high helix applications, carbide end mills have several distinct advantages that are mainly due to favorable design and mechanical properties:
- Increased Chip Removal Rates: In a carbide end mill, the angle of the helix is so steep that effective chip removal is possible when cut by this cutting tool during aggressive cutting operations. Consequently, higher feed rates are economically possible, along with better surface finish due to these features.
- Improved Tool Strength and Wear Resistance: Carbide has properties that are superior to those of other constituents, namely strength, cold wear, and cutting-edge tip wear. This longevity of cutters is advantageous, especially during high-speed and high-efficiency machining, where the degradation of free-cutting tools increases.
- Enhanced Precision and Surface Finish: This feature is possessed by high helix carbide end mills so that the cutting is smoother and there is reduced vibration, which is less or no chattering. This feature contributes to the accuracy and improves the grade of the finished product, which is particularly important where high precision is required.
These complementary features make the selection of carbide end mills optimally suited for high helix applications and enhance efficiency and effectiveness in machining operations, particularly in general-purpose end milling processes.
Comparing Carbide End Mills to HSS and Other Alternatives
When carbide end mills are contrasted with HSS and other alternatives, several parameters come into consideration, such as the materials’ properties, cost, and suitability for various applications.
- Material Properties: The carbide end mills have outstanding hardness and resistance to wear compared to HSS end mills, thus they are more efficient when working at elevated speeds or using abrasive materials. On the contrary, HSS end mills have some degree of flexibility and resist shock loads but are not as durable and require replacement often.
- Cost Considerations: The initial cost of use of carbide end mills is usually higher than that of HSS tools; however, due to the tools’ longer life and better machining performance, the operating/cost is sometimes reduced. It is common for users to find that the cost incurred in acquiring carbide at the onset is recovered through infrequent replacements and minimal lost time.
- Application Suitability: The end-mills are most useful in situations requiring a lot of feed with high precision and speed. Other Low-end applications, such as HSST on softer or budgeted applications, still have areas where they can hold ground.
In conclusion, even though the provided evidence indicates that carbide end mills have pronounced benefits concerning performance and durability, HSS tools might still be advantageous in certain situations when the primary focus is on the cost and type of the material. This balances these options and suggests that the particular machining needs and objectives will determine them.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is an end-mill helix angle?
A: An end mill helix angle is the angle of the flute cylindrical portion relative to the axis in which the end mill resides. The evacuation of chips and performance in cutting is dependent on this parameter. Helical angles between 30° and 60° are standard, while cutting tools with a more significant helical angle generally have better chip removal and cutting action.
Q: How does a higher helix angle affect end mill performance?
A: Increasing the axial rake also enlarges the end mill cavity’s resultant inclination, bypassing a chip during cutting. Angles such as 60° usually lead to fast cutting action, which is smooth and easy to use to remove chips from the cut. This can help improve surface finishes and increase feed rates but potentially reduce the tool’s rigidity, especially when these are adopted for the machining process of more rigid materials.
Q: What are the advantages of using high helix end mills?
A: High helix end mills provide several benefits from the improved chip removal and cutting forces as well as higher feed rates and are easy to use even with hard metals, especially for efficient milling of hard materials using square end mills with high efficiency of machining tires and suitable for elevated hardness materials. In addition, high helix tools minimize or eliminate vibration under certain conditions and improve surface finish.
Q: What is the optimal cutting efficiency range of the end mill helix angle for a specific material?
A: The optimal helix angle varies from material to material. Softer materials like aluminum prefer increased ideal maximum angles between 50° and 60 °, which results in better and faster feed rates and even better chip evacuation. Stiffer materials, however, prefer low ideal maximum angles of 30° -45°, which provide extra strength and stability. Machinists should take material properties into account while choosing the required milling tool.
Q: Would you say a standard end mill is the opposite of a variable angle helix end mill?
A: In the case of standard end mills, the helix angle maintained throughout the length of the flutes is the same, whereas in variable helix end mills, the arrangement has each flute containing different helix angles. Variable helix designs also assist in the reduction of harmonics as well as vibration when cutting in a bid to solve any potential issues or complications to thin wall machining or complex materials machining processes.
Q: In what way is the axial depth of cut related to the changes in helix angle?
A: However, increasing the helix angle usually reduces the recommended axial depth of the cut. This is because the higher the helix angle, the less the tool can implement a certain amount of cutting. For example, a 30° helix angle may allow for deeper ‘dive cuts’ than a 60° helix radius. This factor will vary depending on the tool’s usage and the deformation parameters selected in the case bearing this helix angle.
Q: Is it possible to perform slotting with high helix tools?
A: Even if high helix tools may be utilized for slitting, this cannot be the preferential method for all slitting operations. It will be noted that when clearance for deep slots is cut with high helix angles, these angles pull the endmill into the workpiece. When slitting full width, better stability and chip removal seem to be provided due to lower helix reap angles of 30 – 40 degrees. However, when slitting partial widths or when slitting in softer materials, high helix tools do perform well.
Q: What is the relation between feed rates and helix angles?
A: Generally, the higher the helix angles, the faster the feed rates because of enhanced chip removal and lower cutting forces. However, it is not always correct to say that the feed rate increases with an increase in the helix angle. In some situations, a very high helix angle may necessitate a slower feed rate to avoid excessive dings, particularly in the case of hard materials or while deep dull.
Q: When deciding between 45° and 60°, there is a dilemma about which angle to adopt. What factors play a significant role?
A: Several factors should be considered for choosing a 45° or 60° helix angle. The main factors are machining material, cutting parameters requirements, and particular applications. A 45-degree helix angle provides an optimum tool chip loading and evacuation for machining various materials. A 60-degree makes it possible to handle more chips, and it is therefore recommended for softer materials and high-speed machining. Otherwise, it may lack the rigidity required for machining hard materials or deep cuts.
Q: What importance should a drafter give to the helix angle while choosing the end mill cutter?
A: Yes, the helix angle should be considered when selecting an end mill because it has severe effects on cutting performance, chip removal, and machining efficiency as a whole. Adapting the correct helix angle results in better surface quality, increased productivity, and longer tool life. Operators of machines, such as cutting machines, ought to pay attention to the helix angle for other factors, including the cutter workpiece, working conditions, and the application of the tool.
