When it comes to precision machining, all the processes associated with selecting cutting tools are of utmost importance in influencing the effective manufacture of precision machined components. Out of the multiple manufacturers’ tools available, the 1/2-inch solid carbide end mill has proven to be user-amenable and can perform in various fields. This guide aims to give sufficient information regarding this advanced cutting tool, its design features, materials used, and places it can be used. We shall further identify the benefits of solid carbide tool material as opposed to high-speed steel (HSS) in terms of cut quality and usability. Besides, they will understand the selection, maintenance, and operation criteria that extend the service and efficiency of the end mill. The readers of this article, both practitioners and amateurs, should be able to enter into a working relationship with the 1/2-inch solid carbide end mill in deciding and performing machining tasks.

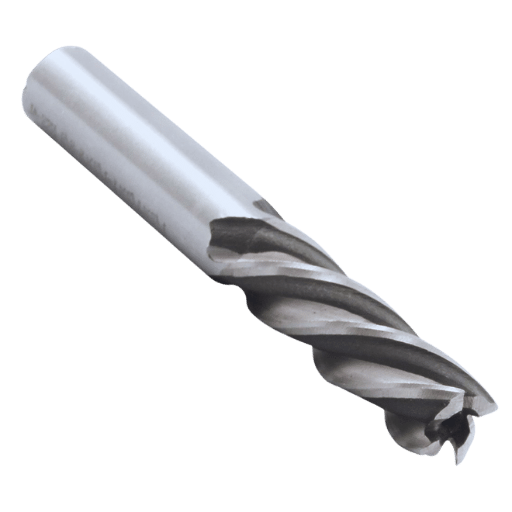

What is a Solid Carbide End Mill?
A solid carbide end mill is classified under the category of cutting tools utilized in machinings and is constructed for precision and efficiency, mainly during usage. These tools are made of 100% tungsten carbide with a fine grain and are quite popular and more durable than their high-speed steel (HSS) equivalents out of the box. The sharpener’s solid carbide structure is appropriate by reason of cutting activity in materials with stainless steels, titanium, and hardened alloys. It can withstand higher speeds and feeds without losing its cutting edge, which makes the solid carbide end mill suitable for delicate work, fine finishes, and long tool life.
Key Characteristics of a Carbide End Mill
Solid carbide end mills deliver performance standards that exceed those of any conventional cutter owing to certain crucial characteristics. First of all, they feature remarkable strength which even goes beyond that of high speed steel, achieving often between 75 – 80 HRC on the Rockwell Hardness Scale, and that hardness makes sure that the cutting edges are retained sharp for an extended duration; so very few changes and downtimes are needed.
Affordability is another interesting factor. It is because solid carbide can endure high temperatures during operation without losing strength and hardiness and is therefore applicable in high-speed machines where a lot of heat is generated. By this heat stability, the cutting tool is prevented from any distortion which preserves accuracy during and after the cutting operation.
In addition to that, the end mills have also been manufactured in such a way that they have lower tool wear and low vibration cutting ability. Tungsten tungsten is rather fine-grained and hence prevents high rate wear. It is able to cut tough materials and run heavy cutting operations efficiently without premature wear out. This is critical during the machining of materials such as stainless steel and titanium, where excessive tool wear tends to be an issue.
Besides these features, carbide end mills may be designed in different shapes and coated to improve cutting performance for each type of application. The use of titanium aluminum nitride (TiAlN) is frequent since it offers an additional heat and wear resistance for a longer tool life and improved finish surface. These advanced properties make also solid carbide end mills an unavoidable tool for precision machining being extremely effective and accurate.
Advantages of Using Solid Carbide Material
It is no secret that solid carbide material has a number of advantageous features for industrial use. First, the hard, wear resistant solid carbide means that tools can be changed less frequently, therefore making more productive use of time which is otherwise lost when changing tools. Thermally stable material does not let the tool bit lose its sharpness effectively, making the machining of the materials at elevated temperatures and higher speeds possible. Solid carbide is very durable and therefore is used for the machining of hard materials such stainless steel and titanium, which allows for better productivity of the tools even when used rapaciously. Besides, the presence of different shapes and advanced coatings such as TiAlN increases their efficiency, explaining why there is longer tool life and better treatment of surface thereby enhancing the precision and quality of machined components.
Typical Applications of Solid Carbide End Mills
Solid carbide end mills are very popular in many industries because of their strength, accuracy, and useful performance in a multipurpose grain. In aerospace applications, these tools are critical when working with high rigid alloys and composites where cutting back to the exact dimensions and excellent surface finishing is required. Similarly, in the automotive industry, manufacturers utilize carbide end mills for the manufacture of engine parts and transmission systems where consistency and precision are paramount. Furthermore, within the mold and die industry, high precision end mills are employed in the manufacture of plastic injection and casting molds, achieving fine features and close tolerances. They have speed and feed requirements in these applications, but more importantly, the integrity of the material is maintained due to machining.

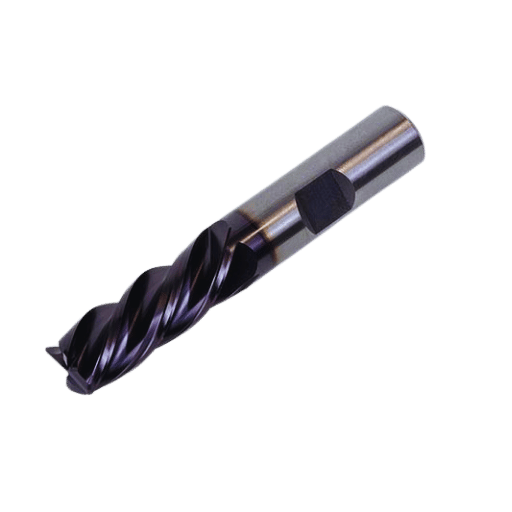

How to Choose the Right 1/2 Inch End Mill?
Understanding End Mill Diameter and Length
The appropriate mill or cutter diameter has a direct bearing on the ability of the tool to cut and the quality of the surface obtained. Increasing the diameter offers stability and strength useful in roughing. Conversely, decreasing the diameter is favorable at the detailing and finishing stage. The length of the tool determines reach and depth of cut. Cutters of smaller lengths are more rigid and accurate while longer ones are necessary in deeper cavities which may lead to some deflection and los of accuracy. It is important to understand how to balance the proper size of the diameter with the reasonable variations in cutter length in this case to be able to achieve optimum machining.
Importance of Flutes in Milling
The number of flutes on an end mill determines both the material removal rate and the final finish of the workpiece to a great extent. Flutes are designed for two functions essentially: the first is the evacuation of turnings, and the second governs the quality of the surface finish. For example, tools with fewer flutes (usually two or three) enable quick removal of chips in plastics such as aluminum hence preventing clogging and increasing the efficiency of roughing cuts. On one edge, if one considers end mills with some four flutes or more, they facilitate easy precision in the finish and cutting of softer metals under vertical machining, especially if a lot of clamping is needed for metal aids surface. Moreover, if one considers cut angles they will structurally affect the fluted tool by increasing the internal and external angles, which attributes to the strengths of the tool making sure precision application is prioritized. Data suggests that, for high-speed operations, a multi-flute end mill can operate at higher feed rates with constant dimensional accuracy, thus influencing productivity and quality in machining operations. Since it is evident that it is the number of flutes that impacts on effective cutting modes, there is need to ensure that the desired machining outcomes are achieved.
Selecting the Appropriate Coating for Your Material
Material selection is of utmost importance with respect to the possible coating to be used. It is very important to consider such characteristics as the composition of the material, atmosphere, as well as the intended properties. Coatings, such as Titanium nitride coating, are often applied as it prolongs the service of cutting tools and lessens erosion, thus is applied for general machining. Tougher grinding applications can demand a Titanium aluminum nitride, or aluminum titanium nitride for example which provides better thermal stability and toughness which is useful for high speed or dry machining applications. For example, in those situations where the welding or build up of chips is observed, the use of low friction coatings such as DLC will help to counteract such situations. Finally, the variation of the performance requirements against the costs of the coating, as well as keeping in mind the desired effect of machining on the particular material, will eventually define the coating.

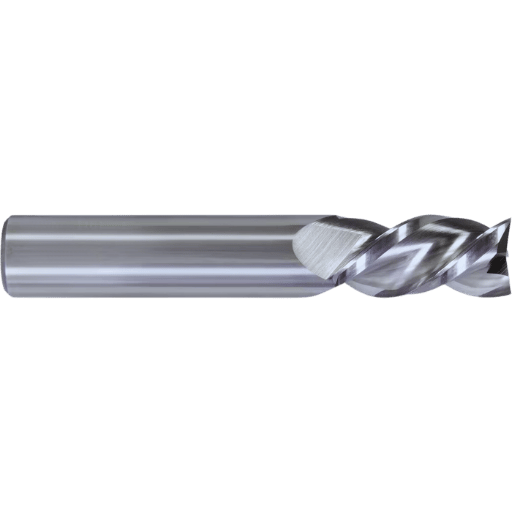

What are the Different Types of End Mills?
Differentiating Between 2 Flute and 4 Flute End Mills
Designing 2 flute end mills for softer materials especially aluminum calls for deeper flute valleys that enhance chip removal. This construction also reduces clogging and improves the feed rate. The fewer the number of flutes, the more the flute space which is important when cutting materials producing long swarf. For this reason, these end mills are much more efficient in cases where quick removal of the chips is required.
On the contrary, 4 flute end mills are used to deal with hard materials like steel. More cutting edges result in a better finish, and higher feed is reached without producing surfaces that are undesired. A higher number of flutes lowers the load per flute, thus resulting in better wear of the tool and a higher quality finish. On the other hand, the a-ha distance between the individual flutes is insufficient to facilitate effective chip removal. This scenario applies to 4 flute end mill where generally smaller chips are being removed so that clogging of the flutes is avoided which would otherwise reduce efficiency.
Looking at the technical parameters, it is clear that 2 flute end mats offer amenable chip clearance and are mainly applied in slotting applications, 4 flute end mats offer better surface finish and are most suited for profile milling. Therefore, the choice of the right end mill must be observed since it must conform to the properties of the material as well as the machining requirements so that the performance is made optimal and the results are exact.
The Role of Corner Radius and Square End in Milling
Tapered and square end mills have different effects on the milling processes the performance of the tools and the quality of the workpieces achieved. The studied pieces include corner radius end mills, which have rounded corners that improve the strength of the tools by allowing for the distribution of cutting forces within the different edges. This design helps especially against chipping or breakage of the tools when used on tough materials hence increasing tool life and enhancing edge finishes. They may also be able to lessen the stress concentration in the workpieces, which prevents the workpieces from deformation. On the other hand, Square end mills have sharp corners and edges ideal for machining internal corners of footings and 90-degree angled ends of grooves Some of them include pocketing applications wherein finishing passes of the tool paths are required wherein the exact sizes are essential. In choosing corner radius versus square end mills, the determining factor should be the required quality of the finish and strength of the material being machined in order to achieve the best outcome on any machining operations.
Specialty End Mills for Aluminum and Non-Ferrous Metals
When it comes to machining aluminum and other non-ferrous metals, one important consideration in coming up with successful and efficient processes is the use of the right specialty end mills. More often than not, these materials are usually soft and malleable and, therefore, require some specific features in the tools in order to help clear them up and bring out a perfect surface finishing. Among the first ones is the necessity to utilize end mills with high helix angles in order to improve chip removal and minimize material welding. In addition, the use of tools with well-polished flutes and good coatings, such as TiB2 or ZrN coatings, will enhance the effective use and lifetime of the tools by providing a smooth surface and high wear resistance components. The geometry should also accommodate an optimum ratio of cutting force and cutting speed, which will answer the challenges in the machining with the presence of aluminum and non-ferrous metals. Drawing upon such qualitative sources from industry experts, this technical approach illustrates the need to adapt the selection of tooling information to the features of material aiming to enhance productivity and accuracy of machining processes.

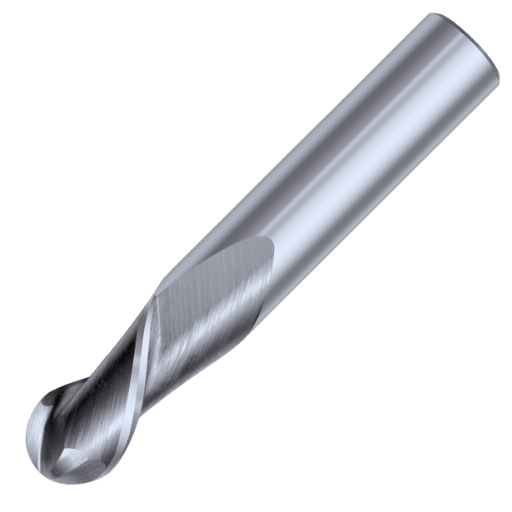

How to Maintain and Care for Your End Mill?
Best Practices for Cleaning and Maintenance
Proper maintenance of end mills is crucial if one has to increase their years of use as well as efficiency. It is advisable to clean the end mills after every use if dust and chips can be eliminated using an air compressor or a soft brush. In this case, it is necessary to steer clear of strong solvents which may spoil the edge tool coating in question. Every so often, it is vital to look for blunting, chipping, or other loss of the edges on the end mill, which indicates it is time to replace it. It is important to always keep end mills dry as well as clean and, when possible, off contamination risk by placing them in containers or individual pockets so as to minimize exposure. Lubrication should also be applied to ensure that it works well during the next application.
Tips for Prolonging Tool Life
- What factors influence the cutting speed and feed rates: There should be allowances for the factors such as cutting speeds and feeds appropriate to each material type, so as to reduce the destruction or wear of tools. The data shows that 20-30% tool life can be obtained by operating 10-15% below the maximum limit provided for, by the manufacturer.
- Use of Coolants: There is a limitation of thermal stresses on the tool when good coolant systems are used. Well cooling measures can enhance the lifetime of the cutting tools by nearly 50% by decreasing their wear rates.
- Tool Coatings: The improvement of the tool and its equipment through selection of appropriate coating for the work piece is of great importance. Special coated end mill tools such as TiN, TiAlN or TiCN coating demonstrates that these end mills increase the resistance to wear and heat thus the service life of tools compared to uncoated tools is improved up to 1.5-3 times.
- Condition Monitoring: As an effective tool for controlling these conditions, compliments of vibration analysis and acoustic emission, it tends to delay the initial inception of wear artifacts. Monitoring is essential as any errors associated with any work will lead to a disastrous breakdown and has been linked with lowering the costs of replacing tools by 25–40.
- Preventive Maintenance Schedules: Provisions should also be made for carrying out a preventive maintenance schedule depending on how often a tool is used and the working conditions as well. Good maintenance records and logs help one in predicting the life span of tools, when they will break down and when they should be removed for further usage.
Common Mistakes to Avoid
- Manufacturer Guidelines Ignorance: Ignoring manufacturer’s instructions on how to use or service the tool remains the most common mistake made in every workplace. Such recommendations if observed would ensure the tools are functioning at an optimal level for a long time.
- Failure to Schedule Tool Re-grinding: The postponement in the necessary tool re-grinding schedules will also have adverse impacts such as great performance drops and wear rise among others. In such a situation, it is advisable to come up with a plan of how often and when they will be re-ground.
- Inadvertent Tool Setup: An incorrect tool setup particularly during clamping, aligning and using can transfer shock and stress within the tool leading to premature failures. Proper setup of timing tools is also very important when it comes to tool accuracy and its operational life.

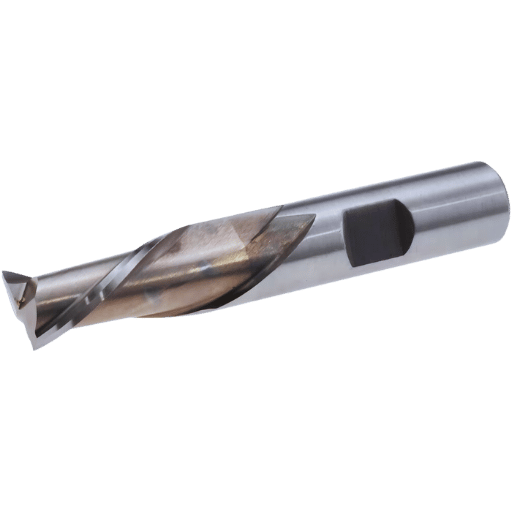

Where to Purchase High-Quality 1/2 Inch End Mills?
Understanding Product Specifications and Catalogs
- Product Material: Any end mill cutter requires the consideration of the grade and type of material. High-speed steel or carbide would be acceptable in terms of strength and stiffness. This is the commonly encountered type of material used in 1/2 inch end mills: they have a good wear and performance.
- Coatings: Some tools also use coatings to increase tool wear resistance e.g. TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride).
- Flute Count: A 2 to 4 flute count may be selected considering the workpiece material and removal rates. With this more number of flutes the finish is smoother.
- Cutting Diameter and Length: Measure the cutting diameter and the overall length of the tool so as to see whether they match the intended application.
- Helix Angle: Checking on the helix angle for your operation is important. For rough work a simple 30 degree angle is used while for moderate operations sharp angles are used which facilitates easy chip removal.
- Supplier Verification: From the suppliers catalog check for the products originality in accordance to industry, safety, standards and warranty.
Navigating Online and Offline Retailers
While shopping in this way, stick to known marketplaces such as Amazon, MSC Industrial Supply, or McMaster-Carr. They have a wide range of products which are marked according to specifications and include reviews from other customers that assist in making a sound decision. Check the credibility of the sellers and the safety of their payment methods as well as their return policies. For offline purchases, look for the relevant industrial tool shops or authorized suppliers. Talking to the sales staff may help to know the particular details regarding the products and their uses. Moreover, buying items personally means there is satisfaction in terms of how the items look, as they can be seen and even be touched.
Factors to Consider in Price and Shipping
In practicing price evaluation, the primary price should always be weighed against what is given out in terms of features and specifications so as to get good value for money. Be careful to avoid such; such will normally reflect unusually low pricing compared to what is available in the market, and such prices suggest very low quality or fake products. For certain types of items, it may apply to consider bulk purchases so as to save some money and also for long-term consumption.
Shipping considerations include cost as well as speed. Become familiar with the shipping options, and the highest priority should be placed on those that will allow tracing and insuring the items shipped. Don’t forget to look at the indicated delivery windows, even if this is not relevant at this moment. Well, in the case of international orders, check for any additional fees like customs duties. Some large retailers will offer free shipping for orders over a certain sum or memberships that come up with shipping benefits. Do not forget to go over the shipping policy of the retailer fully as well to prevent any surprises in the form of unnecessary charges or delays.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is a 1/2-inch solid carbide end mill?
A: A 1/2 inch solid carbide end mill is a type of cutting tool usually employed in CNC machining and milling. It has a shaft diameter of 1/2 inch and is composed of solid carbide which is efficiently designed to withstand wear and tear.
Q: What can be said of a carbide end mill as compared to an HSS end mill?
A: For starters, carbide end mills can withstand more wear and cut through harder materials compared to HSS end mills. These end mills will easily hold an edge for a long range of use and work well under extreme conditions.
Q: What are the advantages of using a solid carbide end mill for non-ferrous cutting?
A: Solid carbide end mills perform outstandingly when cutting non-ferrous materials like aluminum or copper. They improve stock removal, extend the tool life, and improve cutting geometry, leading to better finishing.
Q: What does the term ‘LOC’ mean with respect to an end mill?
A: LOC means Length of cut. This is measured as the length of the edge of the parts making the end mill that is employed in any machining operation.
Q: What geometries can286 be cut into using drills made from cemented carbide?
A: Carbide end mills are available in various cutting geometries including 2 flute square end, 3 flute, ball nose, and chamfer end mill. Each geometry has its own application and is good for certain materials and machining situations.
Q: Is there any other application for the 1/2 inch solid carbide end mill other than milling of metals?
A: Yes, a 1/2 inch solid carbide end mill can be applied in different forms such as slotting and profiling and even drilling, by its availability. Because of its sturdy nature, it is applied in several machining works.
Q: How do you go about selecting end mills for a specific job?
A: When selecting an end mill, enable the associated rem or recommendations to include factors related to the type of material to be machined, finish required and type of cut and machine to be operated. Where applicable cutter dia, LOC, OAL and flute type of end mill should correspond with performance of the application.
Q: What is the function of the shank of the end mill in the machine?
A: The shank is the non-cutting portion of the end mill butt that is attached to the tool holder of the machine cutting tool by a chuck or collet. It also provides anchorage and site support; hence, performance cutting can be accurate.
Q: Where can I order related products and accessories for my end mill?
A: Related products such as tool holders, collets, and additional end mills can be found through machining tool suppliers and distributors. There is always an assortment of high-performance tools for your machine available at such tool suppliers.
Q: How do I make the order for a solid carbide end mill?
A: You can make an order for a solid carbide end mill from online retailers of machining tools or purchase directly from the manufacturers. All that needs to be done is to put the required material in the cart and complete the transaction.
