In the precision metal cutting domain, the selected equipment plays a significant role in determining the quality and effectiveness of the machining operations. Diamond-coated finishing end mills are essential in ensuring proper surface roughness is reached within specified tolerances. This article aims to encompass all available kinds of high-performance finishing end mills concerning their design features, prototype materials, and scope of application. We will cover new technologies that improve their characteristics and optimal strategies for their selection and usage. With a basic knowledge of these tools, machinists and engineers can adjust their working patterns to achieve optimal project results.
What is a Finishing End Mill?
Understanding End Mill Designs
Finishing end mills are machining devices used for metalworking applications requiring high surface finishes with close tolerances. They are usually designed and made shorter in length than standard end mills to minimize deflection and increase operability. The structure of these devices usually contains several flutes, enhancing the chip-removing ability and making cutting more efficient. In addition, there are finishing end mills in TiN or TiAlN or diamond-like carbon coatings with improved wear and thermal respectability. In their study of such design features, the machinists can better determine the type of end mill that would be suitable for a given machining operation and, therefore, improve efficiency and extend the tool’s service life.
Purpose of Finishing End Mills
Finishing end mills are mainly employed to obtain the best possible surface finishes and dimensional accuracies in machined parts. Such tools are used towards the last phases of the machining process, the purpose of which is to smooth the surface of the workpiece so that it can be exact and rise to high specified standards. Manufacturers can reduce surface roughness and austere tool marks and even hold a dimensional tolerance by applying them to finish mills, which is usually very significant in most high-precision works. All in all, and without a doubt, the efficient use of these end milling cutters improves the final product. It decreases the loss in durability and efficiency of the final assembly after finishing the machining of the structure.
Difference Between Roughing and Finishing
Roughing and finishing are consecutive and separate machining processes, each performed for a specific goal. Roughing processes aim to remove the maximum amount of material quickly when, usually, only a gross shape is desired. At this stage, the tools used can withstand higher cutting forces, and mostly higher feed rates and depths of cut are used to enhance efficiency. On the other hand, finishing processes are oriented toward improving surface characteristics and meeting the dimensional requirements. This phase mainly employs particular types of endmilling tools known as finishing end mills, which can mill finer surfaces more accurately at lower feeds and shallower depths of cut. To choose the proper tooling and improve the production processes, it is necessary to understand the similarities and differences of these two particular processes.
How to Choose the Right Finishing End Mill?
Factors to Take into Account
When the machinist is selecting a finishing end mill, several key parameters must be considered in every way as follows to achieve the required end in the course of machining:
- Material of the Workpiece: The hardness and the material composition of the workpiece have a significant bearing when deciding on the end mill to use. For example, hard materials like titanium or stainless steel will require the use of carbide end mills to ensure that they can withstand wear and heat due to the high rate of material removal processes.
- The geometry of the end mill: Cutting edge geometry, helix angle, and the end mill’s length all significantly influence the quality of the surface finish obtained. Chips are more easily ejected, and vibrations are decreased by introducing a higher helix angle. Further cut length may be necessary for a deeper cavity, probably for slot end mills.
- Coating: Using coatings such as TiN (Titanium Nitride) or TiAlN (Titanium Aluminium Nitride) further improves the efficiency of the end mill by reducing the frictional resistance and increasing the wear life. This is more advantageous, especially in the recent commercialization of high-speed machining.
- Cutting Parameters: Effective cutting parameters such as the feed rates, spindle speeds, and depth of cut need to be determined in line with the specific finishing requirements and the material. These parameters affect the surface finish attained and the life of the tool.
- Tolerances and Surface Finish Requirements: The tolerance and surface roughness parameters should be within the specifications. Endmills with a finishing design are made for specific needs; hence, using one that meets these requirements would produce better quality end products, especially with the varied coatings.
- Machine Tool Capability: The machine tool that is in use, such as its spindle horsepower, its rigidity, its control system, etc., will determine which finishing end mill will be appropriate for use. More powerful machines can take up more excellent cutting conditions.
Considering these factors, engineers and manufacturers can choose to finish end mills with proper accuracy and within the required tolerances and quality for the final components.
Types of End Mills and Their Uses
Every end mill comes in its shape and cutting size, with the purpose of a particular machined operation. Below are some of their main types and the purposes they serve:
- Flat End Mills: These are some amusingly designed end mill types. The end mill has a flat horizontal bottom and vertical edges that assist it in producing a flat-level surface and is frequently used in face mill cutting operations.
- Ball End Mills: Ball end mills are well-rounded at the end, and they can engrave shaped designs for making complex shapes. They are mainly applied to machining components made in 3D and molds and dies.
- Corner Radius End Mills: These end mills have a corner radius at the tip of the cutting edge. The advantage of these end mills is that the strength and quality of the finish are improved. They are popular in crucial applications like aircraft structures, which require avoiding sharp edges and corners.
- Tapered End Mills: Their shape is tapered and can only perform cuts at specific angles, making it useful when working on an inclined plane and even cutting a curve.
- Keyway End Mills: These are end mills that have an internal groove which is known as a keyway; the keyway end mills are capable of cutting internal grooves, known as keyways, with controlled end mill width and depth, which is necessary for placing keys in mechanical unions.
Choosing the suitable end mill type according to the specific purpose helps the manufacturers maximize machining efficiency and improve the surface quality of their components.
Importance of Material and Coating
End mills owe their functionality, durability, and the overall quality of the workpiece produced to the type of material and coating used. There is a direct correlation between the hardness, toughness, and wear resistance of the end mill and the choice of the substrate. HSS, carbide, and cobalt are the common materials used in end mills, which are meant for different purposes since they have other benefits. For example, carbide end mills are much more complex than high-speed steel tools and do not readily wear out; they can be used at very high speeds.
Some standard coatings include titanium nitride, titanium carbon nitride, and aluminum oxide, which help reduce friction, wear, and abrasion in contact with the tools. This wide range of coatings helps minimize cutting exerted in various machining processes and thus improves the quality and lifetime of the tool. It is, therefore, imperative to choose the material and coating of the end mill in a way that would enhance the machining operations, the frequency and costs associated with tool replacement, as well as the accuracy of the manufactured products.
What Are the Benefits of Using Solid Carbide End Mills?
Extended Tool Life
One type of tool with a perceived lifespan longer than many others is called the solid carbide end mill, grappled in various performances. Those engaged in machine engineering ought to be well aware of this as it is the main reason for cutting tool-integrated cost-efficiency programs. This is primarily due to carbides’ chemical and physical properties, which make it possible to manufacture tools that operate at much faster cutting speeds and hotter conditions than high-speed steel tools. Solid carbide end mills also have the additional benefit of being sturdier, showing high resistance to scratching or wearing out of the cutting edge, thus preserving the cutting edge over a long duration. Improving the design of these cutting tools is also an essential factor in their life. Tools with proper design prevent vibration during machining, which degrades the cutting tools; hence, performance is improved. These new solid carbide end mills can improve manufacturers’ productivity and efficiency and reduce tool control and replacement costs.
High Performance in Metalworking
High-performance solid carbide end mills partake in this domain and are constructed for metalworking applications. These are designed to achieve very high cutting speeds and feed rates, thus resulting in less time spent removing material and further increasing productivity. The sophisticated geometries and coatings of the modern high-performance end-mills lower the cutting forces and support better evacuation of chips that enhance surface finish and precision in dimensional features, especially with the two flute design. These tools are accurately made to ensure good stability during machining and avoid tool vibration and chatter. In this case, manufacturers receive the advantage of shorter cycle times and longer tool life and, hence, operative efficiency in production settings that require a lot of bulk manufacturing. Integrating such high-performance solid carbide endmills over various metalworking processes is likely a pliable improvement, and significant cost benefits would be realized.
Precision and Surface Finish
Maintaining accuracy and high-quality surface finish during machining operations is essential so that the fundamental components function well and look great. When it comes to tolerating tolerances and achieving smooth finishes, solid carbide end mills contribute significantly. The finely sharpened cutting edges of end mills ensure that the machining process is precise, thus resulting in a shallow range of dimensional changes. When suitable thick coatings such as TiAlN or TiN are also implemented, they help to protect the surface of the workpiece spindles from damage due to friction and overheating, which might lead to distortion or wear of the tools.
Moreover, high-speed machining (HSM) and adaptive machining strategies reinforce the performance of solid carbide tools. Such methods optimize the cutting parameters and allow better chip evacuation and cooling, improving surface quality. Overall, such a combination of high-level machining accuracy and high-quality surface leads to functional improvement of the component and minimizes secondary processes after machining, such as polishing or grinding. Finally, combining solid carbide end mills with advanced machining technology sets a standard for precision manufacturing in many industries.
How Do Finishing End Mills Improve Surface Finish?
Role of Flutes and Coating
Finishing end mills have a particular flute design that helps control the machined parts’ surface finish. The number of flutes, which varies from two to four, affects the chip load and rate of material removal in roughing vs. finishing machinings. The supposed principle of a few flutes is simple: allowing more chips to be ejected instead of just occupying or packing the resorted internal space, thus facilitating the creation of smoother interior surfaces, particularly in roughing vs. finishing machining operations. On the other hand, more flutes work well in finishing operations since they provide a better and finer cut.
Moreover, more feature of these finishing end mill cutters is the use of coatings such as titanium nitride (TiN) and diamond-like carbon (DLC), which also enhances the durability of the cutters as well as the surface finish. Fewer tools mean less friction, resulting in less heat generated while cutting, thereby reducing the tool’s wear and thermal effects on the workpiece. It makes it much easier for the tool to maintain cutting performance and surface quality of the workpiece for a long time during heavy cutting operations. In all machining operations, surface finish cannot be achieved without the correct flute design and selection of the flute coatings.
Techniques for Achieving a Smooth Finish
The following measures or techniques constitute the supplementary works, complementing and improving the machining method and the tools utilized, ensuring an excellent smooth finishing of machined surfaces. First, optimal feed rates and spindle speeds should be adjusted to prevent vibrations and improve surface quality; such adjustment is especially useful in conventional machining. Moreover, appropriate for internal end-first milling angles with suitable coatings and other design features, as outlined earlier, can improve the final finish even further.
On top of that, the correct selection of cooling fluids or lubricants can positively influence the result of the procedure. These fluids cool the tool and the workpiece, allowing for less thermal distortion and better lubrication conditions, thereby enabling better cuts. Finally, other methods, such as abrasives media, sanding, and honing, can be carried out after the main machining processes are applied. In conclusion, the combination of these practices can significantly improve surface finish and other components that affect precision for performance in the final use of the components.
Comparison with Traditional End Mills
Comparing modern advanced end mills with traditional end mills, many advantages arise. End mills of conventional design are mainly produced with high-speed steel (HSS) and carbide and perform generic tasks, but most of the time, they are not furnished with the particular model and coatings included in the make of modern end mills. For example, advanced end mills could consist of complex geometries such as multi-fluted endmills, which enhance the quality of work done by strengthening the swarf removal rate. This directly improves the speed of machining and reduces the cycle time, which is essential in the present production era.
On top of this, with the introduction of extra requirements for the effectiveness of tools, the increase in size and the application of such coatings strongly hampered the performance of tools with selective corrosion-resistant coatings. These coatings, such as TiAlN or TiN, can also provide a considerable amount of wear resistance in addition to thermal protection, which helps them endure the high temperatures that occur during the cutting process. In classic end mills, however, more rapid tool wear is often suffered, and cutting edges have been rendered less effective under similar conditions. Lastly, it can be summarized that the available end mill technology corresponds to the improvements in material science and engineering, making the current end mills superior for precise machining operations.
What Are the Common Applications of Finishing End Mills?
Types of Workpieces
Finishing end mills are appropriate for many workpieces, especially when high accuracy and good surface finish are required. Typical uses comprise:
- Metal components: The finishing end mills find most applications in metals, including aluminum, steel, and titanium. They bring forth intricate features critical for parts such as automobiles, fittings in aerospace, and medical equipment, where each tolerance is paramount.
- Plastics and Composites: Non-metal endmills can effectively erode composite and plastic materials. In the electronics and consumer goods industries, sintering end mills mold casings and housings contour to quasi-circular and other complicated surfaces.
- Woodwork and Floor Finishings: For conventional woodwork applications, finishing end mills accentuate the detailing in cabinetry and ornamental features in the furniture. They can also be applied in flooring to produce sleek, sharp, clean, functional, appreciable edges and planes.
In short, finishing end mills have expanded their applicability, increasing their usage in various industries’ manufacturing operations.
Use in CNC Machining
The finishing end mills are integral parts of CNC (Computer Numerical Control) machining, and all the aspects revolve around the accuracy and repeatability of the process. These tools are used to improve the surface finish and control the boundaries of the machined parts, which are invariable requirements in numerous intricate applications. Finishing end mills may also be employed in the machining steps of the CNC milling processes to finish the formed surfaces of the machined parts after roughing operations that might not meet the expected standards. Also, the use of finishing end mills in CNC machining relatively cuts down the cycle time of post-processing, which improves the productivity and efficiency of the manufacturers. Also, as CNC machines are predetermined for obtaining optimal cutting parameters, proper utilization of advanced finishing end mills will, in turn, efficiently achieve the desired outcomes, and tool wear will be kept to a minimum.
Industry-specific Applications
Finishing end mills are widely used in various practices because they improve surface quality and accuracy in machining made parts. In the automotive field, such tools are necessary for producing engine systems and other drivetrain components, and perfect finishes are essential for reliability and longevity. Finishing end mills are widely used even in the aerospace industry, where turbine blades and fuselage parts are subjected to rigorous weight and performance requirements. Also, in the case of the medical devices industry, where parts are often precision machined, these medical devices are bound by specific regulations, making finishing end mills of high quality essential for surgical instruments and implants that provide functionality and safety. These and many more different applications in various industries highlight how finishing end mills are crucial to achieving the desired quality of manufactured products by multiple sectors.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is the difference between roughing and finishing end mills?
A: Roughing end mills are efficient in quickly removing a vast amount of stock, but they leave behind a very rough surface. Finishing end mills are used for cutting with precision and providing surface finishes where needed. It is noted that roughing end mills have fewer flutes and large chip pockets, whereas finishing end mills have more flutes that place the teeth closer to each other for more finish. Here’s the difference between roughing and finishing in machining.
Q: Describe a roughing end mill and how it differs from a standard one.

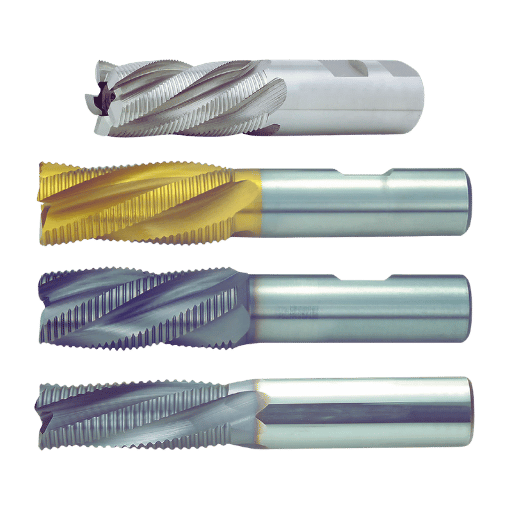

A: A roughing end mill is a type of cutter explicitly used to cut out or shape large portions of material as quickly as possible. It usually consists of 2-3 flutes or less and has more profound, broader valleys within the flutes to provide some accommodation for big chips. This cutter will be operated for rough cuts when a large volume of material is removed from a component. It is instrumental in the preliminary machining stage to allow for subsequent finishing processes.
Q: What materials can high-performance finishing end mills be used on?
A: High-performance finishing end mills can work on various materials, such as stainless steel, aluminum, and titanium, among other alloys. Most end mills are said to have some coating, such as AlTiN or cobalt, which enables their effective operation at high speeds and temperature turnover on various materials.
Q: How does the number of flutes affect an end mill’s performance?
A: The number of flutes on an end mill affects cutting action and finish quality. Generally, fewer (2-3) were more effective in the rough end milling tasks, where many materials were volleyed out in a short duration. The relative trouble came in increases of more than four flutes suitable for finish end milling and satisfying the required surface finish quality. The choice depends on the workpiece material and the desired outcome.
Q: What are the advantages of using carbide-cutting tools for end mills?
A: For end mills, their superiority in wear resistance, increased hardness, and better retention of cutting edges at high speeds and temperatures ease the cutting operations of biscuit tools. Coat, which works best for carbides. These properties result in better, faster material processing, extended life of the tools, and proficient machining of troublesome materials like stainless steel compared to HSS tools.
Q: Why do users choose to coat their end mills?
A: Coatings of end mills like AlTiN, TiAlN, or TiCN help improve the endmill’s mechanical performance and service lives. They help to improve the hardness, the wear resistance, and the capability of heat management. This allows the tools to last longer without needing re-grinding, work at higher rotational speeds, and perform in difficult machining conditions, thus enhancing productivity and tool life.
Q: What factors should I consider when choosing between OEM and aftermarket end mills?
A: When using end mills of the OEM or after-market, the key aspects to consider include the price, quality, availability, and the rational use of the tools. OEM tools are generally of good quality and give the best output for the specified machines offered, though they are more costly. Traver Tools and other aftermarket manufacturers produce and sell quality end mills that are available at a relatively reduced price, thereby minimizing the cost without compromising the quality required for the different operations.
Q: In which area do end mills have good advantages that need to be exploited in more detail?
A: There are three areas to concentrate on to improve the end mill characteristics. First, you should employ a roughing end mill to remove as much material as possible rapidly. This cutter is a description of the type of end mill cutter that is developed to ‘hog’ out materials. Then, a finishing end mill enables one to obtain the required surface finish and dimensional accuracy. Using the right tool for the correct stage is essential to avoid long periods of ineffective material removal and decrease the final quality of finished parts while extending the life of the tool and its productivity.
